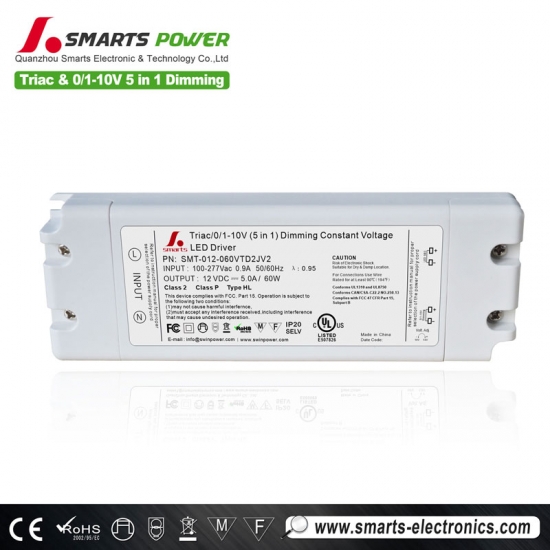

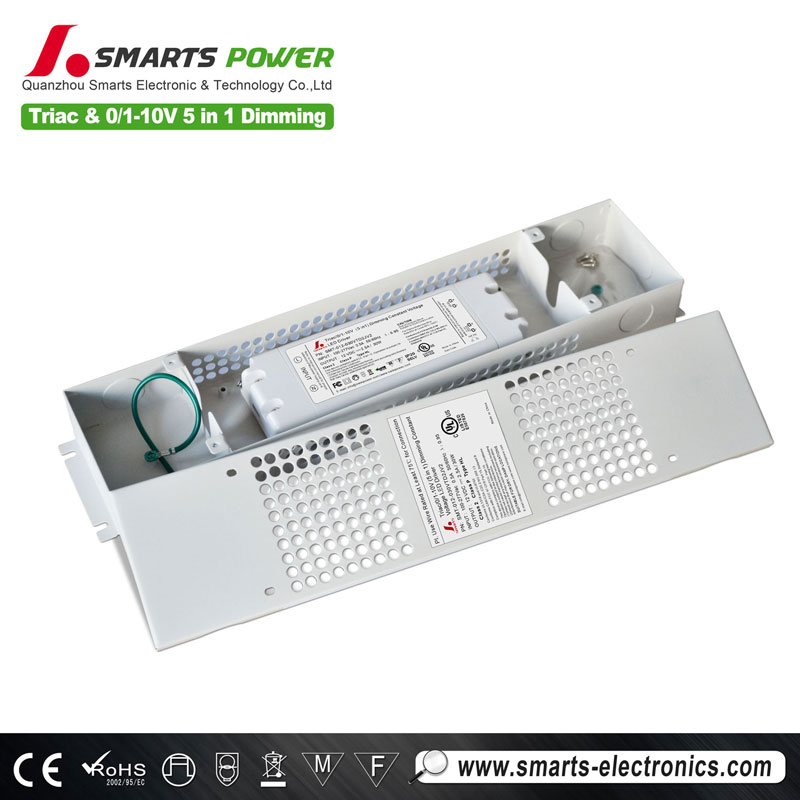

120v to 12v led driver for led strip 50w 60w dimmable power supply with junction box
120v to 12v led driver 60w which are commonly used in home and commercial Noralighting 12V comfort dim tape lights, and widely available includes over current and short circuit protection, and efficiency of 92% and higher allows this dimmable led driver to operate at low temperatures.
Product parameters
model
SMT-012-060VTD2JV2
SMT-024-060VTD2JV2
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
THD(Typ. ) @ full load
<20%@120VAC &277VAC
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.98@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
83%@120VAC 85%@277VAC
83%@120VAC 84%@277VAC
AC Current（Typ.）
0.9A
Inrush Current （Typ.）
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
Leakage current
<0.50mA
Protection
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
About 0.35Kg
Size
178*61*24mm（L*W*H）
packing
Carton size: 290*215*140mm , 20PCS/CTN
（L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

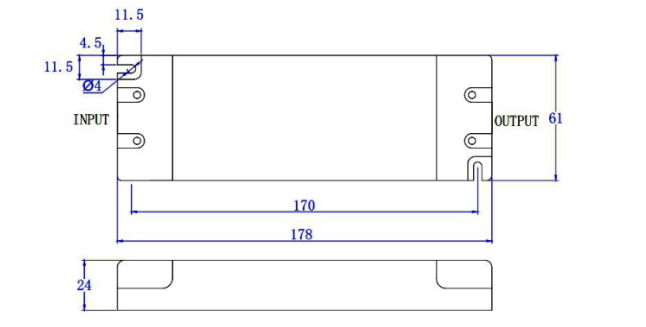

Mechanical Specification
Input with terminals Live(L) and Neutral(N) wires to be connected AC;
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connections.
Compatible Strip Lighting Type
High CRI up to 98, high TLCI up to 99+, low energy consumption of 1.5 Watts/ft, low output up to 125 lm/ft (411 lm/lt, available in 12V or 24V input, fully dimmable ASPECT strip lights, work well with 120v to 12v led driver.
