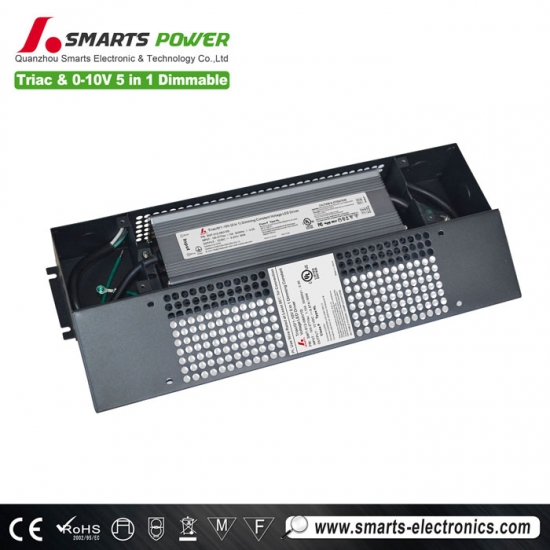

Smarts 12VDC 80w PWM dimmable transformer for led lights

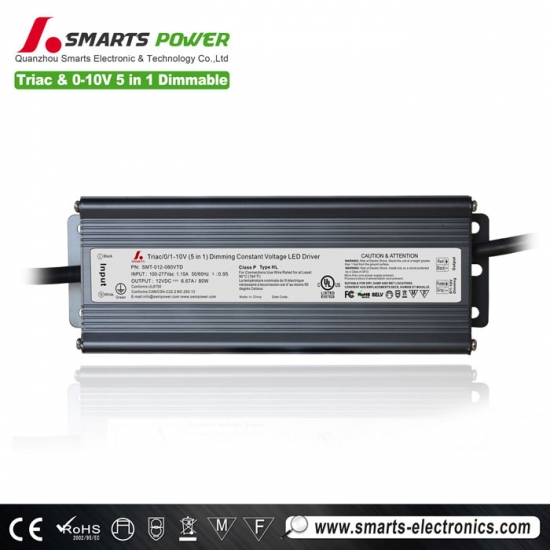

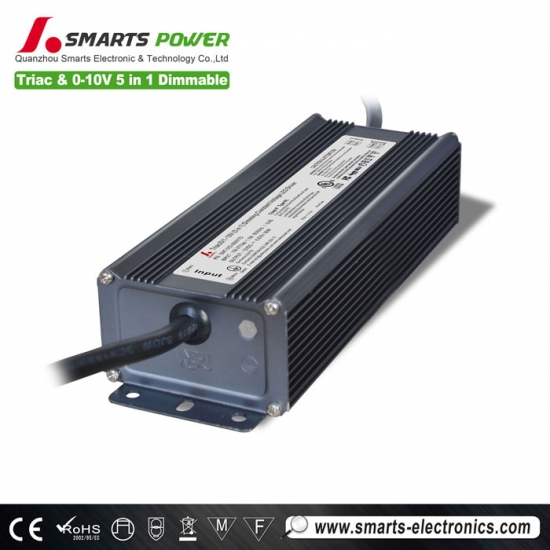

The body of the dimmable 12v transformer is unique in that it is extruded aluminum. A variety of optic packages direct the light where it is needed. Built to last, the drivers for years of sustainable ownership.
Specification
|
model |
SMT-012-080VTD |
SMT-024-080VTD |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
6.66A |
3.33A (class 2) |
|
|
Rated power |
80W |
||
|
Input |
Voltage Range |
100~130V AC/170～265V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.95/110V,PF≧0.96/170V,PF≧0.95/220V,PF≧0.93/265V |
||
|
Full Load Efficiency（Typ.） |
80%@120VAC 82%@277VAC |
82%@120VAC 85%@277VAC |
|
|
THD(Typ. ) @ full load |
<20%@120VAC &277VAC |
||
|
AC Current（Typ.） |
1.15A |
||
|
Inrush Current (Typ.) |
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC |
||
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Load |
≤120% constant current limiting, auto-recovery |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 + UL1310 , CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
Others |
Weight |
1.1Kg |
|
|
Size |
230*70*43mm(L*W*H) |
||
|
packing |
Carton size:340*275*170mm , 10pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

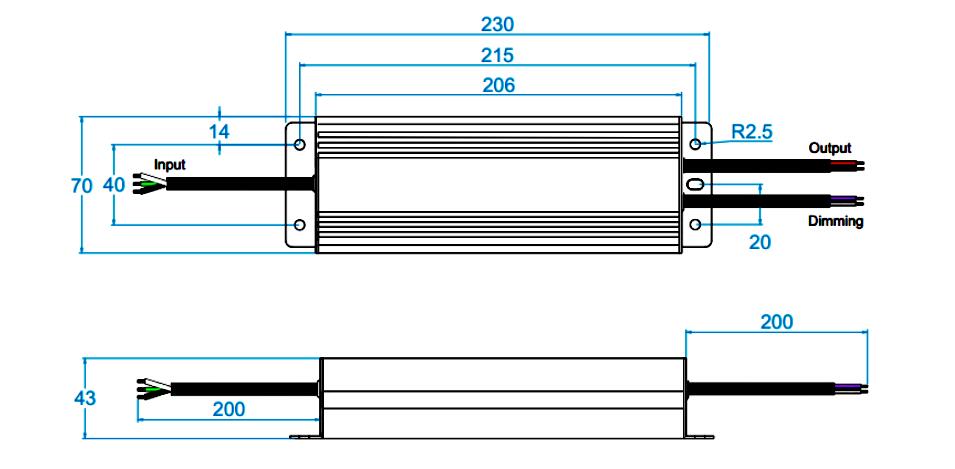

Mechanical Specification

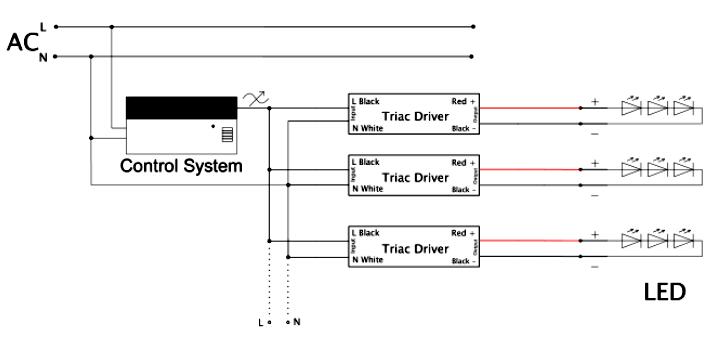

Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
