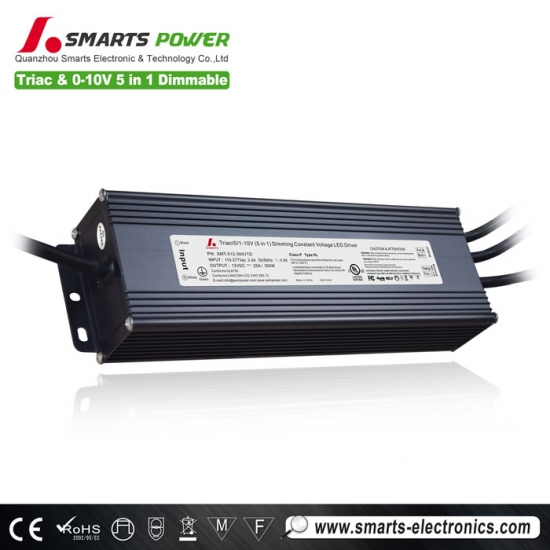

5 in 1 dimmable power supply 12v 300w for led strip lights
SMT-012-300VTD is led strip power supply 12v dimming. It is 110-277VAC Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmable constant voltage LED driver + PWM signal. It is able to fix with American lighting's downlight.
Product parameters
|
Model |
SMT-012-300VTD |
SMT-024-300VTD |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2% |
±1% |
|
|
Rated current |
25.0A |
12.5A |
|
|
Rated power |
300W |
|
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.97@277VAC |
|
|
|
THD（Typ.）@ full load |
<20% |
|
|
|
Inrush Current （Typ.） |
20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC |
|
|
|
Full Load @Efficiency(Typ.) |
86%@120VAC 88%@277VAC |
|
|
|
AC Current（Typ.） |
3.4A |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over load |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
|
Over Current |
≤1.4*I out |
|
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20 - 95%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 , CAN/CSA-C22.2 No.250.13 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|
|
Others |
Weight |
1.7Kg |
|
|
|
Size |
276*78*47mm (L*W*H) |
|
|
|
packaging |
Carton size: 390*310*185mm , 10PCS/CTN 385*335*200mm 20PCS/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. 4. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

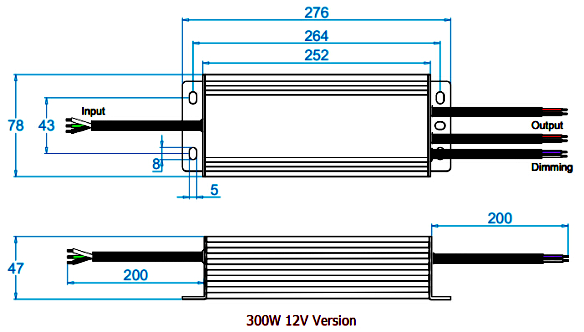

Mechanical Specification

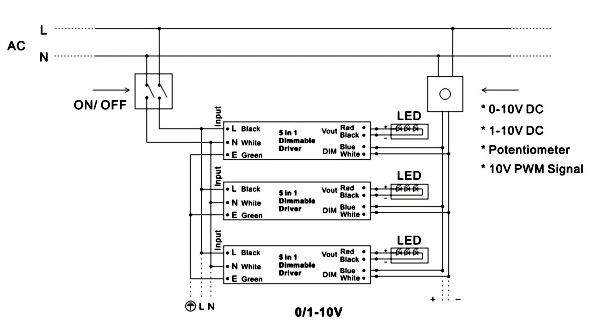

Connecting solution:

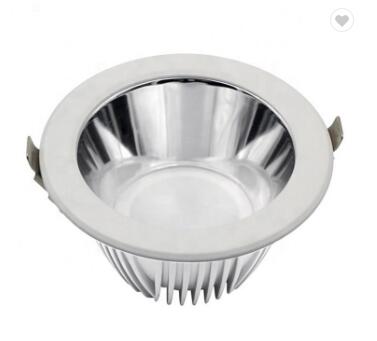

Compatible Lighting Type
Our 300w 5 in 1 dimming led driver is compatible with EURI LIGHTING’s Ceiling lighting.
