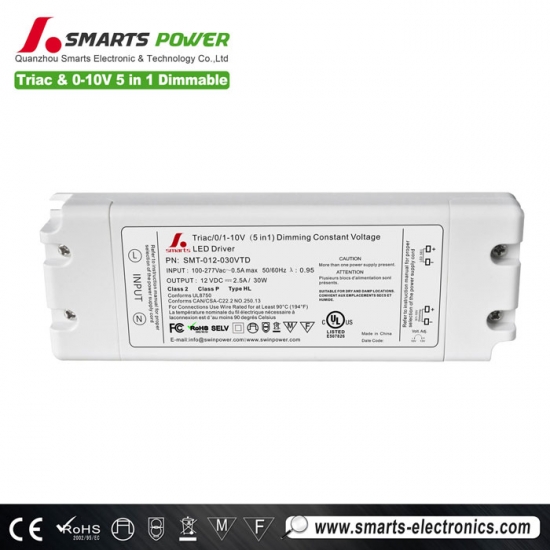

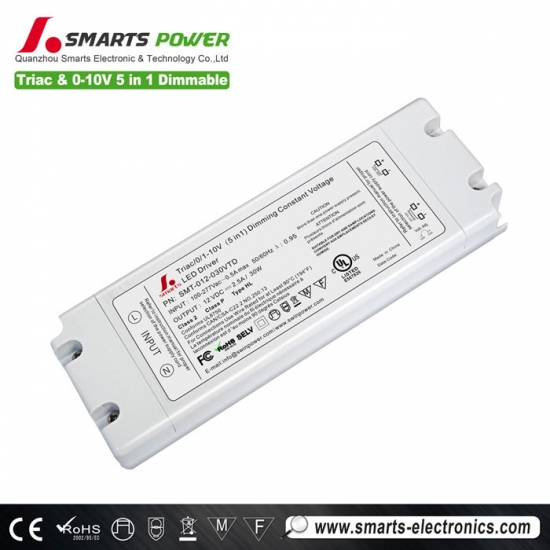

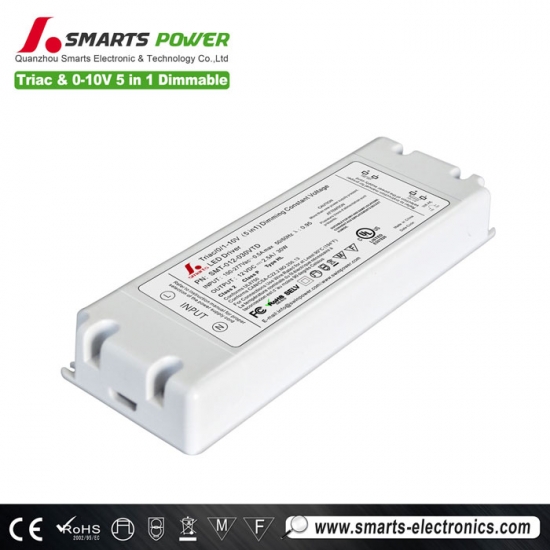

277VAC 12VDC 30W dimmable electronic transformer small size
The 12v small led transformer is compatible well with the led bulb is not included in the package. With an E26 sized screw base, the bulb can be installed as desired. To get a better lighting effect, we suggest you using LED bulb 10W-12W, energy saving bulb 12W-20W.
Specification
|
model |
SMT-012-030VTD |
SMT-024-030VTD |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
2.50A |
1.250A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
30W |
30W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
THD(Typ. ) @ full load |
<20%@120VAC &277VAC |
||
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.99@120VAC 0.98@277VAC |
0.99@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
79%@120VAC 80%@277VAC |
79%@120VAC 80%@277VAC |
|
|
AC Current（Typ.） |
0.5A |
||
|
Inrush Current （Typ.） |
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
Working Humidity |
20 - 95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
Others |
Weight |
About 0.25Kg |
|
|
Size |
155*54*20mm (L*W*H) |
||
|
packing |
Carton size: 350*240*130mm , 40PCS/CTN（L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

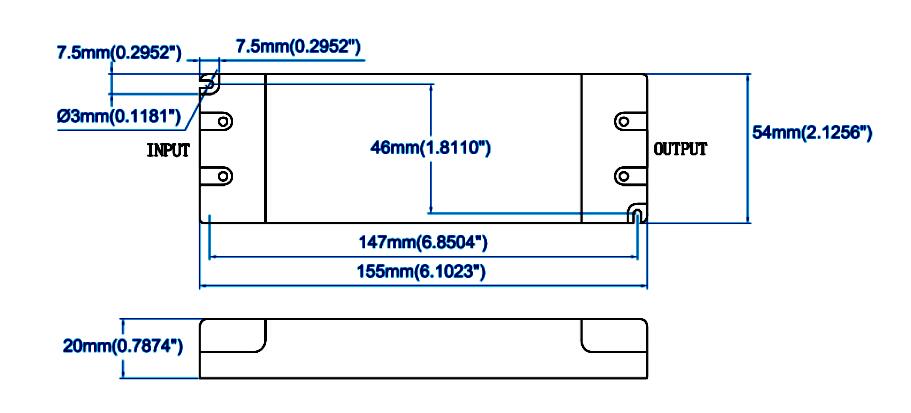

Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Compatible LED strip lighting
When it comes to dimmable electronic transformer, they are the perfect lighting solution for anyone who's looking for an easy and quick installation while keeping the high quality lighting that Flexfire LEDs is known for.
