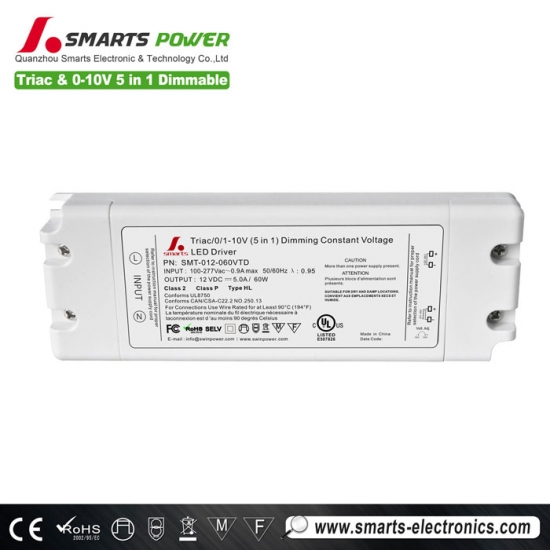

triac 0-10v 60w 12v LED lighting transformer 5 in 1 dimmable led driver
There are various of LED lighting project need the 12v LED lighting transformer to be paired with their 12vdc LED tape, LED display and LED bar light from Lemenstar LEDs.

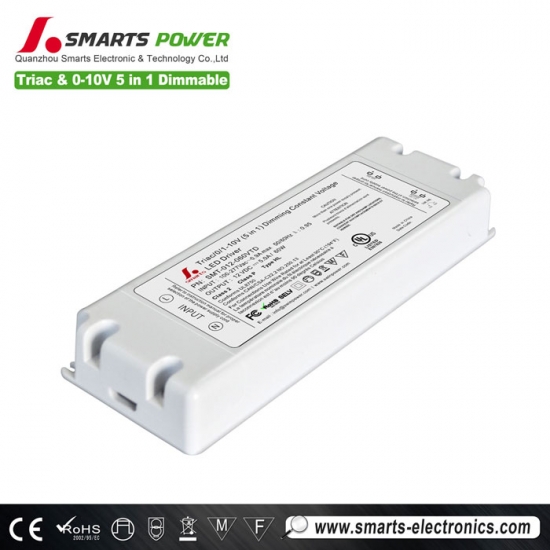

Specification
model
SMT-012-060VTD
SMT-024-060VTD
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
THD(Typ. ) @ full load
<20%@120VAC &277VAC
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.98@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
83%@120VAC 85%@277VAC
83%@120VAC 84%@277VAC
AC Current（Typ.）
0.9A
Inrush Current （Typ.）
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
Leakage current
<0.50mA
Protection
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
About 0.35Kg
Size
178*61*24mm（L*W*H）
packing
Carton size: 290*215*140mm , 20PCS/CTN
（L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

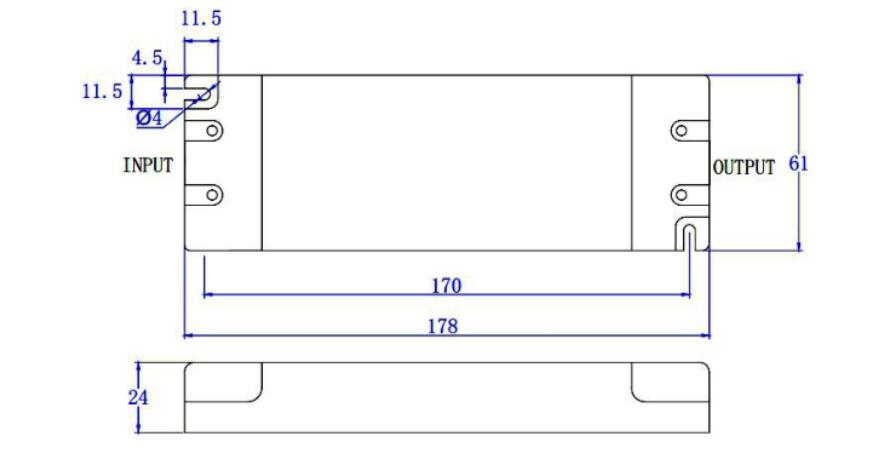

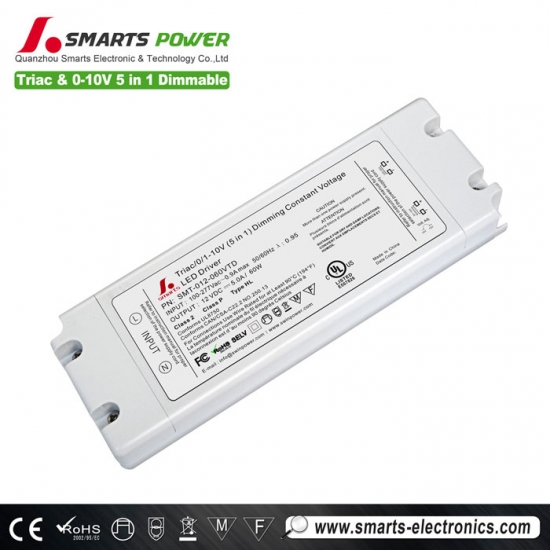

Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Compatible with the led strips kits
This kit enables you to control the color temperature of your LED strip lights. This means that you can use dimmable 12v LED lighting transformer to select the perfect shade of white between Warm white (2700k) and Bright white (6500k) from Flexfireleds.
