Non-dimmable LED Driver

etl approved triac dimmable 12v 48w 50w led driver

SMT-012-048VT is the 24v 48w constant voltage triac dimmable led driver which is no load limitation. That is to say, you can lod it into 1-48w led light.No need to consider the load limitation.
  • item no.:

    SMT-012-048VT
  • brand:

    SMARTS
  • Input Voltage:

    170-265V
  • Output Voltage:

    12VDC
  • Output Current:

    4A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

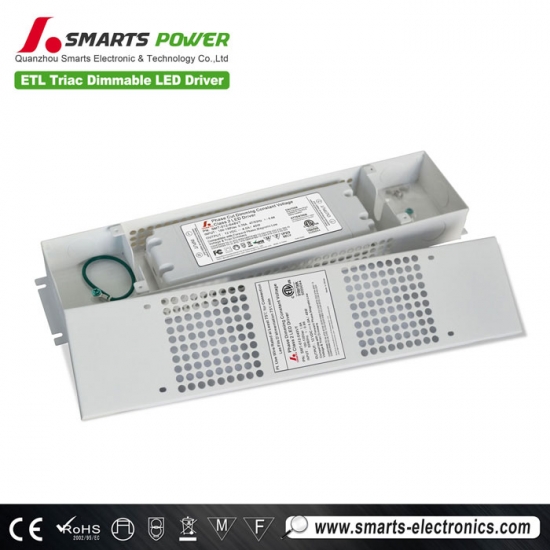

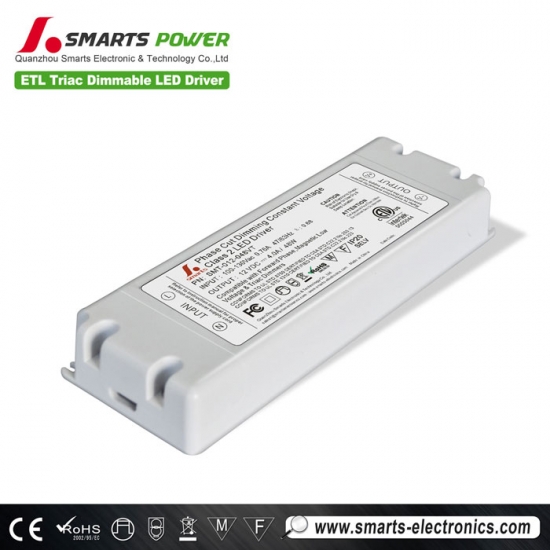

etl approved triac dimmable 12v 48w 50w led driver



SMT-012-048VT is the 24v 48w constant voltage triac dimmable led driver which is no load limitation. That is to say, you can lod it into 1-48w led light.No need to consider the load limitation. Compatible with Forward phase,Magnetic low voltage,triac Dimmers.


 Features

  • Output constant voltage
  • Universal AC input: 100-130VAC
  • Power Factor> 0.65
  • High efficiency> 84%
  • Protection:short circuit/over loading/over current/ Over temperature
  • Full protection plastic housing
  • Easy installation
  • Cooling by free air convection
  • Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
  • Strong compatibility, flicker-free dimming, PWM output
  • Suitable for LED lighting and moving sign applications and others
  • Compliance to worldwide safety regulations for lighting


Model

SMT-012-048VT

SMT-024-048VT

Certificates

ETLCETLCEROHS

ETLCETLCEROHS

output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

4.00A 1.25A

2.00A

Rated power

48W

input

Voltage Range

100130VAC / 170~265VAC

Frequency Range

4763HZ

Power Factor Typ.

PF≥0.70

EfficiencyTyp.

>84%

>84%



AC CurrentTyp.

0.68A @120VAC 0.4A

0.37A@220VAC



Leakage current

0.70mA/110VAC , 0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

1.4*I output

Over Loading

≤120%

Over temperature

100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic

Environment

Working TEMP.

-40+60

Working Humidity

2090%RH, non-condensing

Storage TEMP. Humidity

-40+801095%RH

TEMP .coefficient

±0.03%/050

Vibration

10500Hz2G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1500KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25/70%RH

EMC EMISSION

FCC Part 15 B

others

Net. Weight

0.45Kg

Size

178*61*24mmL*W*H

packing

350*195*180mm  30PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC / 220VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3.Loading should be 5-100%.

  Label    triac dimmable 12v 48w 50w led driver  triac dimmable 12v 48w 50w led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

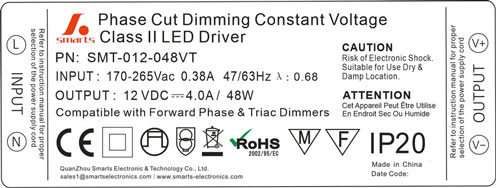

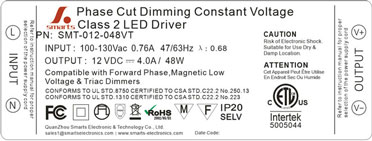

 Mechanical Specification


triac dimmable 12v 48w 50w led driver



Input (L) and (N) with wires to be connected AC.

Output  LED SEC :(LED+) (LED-)



 Dimming Operation

  • The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  • Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
  • Please try to use dimmers with power at least 2.5 times as the output power of the driver.
  • for Forward phase,Magnetic low voltage and Triac Dimmers


 Warning


  • Prevent to reverse polarity;
  • Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
  • Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
  • Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.


 Derating Curve


dimmable 12v led driver 50w

  • To extend their life, please refer to the Derating Curve and derate according to the temperature


 Connecting Diagram


dimmable 12v led driver 50w

..............................................................................................................................................................................

dimmable 12v led driver 50w

..............................................................................................................................................................................

dimmable 12v led driver 50w
