UL 60w 700ma triac dimmable constant current led driver IP20


driver led 60w
driver led 60w driver led 60w driver led 60w driver led 60w driver led 60w driver led 60w

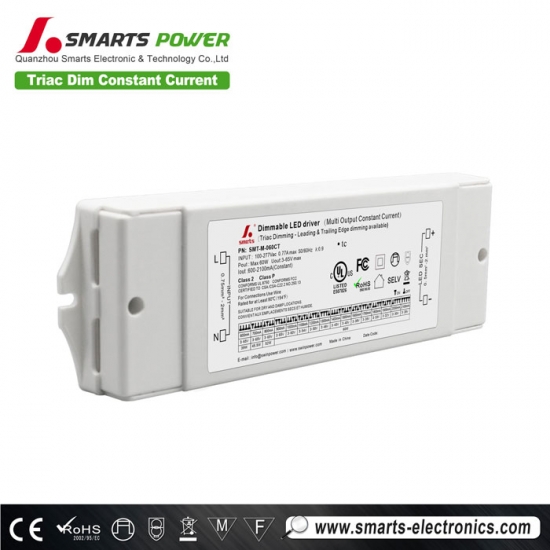

UL 60w 700ma triac dimmable constant current led driver IP20

SMARTS provides a 7-year warranty for this 60w multi-current dial-up triac dimmable led driver. It has a plastic case with a size of only 192.5*62*24mm and a weight of 0.3kg. It is compact and lightweight, and easy to install.

  • item no.:

    SMT-M-060CT

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Voltage:

    3~65vdc

  • Output Current:

    600mA-2100mA

  • Working Mode:

    Constant current

  • Certification:

    UL ROHS

  • Warranty:

    7 years
inquiry now
product details

UL 60w 700ma triac dimmable constant current led driver IP20

This 60W TRIAC dimmable led driver has an output current of 600ma-2100ma, has passed the UL cUL FCC CE ROSH certification, has a complete certificate, and has a 7-year warranty. It is suitable for installation in small indoor spaces.

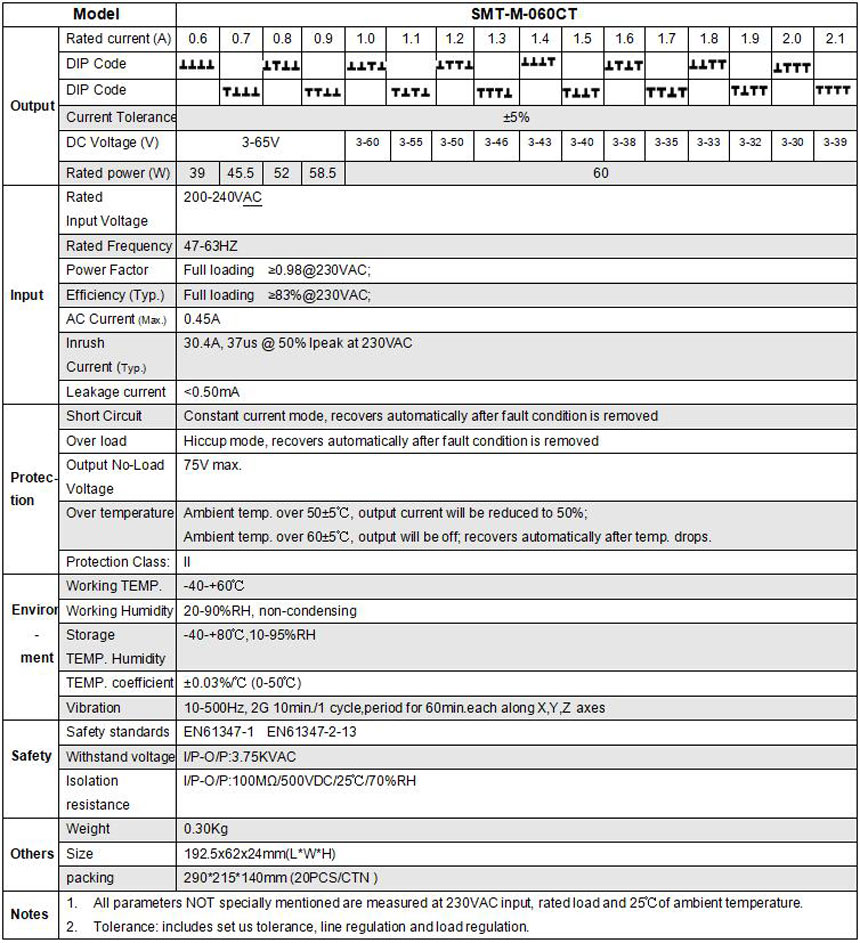

  Specification


Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top

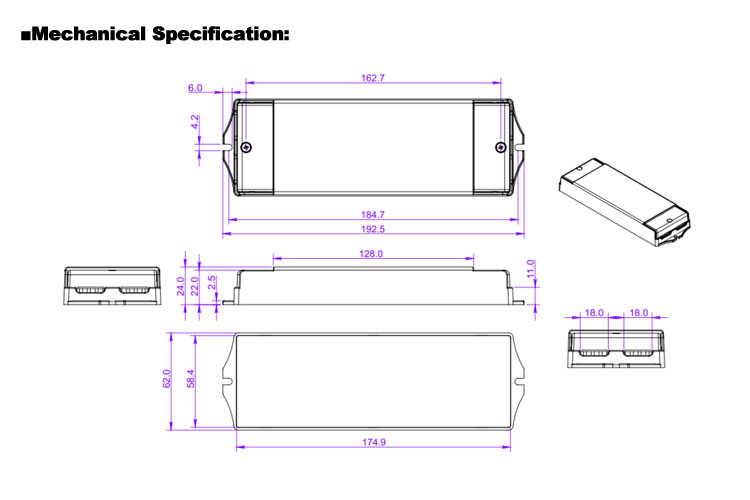

  Mechanical Specification

driver led 60w



Ø Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

Ø Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

Ø Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.



Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

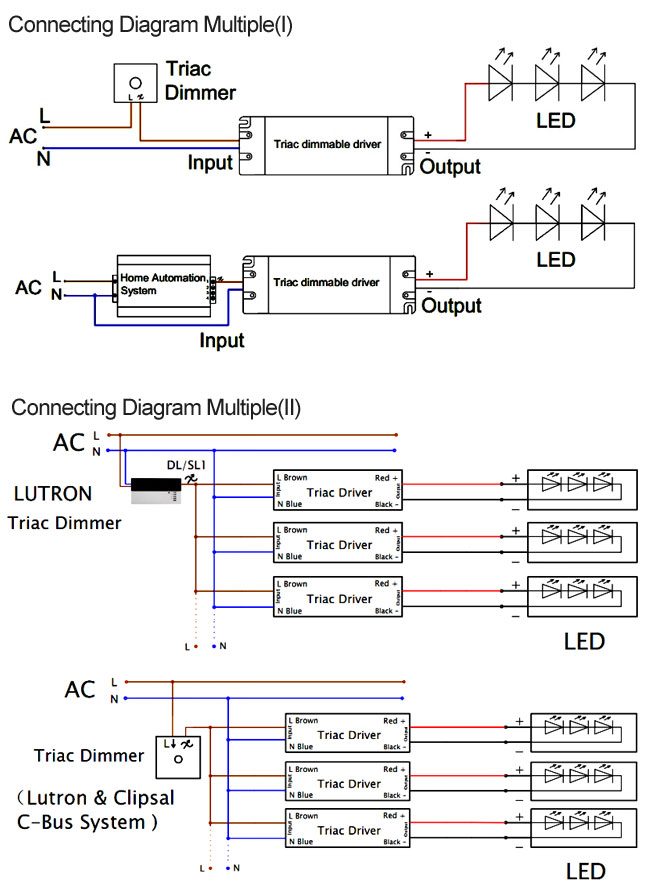

  Dimming operation

driver led 60w


  Related Products

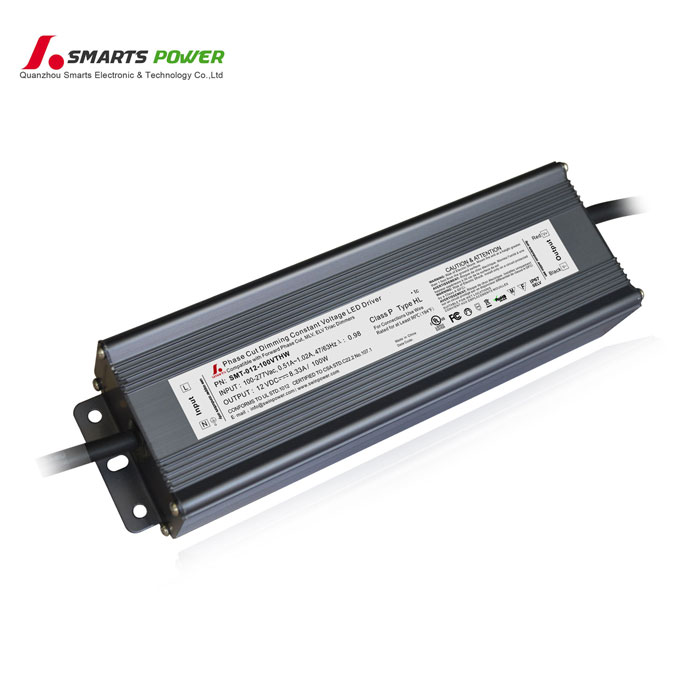

triac dimmable led driversSMARTS 100w triac dimmable led driver is made of aluminum housing, waterproof performance ip67, can effectively waterproof and dustproof, protect the lamps and lanterns for a longer time
