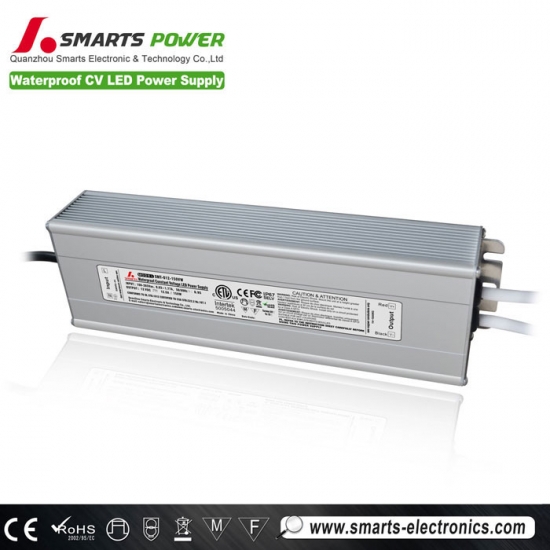

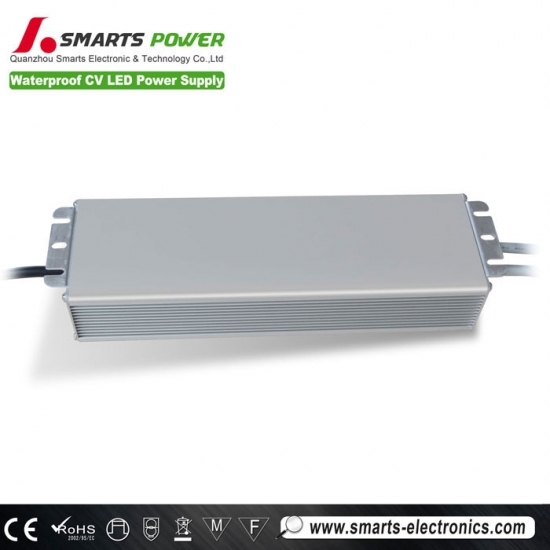

ETL certified IP67 waterproof 120v 12v 150w led driver
Smart's 12v 150w led driver has IP67 waterproof design which is suitable with indoor and outdoor lighting , especially for LED Flex strip and RGB Flex strip , this driver is ETL certified and we provide 3 years warranty, what's more , it has high pf > 0.96 , high efficiency >0.88 , its' 100-265vac input voltage is widely used in most countried .
Features of 12v 150w led driver
Output mode: constant voltage
Waterproof aluminum case IP67 protection;
Active PFC technology ;
Cooling by free air convection
Class1 safety protection design ;
EFF>87%, PF>0.95;
Short circuit/Overload/Over temperature
Easy installation，Fit for dry, wet, rainy environment；
3 years warranty；
CE/ROHS/ETL certificate;
OEM & ODM
| SPECIFICAION | |||||
| MODEL | SMT-012-150VW | SMT-024-150VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 12.5A | 6.25A | |||
| CURRENT RANGE | 0~12.5A | 0~6.25A | |||
| RATED POWER | 150W | 150W | |||
| RIPPLE&NOISE(max) | 150mV | 150mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110VAC, 220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | ||||
| INPUT | VOLTAGE RANGE | 100-265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | 0.95 | ||||
| EFFICIENCY(Typ.) | ﹥87% | ﹥87% | ﹥87% | ﹥87% | |
| AC CURRENT(Typ.) | 1.85A/110VAC, 220VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
 |
|

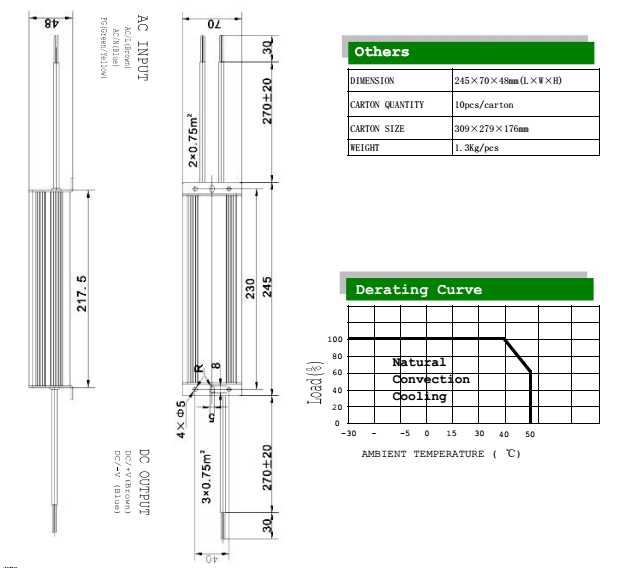

Mechanical Specification of IP67 led driver 12v 150w
