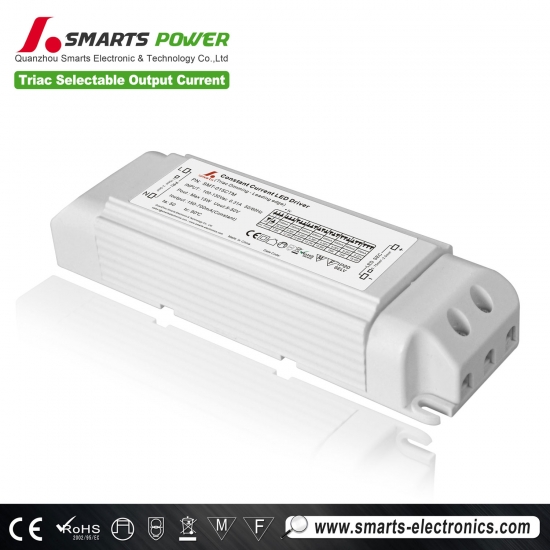

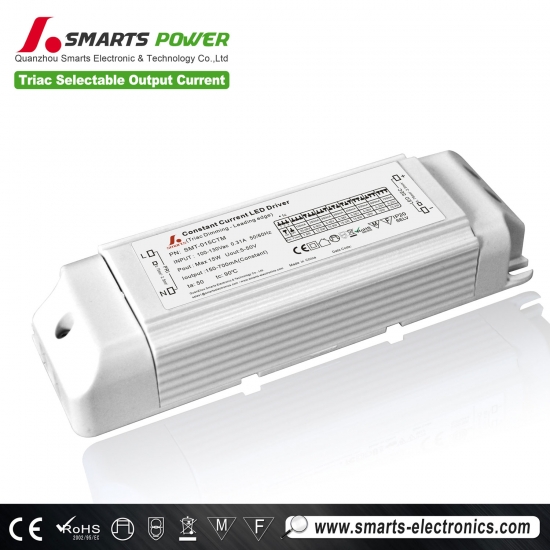

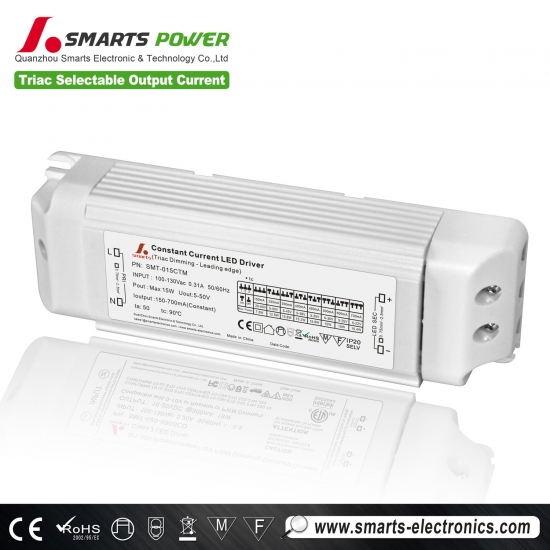

220v 300ma 700ma 15 watt LED Driver Manufacturers
SMT-015CTM, with 170~265VAC input voltage and built-in two stage PFC function. Suitable for use in a range of suitable commercial and domestic lighting applications, SMARTS's 220v led driver can prove to be the perfect solution for signage, safety, architectural and security lighting opportunities. Multi-current DIP Adjustment output,15W/25W/50W available.
Features for led driver dimmable：
·Output constant current type Triac dimmable led driver
·Input range : 170-265VAC
·Efficiency : 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Dimming range: 0% ~ 100%
·Dimming function: Triac dimmable Phase cut dimmable
·Compliance to worldwide safety regulations for lighting
·3 years warranty
What LED Drivers Smarts Electronics do?
LED Lighting Power Supplies from Smarts Electronics are available in ranges from 6W to 6000W and come in many different forms for both indoor and outdoor LED lighting installations. Our Constant Current LED Lighting Power Supply range offers currents from 350mA to 2100mA; whilst the Constant Voltage LED Lighting Power Supply range starts at 12V going through to 48V.
Both types of LED lighting power supply offer high efficiencies, PFC, are available with Class II or Class I Input; IP ratings against dust and moisture from IP20 through to IP67 and protection for short circuit, over voltage, overload and over temperature conditions. With additional options such adjustable outputs and PWM, 1-10V, Resistive or triac dimming functions.
|
Model #: |
SMT-015CTM |
||||||||
|
Output |
Rated current |
700mA |
600mA |
500mA |
450mA |
400mA |
350mA |
250mA |
150mA |
|
Current Tolerance |
±5% |
||||||||
|
DC Voltage |
5-22V |
5-25V |
5-30V |
5-33V |
5-37V |
5-45V |
5-50V |
20-50V |
|
|
Rated power |
15.4W |
15W |
15W |
14.85W |
14.8W |
15.75W |
12.5W |
7.5W |
|
|
Input |
Rated Input Voltage |
AC170-265V |
|||||||
|
Rated Frequency: |
47-63HZ |
||||||||
|
Power Factor |
PF≥0.65/180VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading) |
||||||||
|
Full Load Efficiency(Typ.) |
78% |
78% |
79% |
78% |
80% |
80% |
79% |
79% |
|
|
AC Current(Max.) |
0.30A |
0.30A |
0.30A |
0.29A |
0.29A |
0.31A |
0.25A |
0.15A |
|
|
Leakage current |
<0.50mA |
||||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
Output No-Load Voltage |
52-60V |
||||||||
|
Over Load |
≤ 120% |
||||||||
|
Protection Class: |
Class II |
||||||||
|
Environ- ment |
Working TEMP. |
-40-+60℃ |
|||||||
|
Working Humidity |
20-95%RH,non-condensing |
||||||||
|
Storage TEM. Humidity |
-40-+80℃,10-95%RH |
||||||||
|
TEMP. coefficient |
±0.03%/℃(0-50℃) |
||||||||
|
Vibration |
10～500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||||||
|
Safety & EMC |
Safety standards |
UL8750+UL1310 |
|||||||
|
Withstand voltage |
I/P-O/P:1500KVAC |
||||||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||||
|
EMC EMISSION |
FCC Part 15 B |
||||||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level (surge 4KV) |
||||||||
|
Others |
Net Weight |
0.19Kg |
|||||||
|
Size |
140*45*27mm(L*W*H) |
||||||||
|
packaging |
inner box : 265*31*32mm Carton size: 324*298*188mm , 50PCS/CTN |
||||||||
|
Notes |
1. All parameters NOTspecially mentioned are measured at 230VAC input,rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . |
||||||||
15W triac dimmable constant current led driver circuit Mechanical Specification:
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Derating Curve for constant current led driver circuit:
Dimming Operation Notice for 350ma led driver:
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase
line(L) by connection a triac dimmer.
Ø Usually matching with leading edge/Forward Phase Triac Dimmers( Can customized as a driver only matching trailing edge/reverse
phase Triac Dimmers if needed).
Ø Please try to use dimmers with power at least 3 times as the output power of the driver.
Ø for Forward phase,Magnetic low voltage and Triac Dimmers
