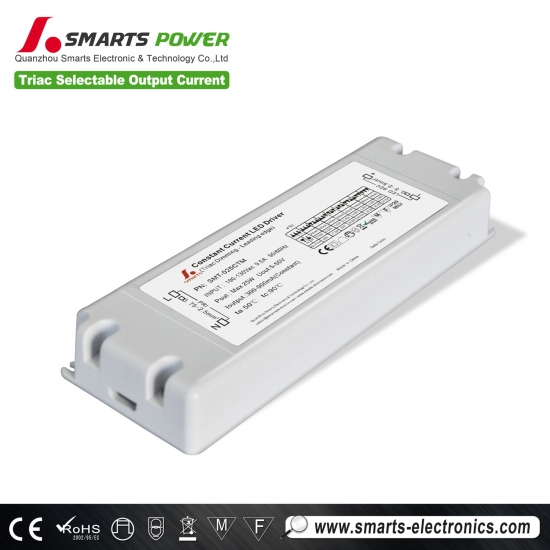

25 watt 500ma Constant Current LED Driver Electronic Circuit
SMT-015CTM is a constant current led driver circuit with multi-stage constant current output; allowing a single unit to be used for applications with potential for multiple current levels, such as project style lighting designs. The current levels,300mA, 350mA, 500mA, 550mA, 450mA, 500mA, 650mA, 700mA,900mA, are easily switched by adjusting the built-in DIP switch. Multi-current DIP Adjustment output,15W/25W/50W available.
If we found any defective products within warranty ,what Smarts should us do for the defective product ?
We give 3 years warranty for 220v dimmer. If clients use properly, hardly any of feedback from our clients about the led drivers can not work or damaged during warranty time..
We do not make up for new replacement if we find damage cames from inappropriate use of clients, But if confirm that damage cames from 220v dimmer itself, pls collect and keep all defective 220v dimmer. We promised to replace a new one.
Futures for 25w led driver:
·Output constant current type Triac dimmable led driver
·Input range : 170-265VAC
·Efficiency : 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Dimming range: 0% ~ 100%
·Dimming function: Triac dimmable Phase cut dimmable
·Compliance to worldwide safety regulations for lighting
·3 years warranty
|
Model #: |
SMT-025CTM |
||||||||
|
Output |
Rated current |
900mA |
850mA |
700mA |
650mA |
550mA |
500mA |
350mA |
300mA |
|
Current Tolerance |
±5% |
||||||||
|
DC Voltage |
5-28V |
5-30V |
5-35V |
5-38V |
5-45V |
5-50V |
5-50V |
5-50V |
|
|
Rated power |
25.2W |
25.5W |
24.5W |
24.7W |
22.5W |
25W |
17.5W |
15W |
|
|
Input |
Rated Input Voltage |
170-265VAC |
|||||||
|
Rated Frequency: |
47-63HZ |
||||||||
|
Power Factor |
PF≥0.65/180VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading) |
||||||||
|
Full Load Efficiency(Typ.) |
81% |
81% |
82% |
82% |
82% |
82% |
81% |
80% |
|
|
AC Current(Max.) |
0.50A |
0.50A |
0.48A |
0.48A |
043A |
0.48A |
0.34A |
0.29A |
|
|
Leakage current |
<0.50mA |
||||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
Output No-Load Voltage |
52-60V |
||||||||
|
Over Load |
≤ 120% |
||||||||
|
Protection Class: |
Class II |
||||||||
|
Environ- ment |
Working TEMP. |
-40-+60℃ |
|||||||
|
Working Humidity |
20-95%RH,non-condensing |
||||||||
|
Storage TEM. Humidity |
-40-+80℃,10-95%RH |
||||||||
|
TEMP. coefficient |
±0.03%/℃(0-50℃) |
||||||||
|
Vibration |
10-500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||||||
|
Safety & EMC |
Safety standards |
UL8750+UL1310 |
|||||||
|
Withstand voltage |
I/P-O/P:1500KVAC |
||||||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||||
|
EMC EMISSION |
FCC Part 15 B |
||||||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level (surge 4KV) |
||||||||
|
Others |
Weight |
0.21Kg |
|||||||
|
Size |
155*54*20mm(L*W*H) |
||||||||
|
Inner box & carton packing |
Inner box: 160*60*23mm Carton size: 350*240*130mm 40PCS/CTN |
||||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . |
||||||||
led driver constant current Mechanical Specification:
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Derating Curve for led driver electronic:
Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.
Triac Dimmable LED Driver Connection Diagrams for led driver 500ma:
