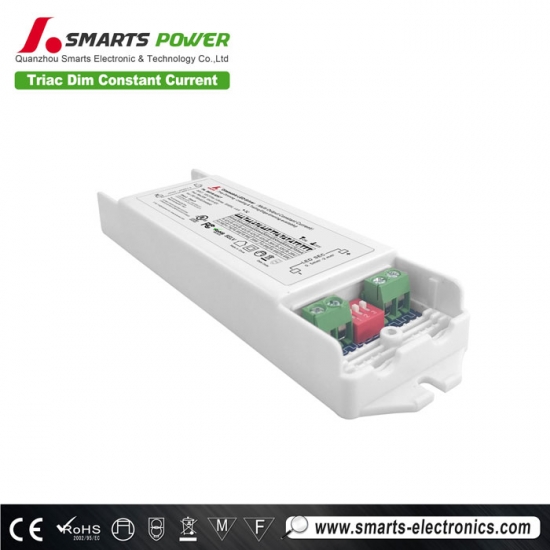

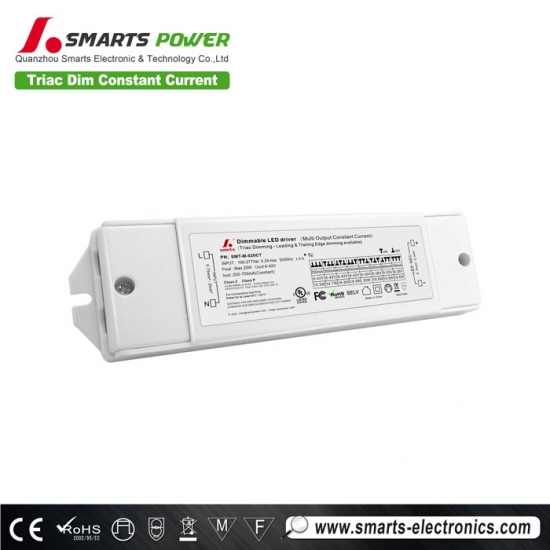

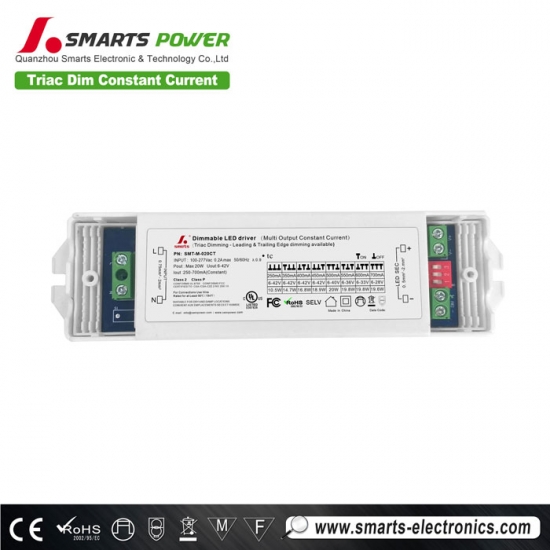

Flicker-free 20w triac dimmable constant current led driver 250ma-700ma


led driver 20w 300ma
led driver 20w 300ma led driver 20w 300ma led driver 20w 300ma led driver 20w 300ma

Flicker-free 20w triac dimmable constant current led driver 250ma-700ma

SMARTS 20W TRIAC dimmableled driver input voltage is 100-277vac, working mode is Multi-Output Current Driver, which can meet various current needs of users

  • item no.:

    SMT-M-020CT

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Voltage:

    3~65vdc

  • Output Current:

    250mA-700mA

  • Working Mode:

    Constant current

  • Certification:

    UL ROHS

  • Warranty:

    7 years
inquiry now
product details

Flicker-free 20w triac dimmable constant current  led driver 250ma-700ma

This new product triac dimmable led driver 20W size is only 159.5*43*20mm, weight 220g, easy to install, can be hidden in a narrow place without taking up space


  Specification


led power supply 40w

Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top

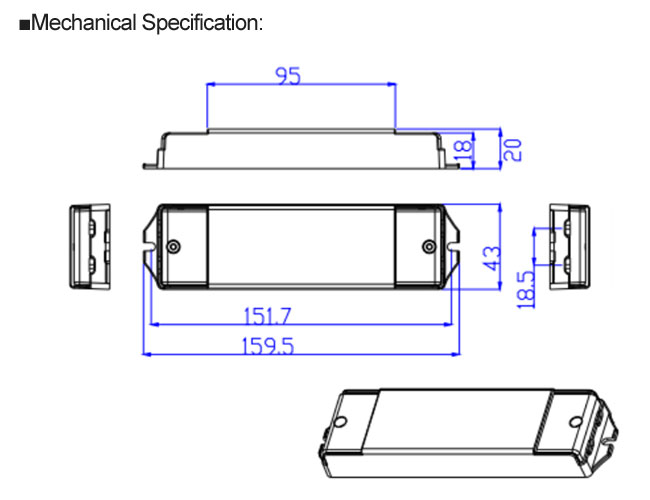

  Mechanical Specification



※Input terminals "Black" and "White" to connect to AC L and N.

※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be

damaged




  Dimming operation

led power supply 40w


  Related Products

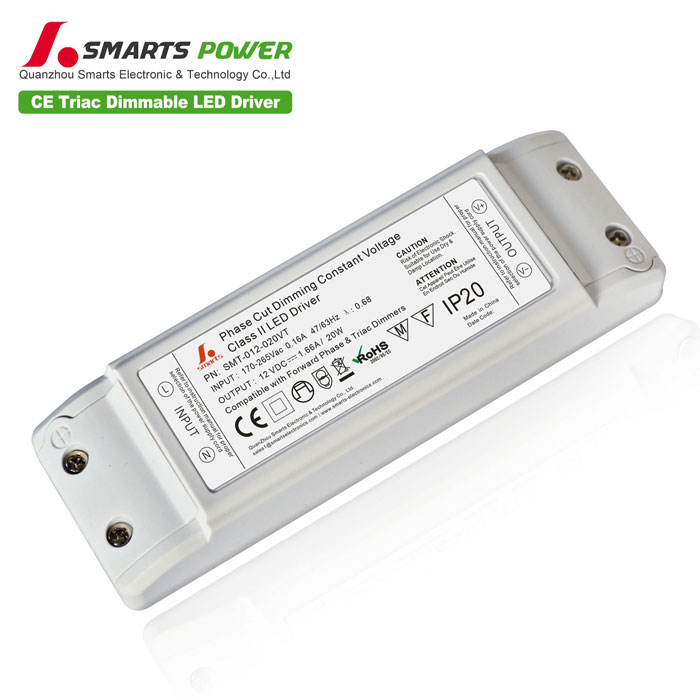

SMARTS TRIAC dimmable led driver 20W is a small, light and thin power supply that has passed CE/ETL certification and has complete certificates
