UL 100ma constant current triac dimmable led driver 10w 300ma


led driver 10w 300ma
led driver 10w 300ma led driver 10w 300ma led driver 10w 300ma led driver 10w 300ma

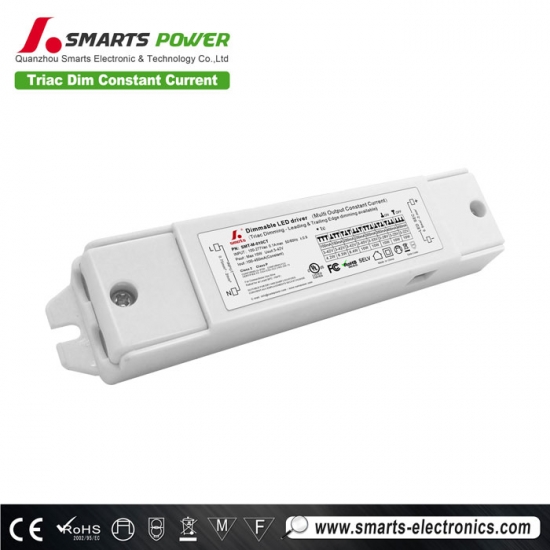

UL 100ma constant current triac dimmable led driver 10w 300ma

The smarts triac dimmable series of multi-current dial-up led drivers are available in four power types: 10W, 20W, 40W, and 60W, each of which can adjust the output current according to user needs

  • item no.:

    SMT-M-010CT

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Voltage:

    3~65vdc

  • Output Current:

    100mA-450mA

  • Working Mode:

    Constant current

  • Certification:

    UL ROHS

  • Warranty:

    7 years
inquiry now
product details

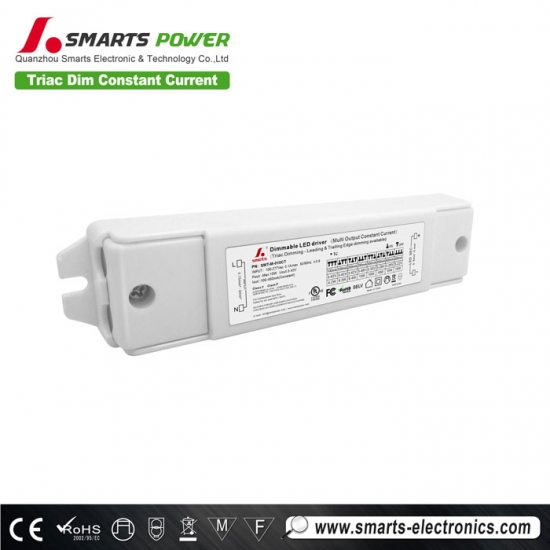

UL 100ma constant current triac dimmable led driver 10w 300ma

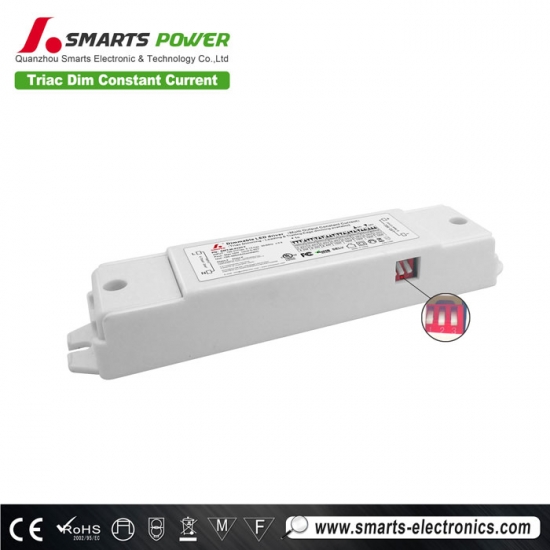

The new Triac dimming led driver has a dialable module inside. It provides 8 levels of current adjustment according to the user's own needs within the current range of 100ma-450ma. The input voltage is 100-277vac. It has passed the UL certification and is very popular in North America.

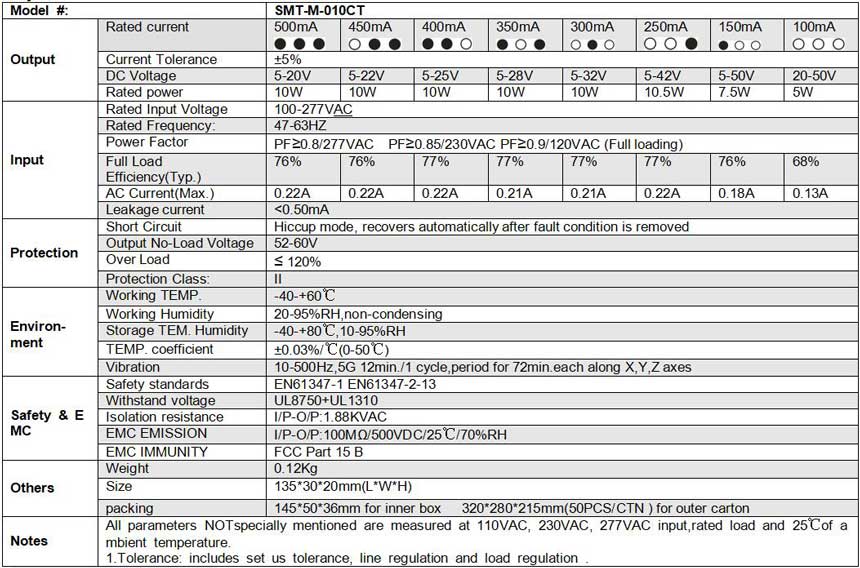

  Specification


Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top

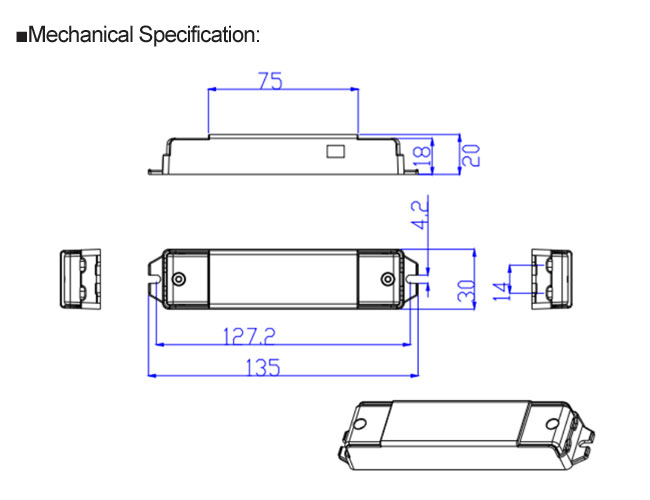

  Mechanical Specification



※Input terminals "Black" and "White" to connect to AC L and N.

※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be

damaged


  Dimming operation

led power supply 40w


  Related Products

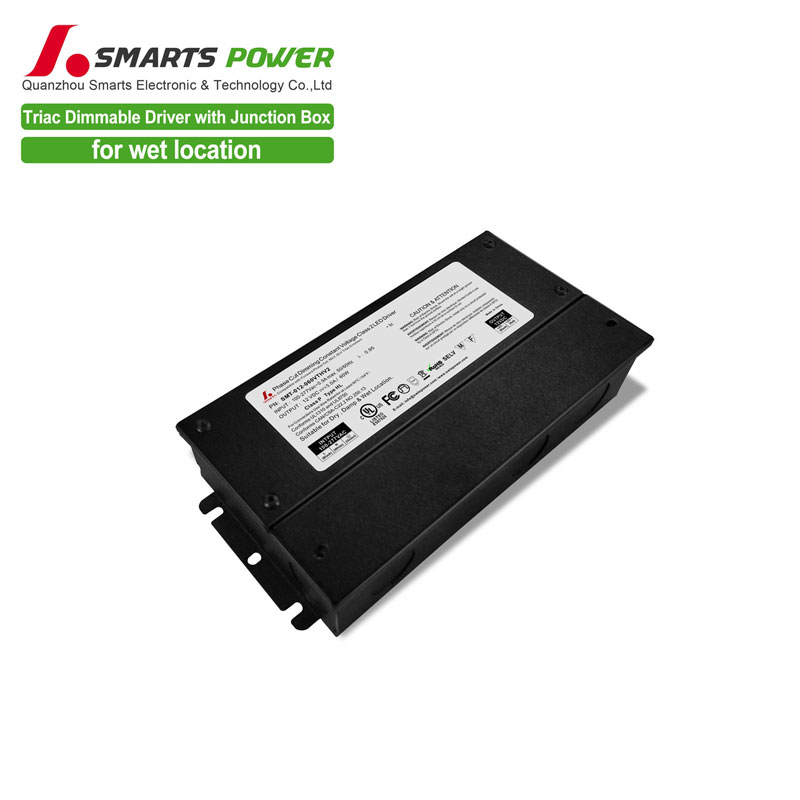

SMT-012-060VTHV2 is a triac dimmable led driver, an upgraded version of the all-in-one machine, with an input voltage of 100-277vac, higher performance and safer
