Non-dimmable LED Driver

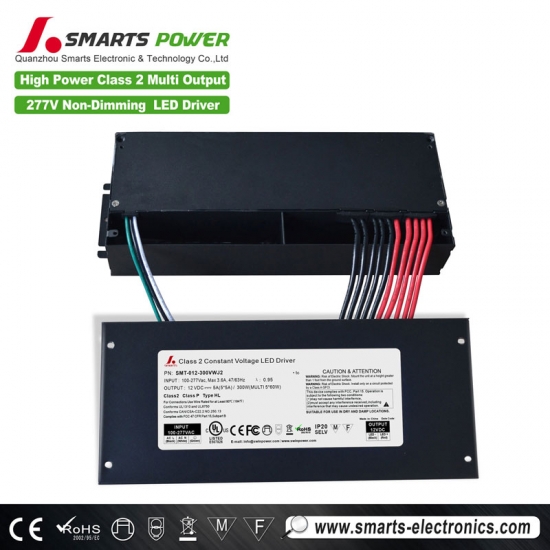

UL standard 110v 277v Class 2 multi output 12v high power 300w led power supply

Smarts led power supply 25a conforms to UL standard. High power 300w but meet Class 2 with multiple output.  It shows nice compatibility with 12v 24v constant voltage led lights like AQ lighting
  • item no.:

    SMT-012-300VWJ2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc; 24vdc
  • Output Current:

    5*5A;3*4A
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL
  • Warranty:

    7 years
inquiry now
product details

UL standard 110v 277v Class 2 multi output 12v high power 300w led power supply


Built with junction box, this 120 v led power supply is more safer in application in North American. 12v and 24v both are provided. Most led strips can be workable like Bioluz LED.


  Specification



Model

SMT-012-300VWJ2(1.0 version)

SMT-012-300VWJ2V2 (2.0 version)

SMT-012-300VWJ2WV2 (3.0 version)






SMT-024-288VWJ2 (1.0 version)

SMT-024-288VWJ2V2 (2.0 version)

SMT-024-288VWJ2WV2 (3.0 version)





Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

±1%



Rated current

25A (multi current 5*5A)

12A(multi current 3*4A)

Rated power

300W (5*60W)

288W (3*96W)

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor (Typ.)@full load

0.99@120VAC  0.95@277VAC

0.99@120VAC  0.95@277VAC

THD(Typ.)@full load

<20%

<20%

Inrush Current(Typ.)

88%@120V   92%@277VAC

79%

86%@120V   91%@277VAC



Efficiency(Typ.)@Full Load



3.4A@100VAC

3.6A@100VAC

AC Current(Typ.)

35A ,50%,960us @120VAC ; 43A,50%,1ms@277VAC

12.4A (twidth=430us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes









Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

2.2Kg  (1.0 version)

Size

1.0 version: 301*108*46mm   /   2.0 version: 301*130*46mm

3.0 version: 301*140*45mm

packaging

330*220*245mm     8pcs /CTN    G.W.:21.08KG/CTN  (1.0 version)



385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

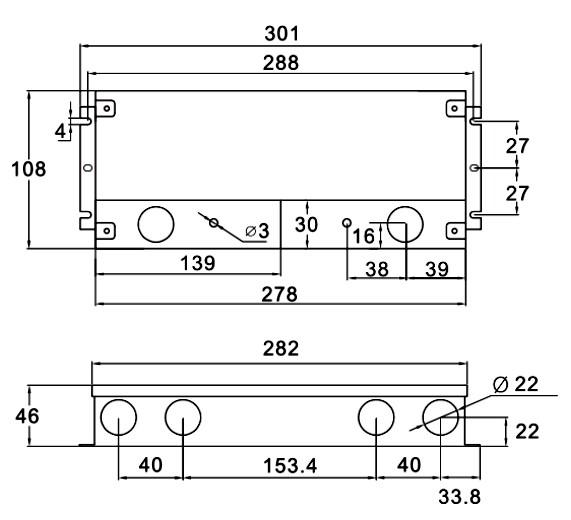

  Mechanical Specification


120 v led power supply



1.0 version: SMT-012-300VWJ2  /  SMT-024-288VWJ2




Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

Note: Class 2 standard output terminal. Five groups of cables for SMT-012-300VWJ2, SMT-012-300VWJ2V2, SMT-012-300VWJ2WV2 ;  Three groups for SMT-024-288VWJ2,SMT-024-288VWJ2V2,SMT-024-288VWJ2WV2

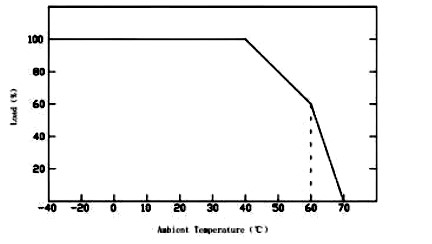

  ■Derating Curve


120 v led power supply

※To extend their life, please refer to the Derating Curve and derate according to the temperature.

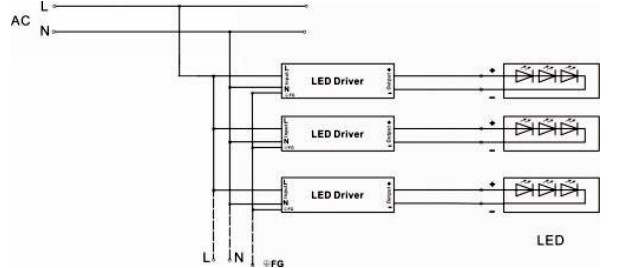

  ■ Connecting Diagram


     120 v led power supply

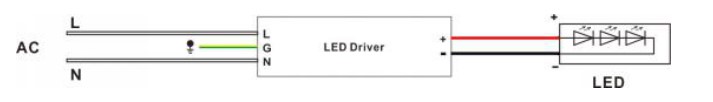

  ■ Simple Connection Diagram:


120 v led power supply


  ■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-18016688251



Official website: www.smarts-electronics.com & www.swinpower.com


  Compatible Dimmer Type


To meet the standard of Class 2 and reach high power, this 300w led power supply has been made for multiple output.. We promise a long warranty up to 7 years. signify LED module is an option.
