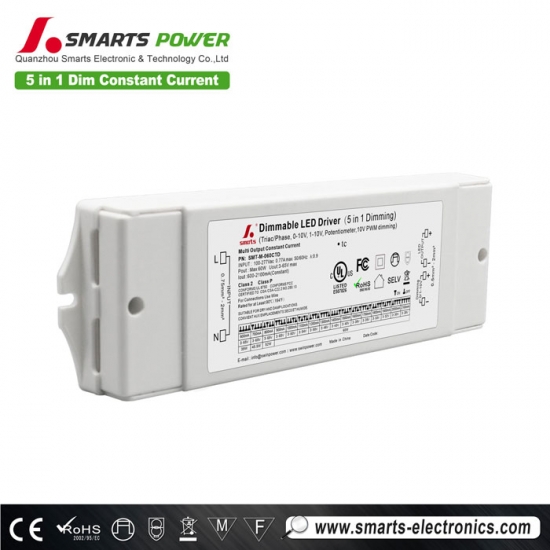

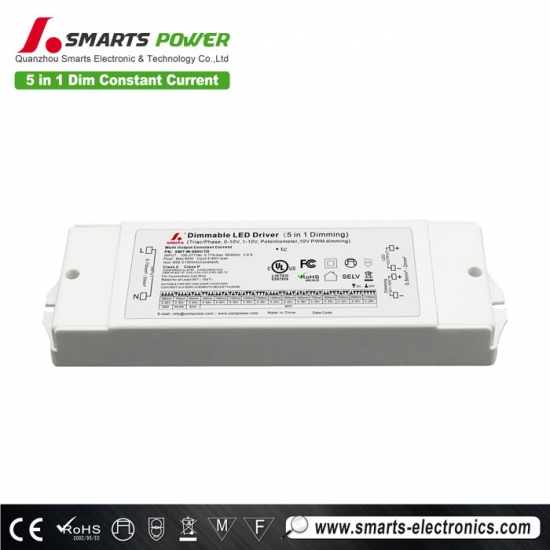

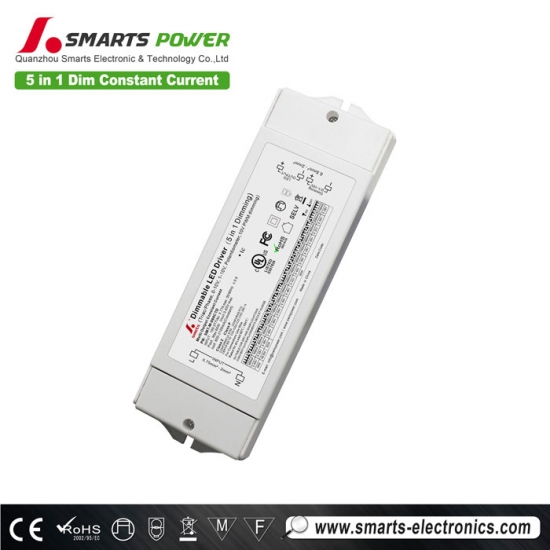

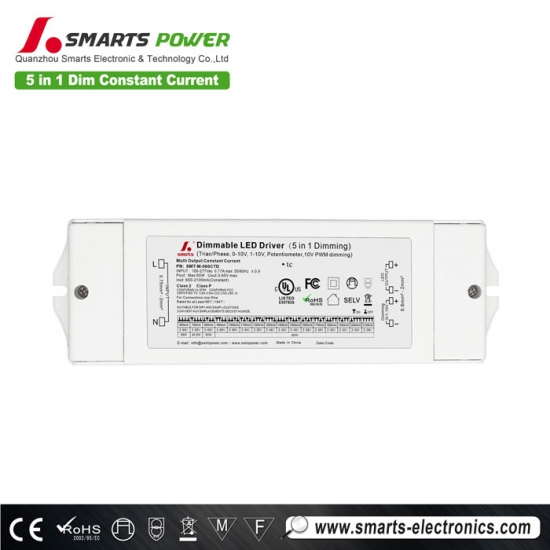

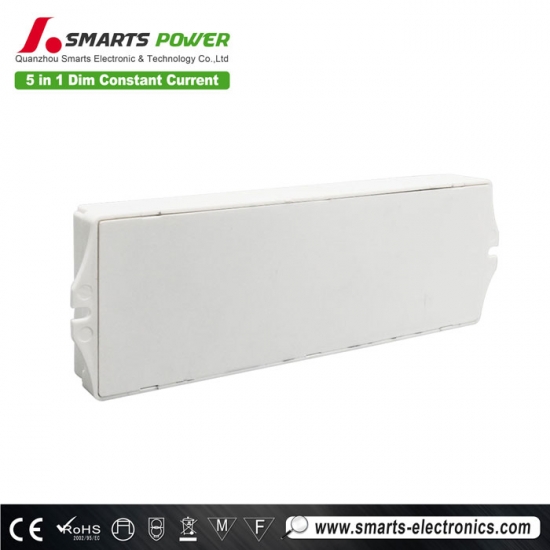

Multi-current 0/1-10V triac dimmable constant current led driver power supply 60W

Multi-current 0/1-10V triac dimmable constant current led driver power supply 60W

Smarts multi-current dial code 60w led power supply, it is triac/0-10v dimming mode, this power supply has passed UL certification, input voltage is 100 to 277vac, in line with North American electricity standards, and has a 7-year warranty to make it safer and more reliable

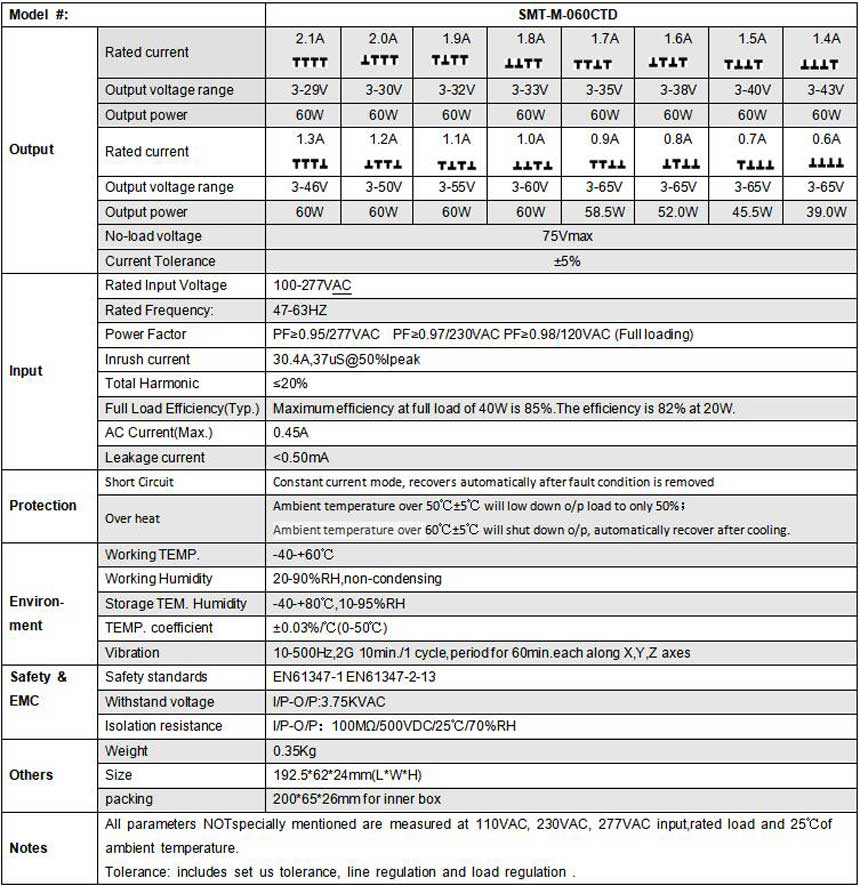

  Specification

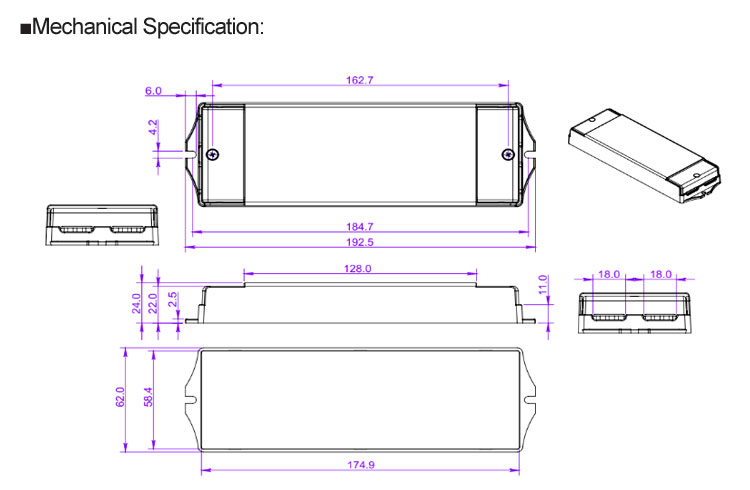

  Mechanical Specification

※Input terminals "Black" and "White" to connect to AC L and N.

※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

  Dimming operation
