Multi-output triac & 0 10v dimmable constant current led driver manufacturers for led lights

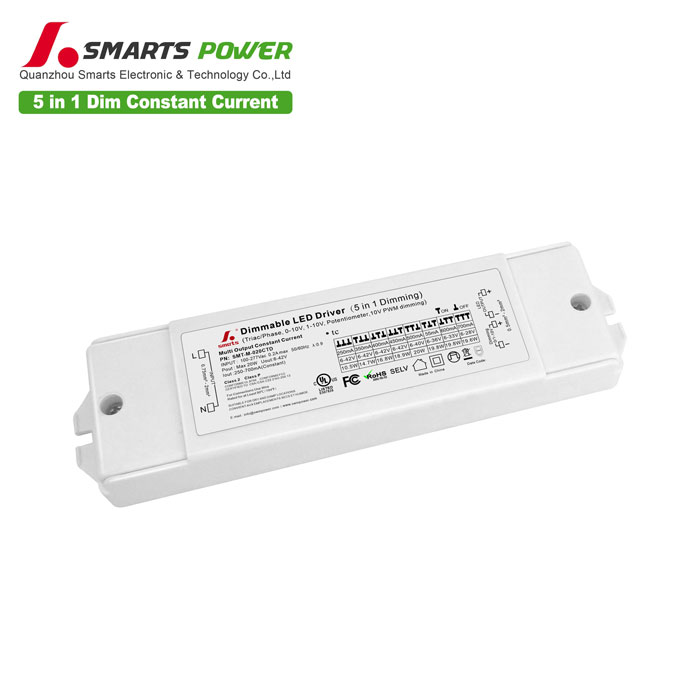

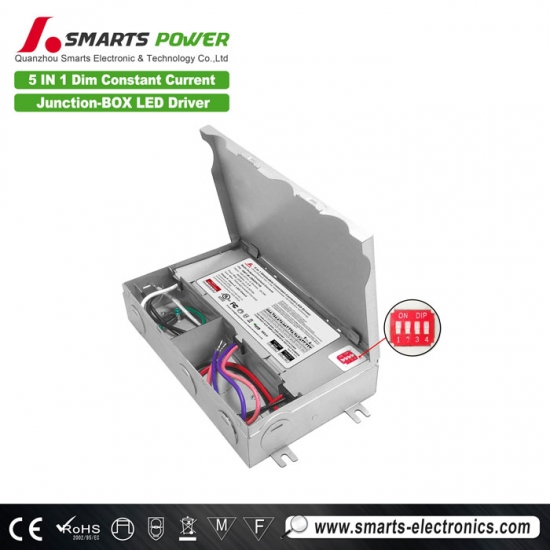

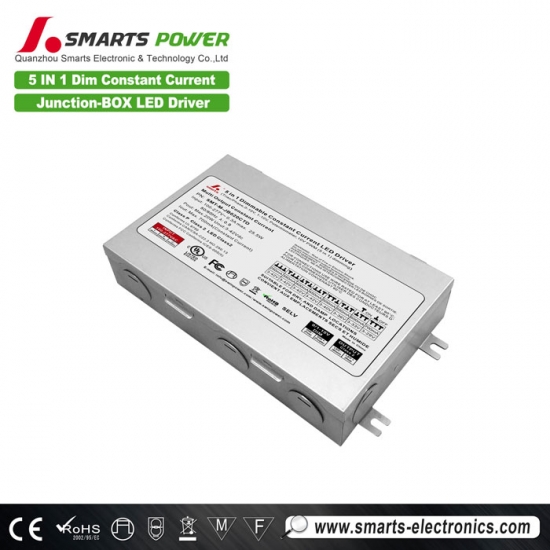

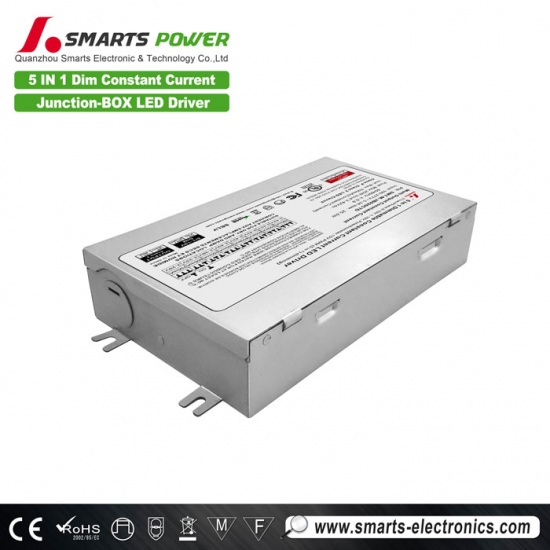

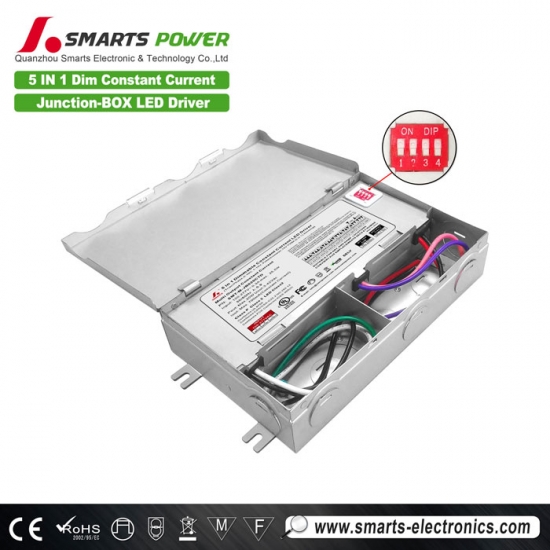

UL listed 5 in 1 dimmable LED driver with DIP switch adjustable, can adjust different output currents according to user needs, the range is 250ma-700ma, suitable for indoor LED lighting projects, with 5 years warranty

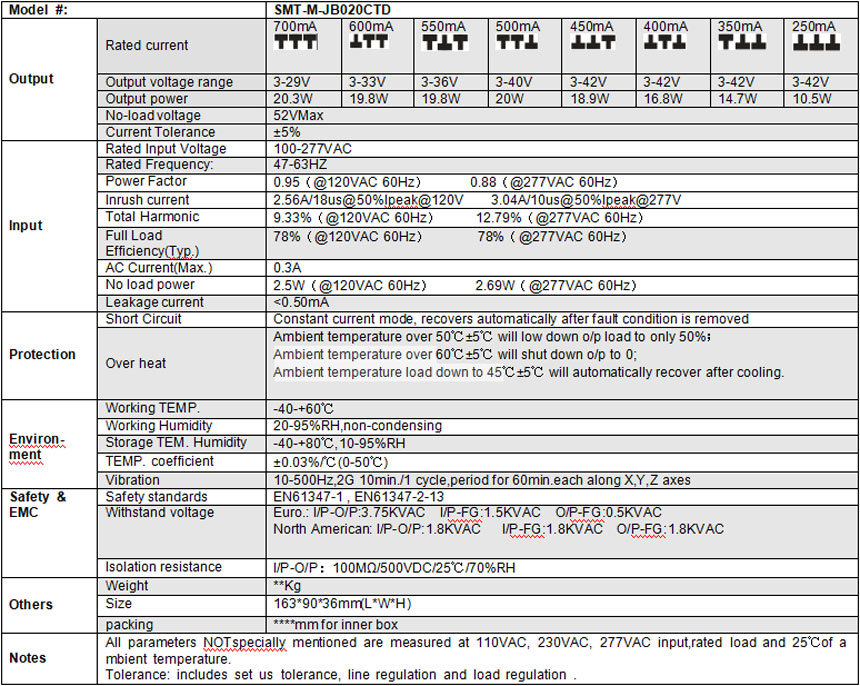

Specification
 |
 |
 |
 |

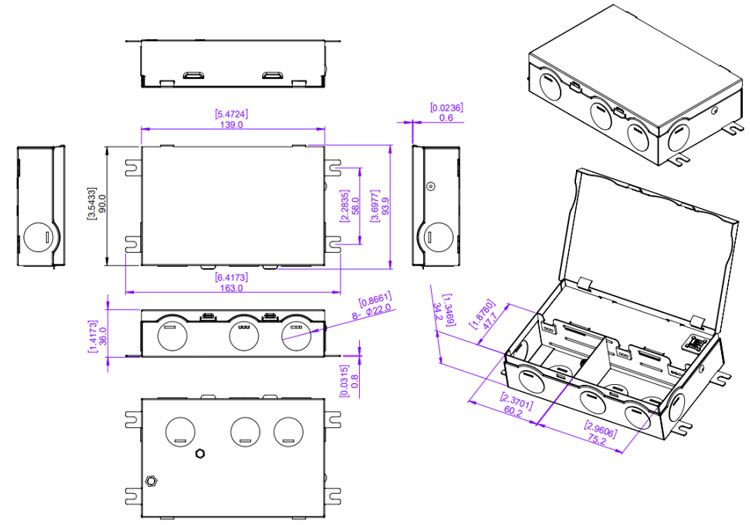

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

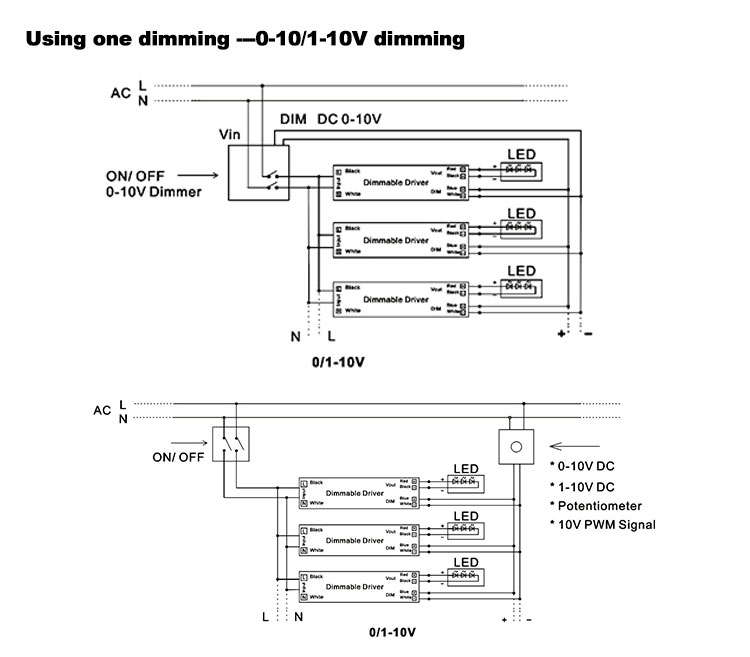

Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation

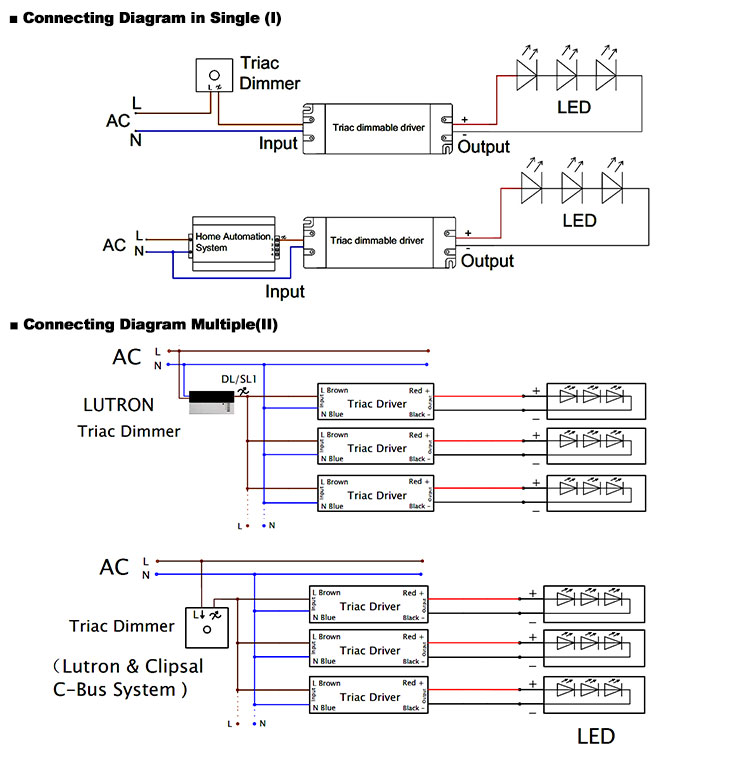

Using TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2. Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Related Products
SMT-M-020CTD is a Multi-output current triac & 0 10v dimmable led driver with plastic housing design, waterproof level ip20, built-in DIP switch adjustable function. UL certified, mainly sold in North America, with 5-year warranty
Mode：SMT-M-020CTD intput voltage：100-277vac
Size : 159.5*43*20mm |
