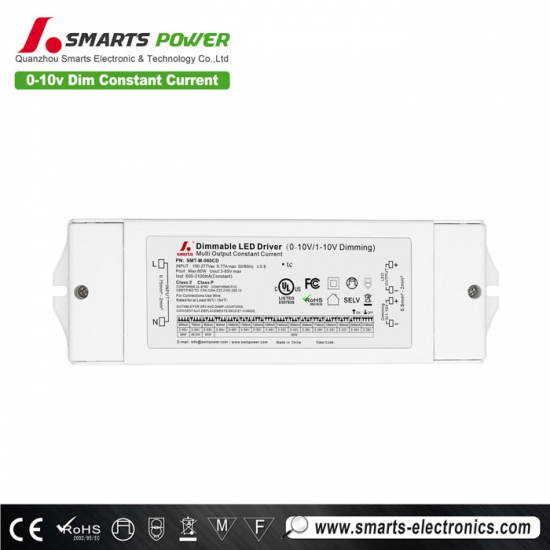

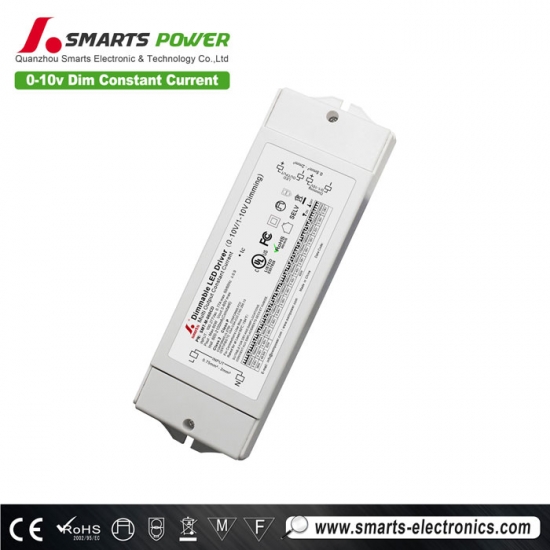

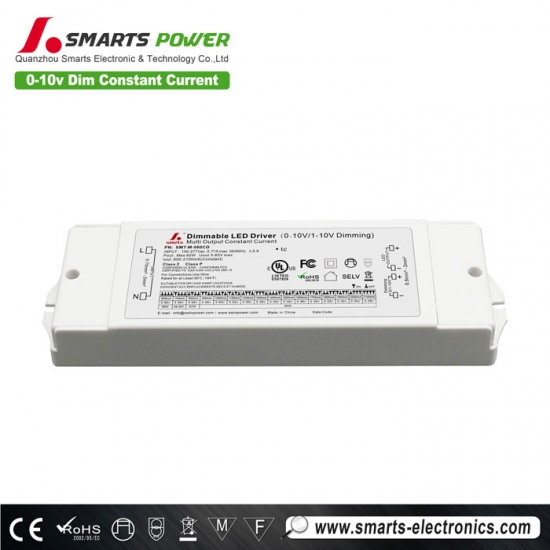

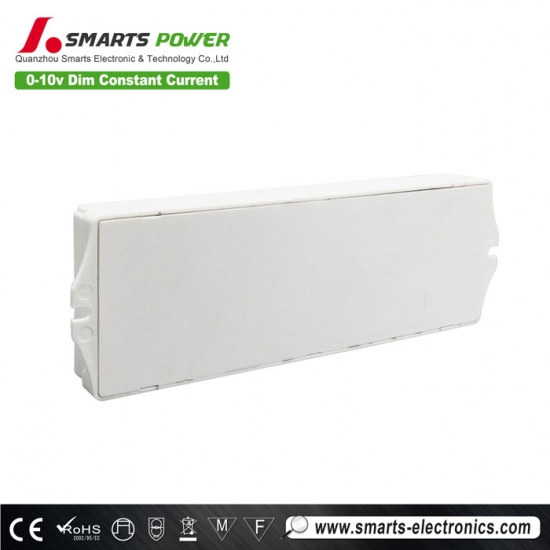

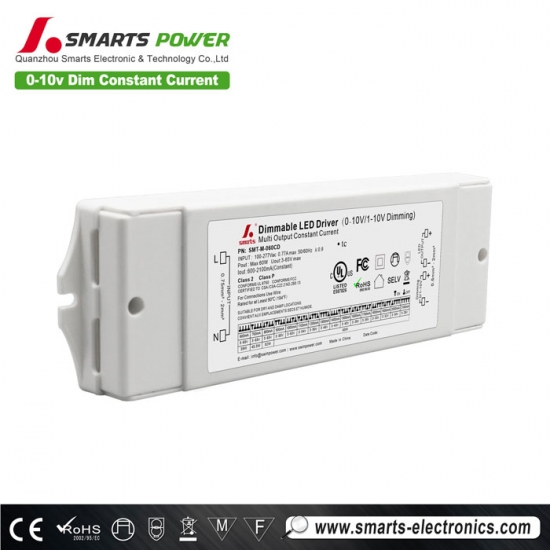

60w 0-10v/pwm dimming constant current led driver 600ma-2100ma power supply
0-10v dimmable led driver, this new led power supply can be well matched with most lamps on the market, with 0.1%-100% flicker-free smooth dimming, has passed UL certification, and is mainly sold in North America

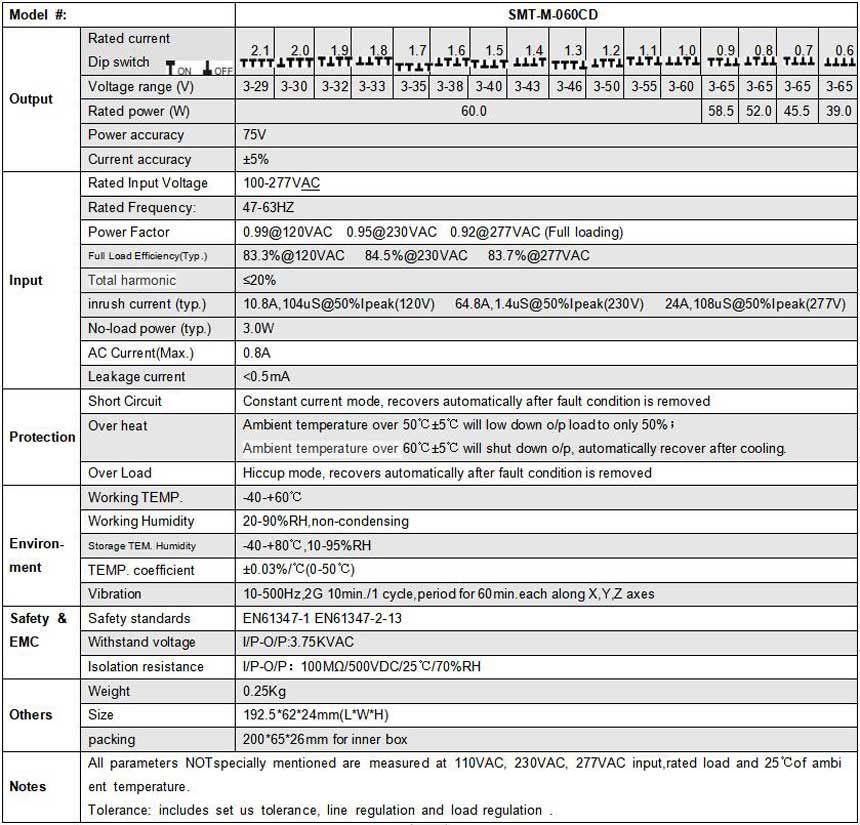

Specification
 |
 |
 |
 |

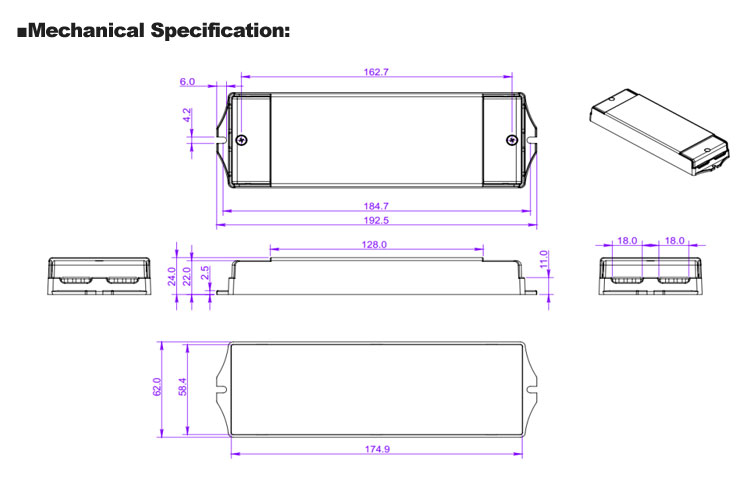

Mechanical Specification
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

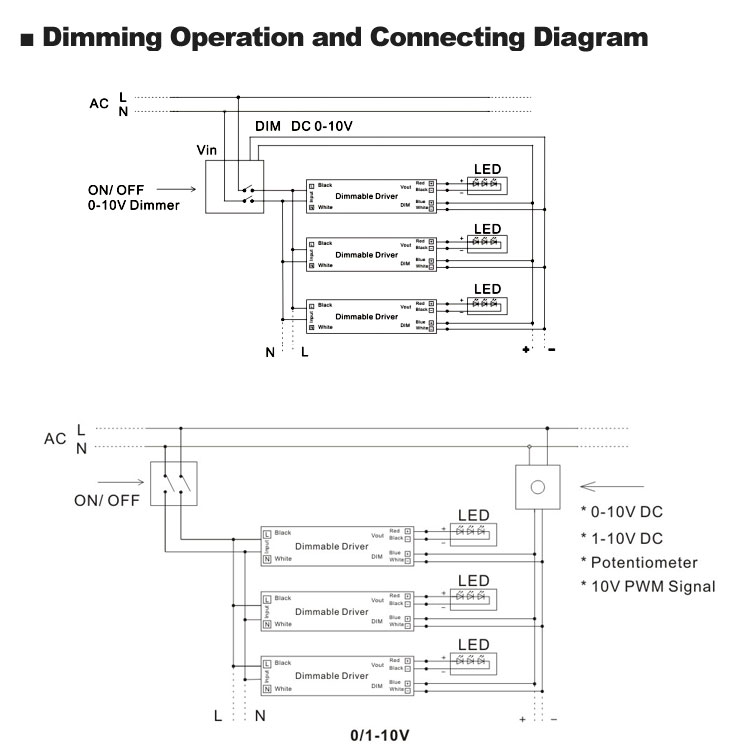

Dimming operation
Related Products
|

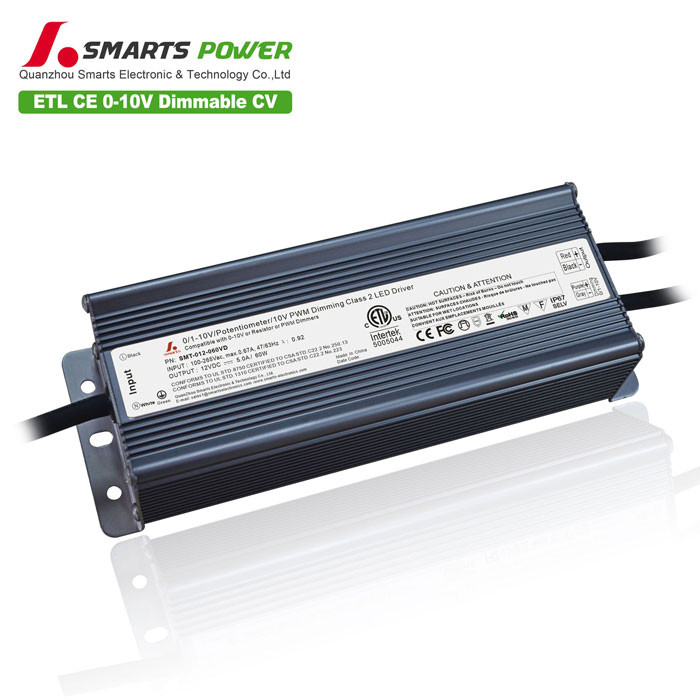

Mode：SMT-012-060VD intput voltage：170-265V AC
