60W pwm dimmable 600ma-2100ma adjustable constant current LED driver power supply

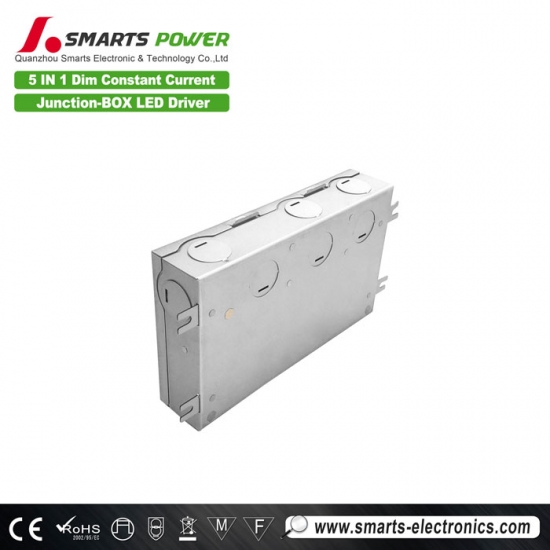

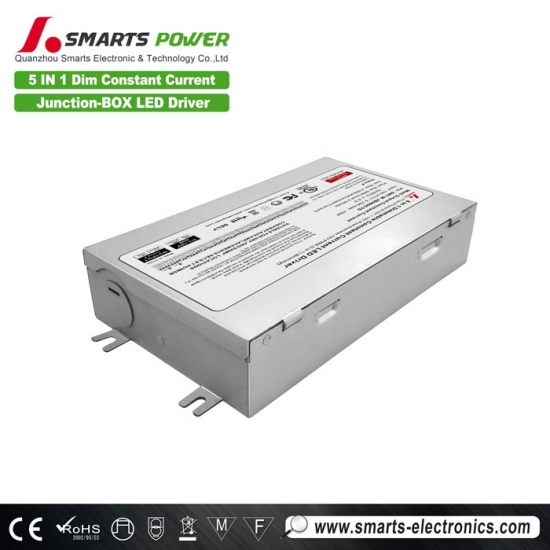

5 in 1 60w dimmable led power supply with constant current output mode. UL certified, in compliance with global safety lighting regulations, built-in active PFC function, power factor>0.96. Metal casing design, can well protect the power supply life, with 7 years warranty.

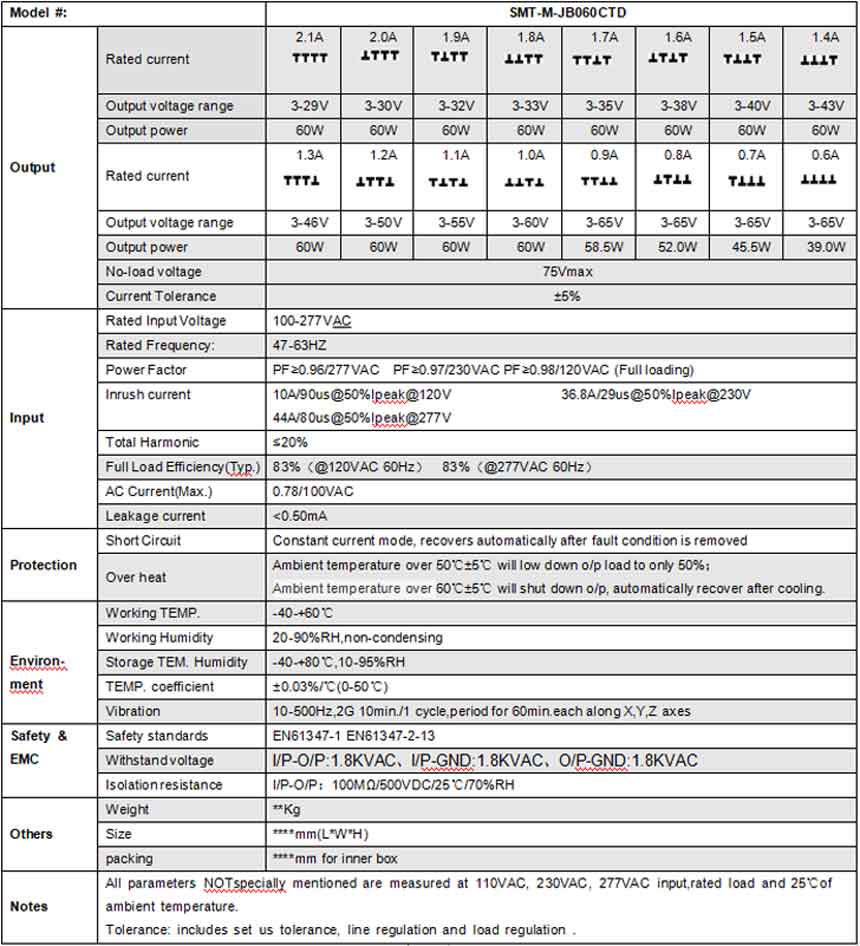

Specification
 |
 |
 |
 |
Mechanical Specification

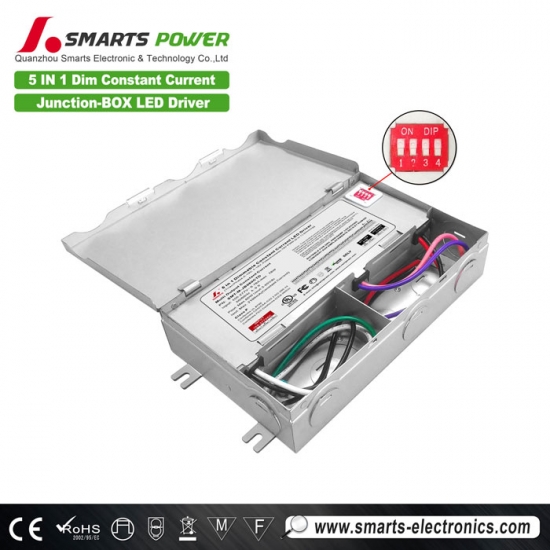

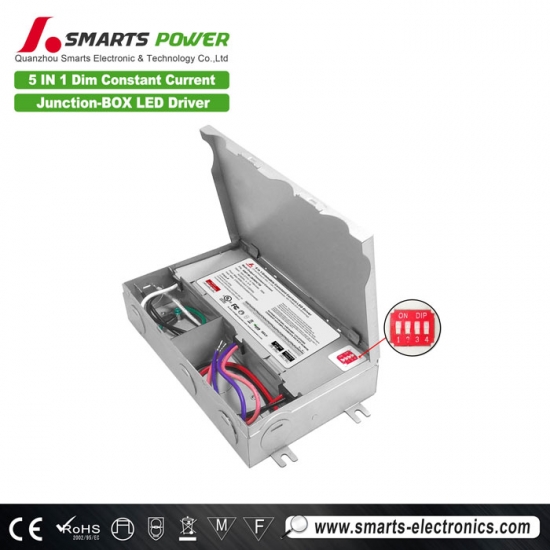

Input terminals "Black" and "White" to connect to AC L and N.
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation
Using TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2. Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Related Products

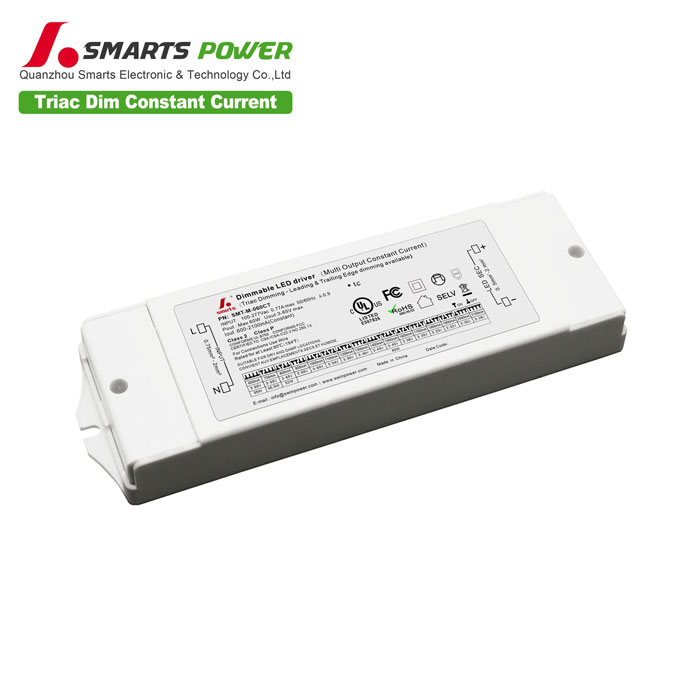

This 60W TRIAC dimmable LED driver has a dip adjustable output current function, a compact body, and easy and quick installation. The plastic shell design has an IP20 waterproof rating and is mainly suitable for indoor small space lighting projects.
