350ma-1400ma 40W constant current triac & 0 10v dimmable led driver power supply Junction Box

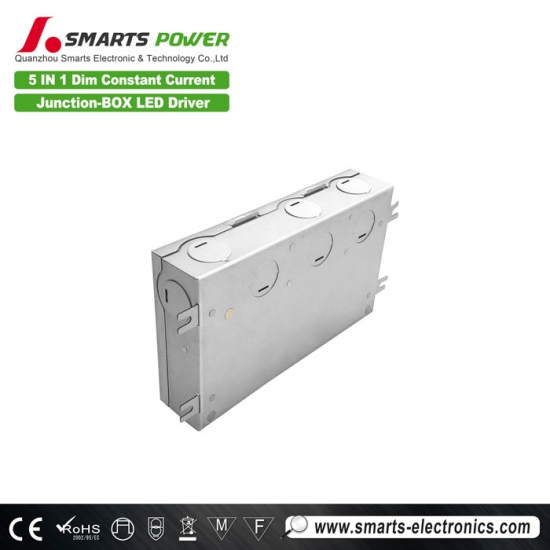

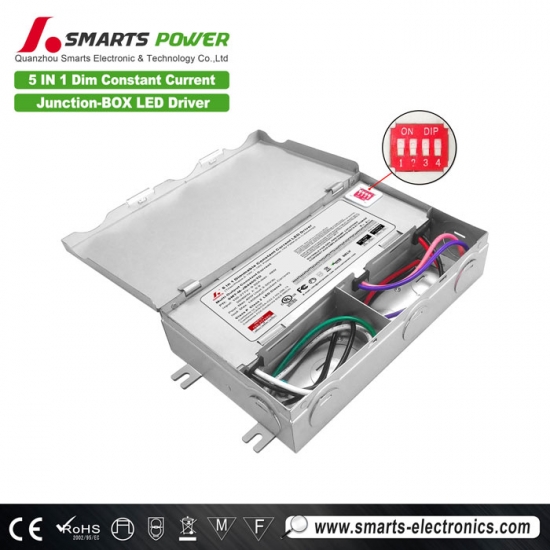

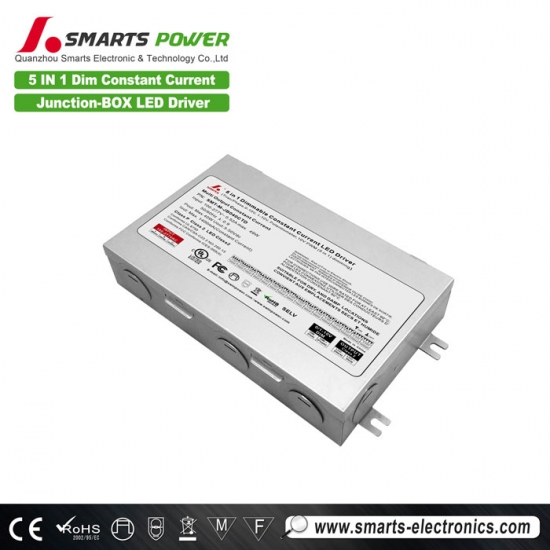

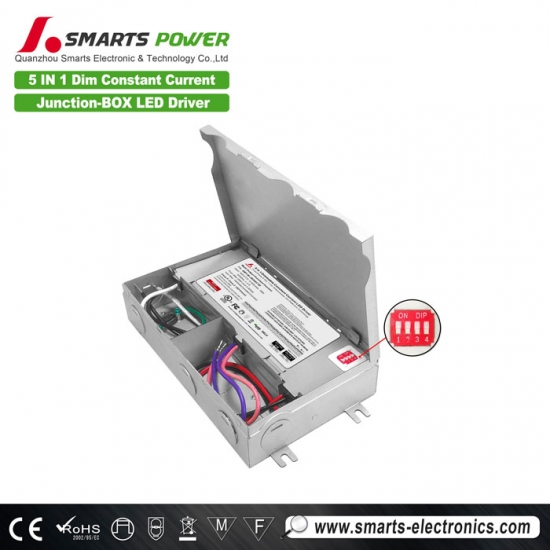

This 40W 5 in 1 dimmable led power supply has a built-in DIP switch adjustable function, users can adjust the output current in the range of 300ma-1400ma. It has short circuit/overload protection function. 7 years warranty

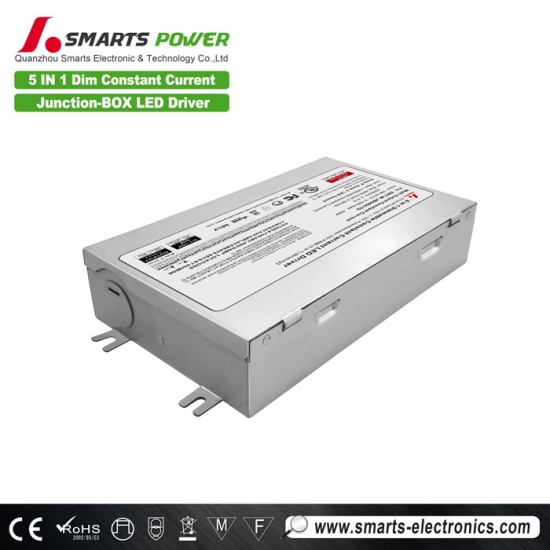

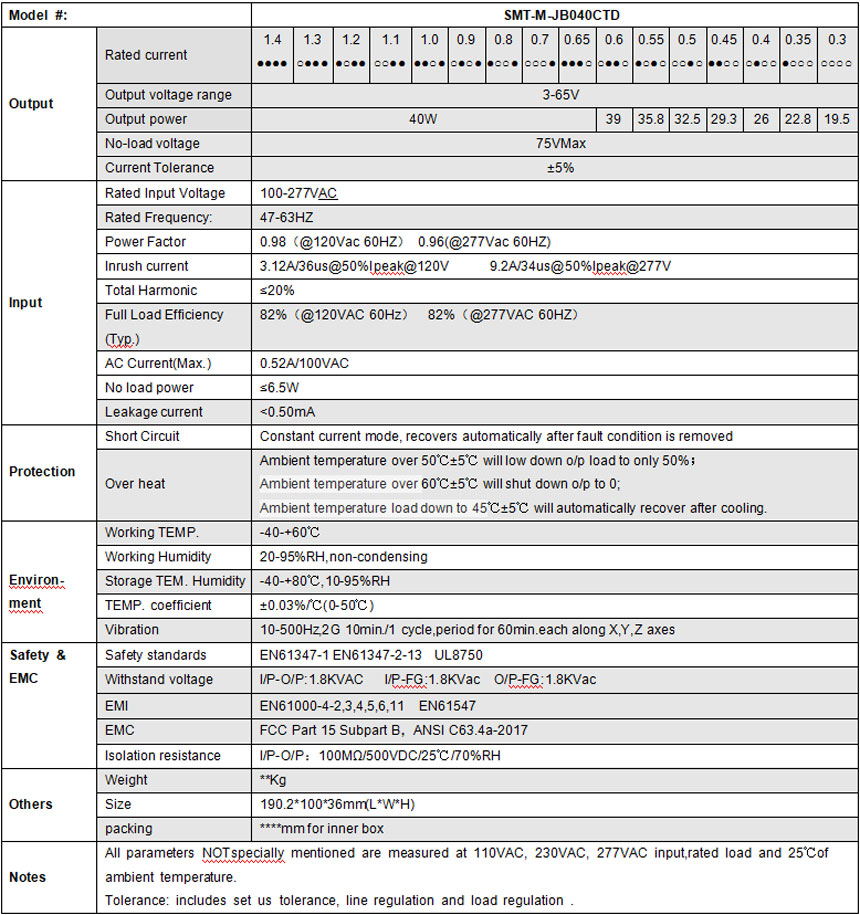

Specification
 |
 |
 |
 |
Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation
Using TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2. Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Related Products

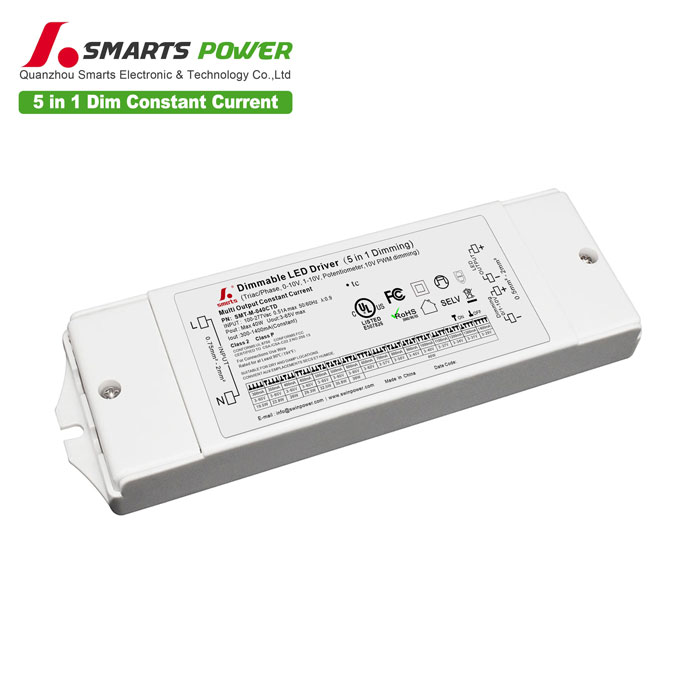

IP20 waterproof rating 40W 5 in 1 dimmable LED driver dimming range between 0-100%, flicker-free dimming, output current range between 300ma-1400ma. Suitable for indoor dry location lighting project installation, with 7-year warranty
Mode：SMT-M-040CTD intput voltage：100-277vac
Size : 159.5*43*20mm |
