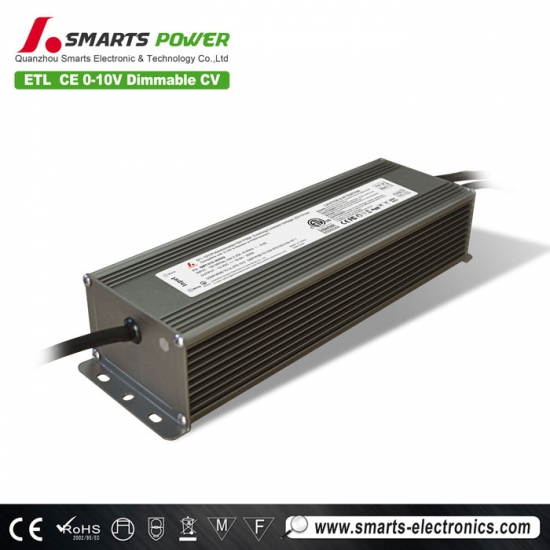

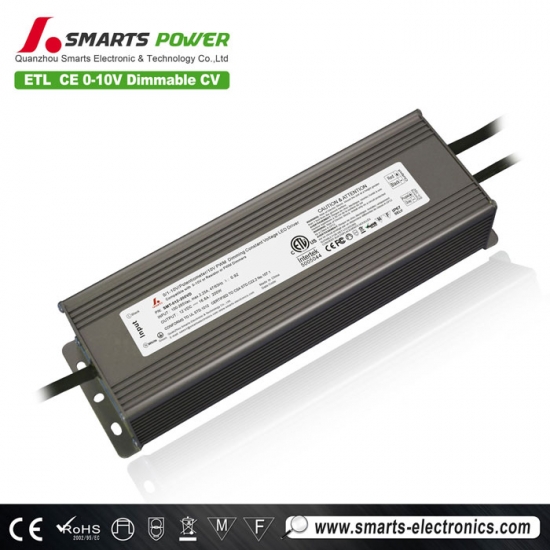

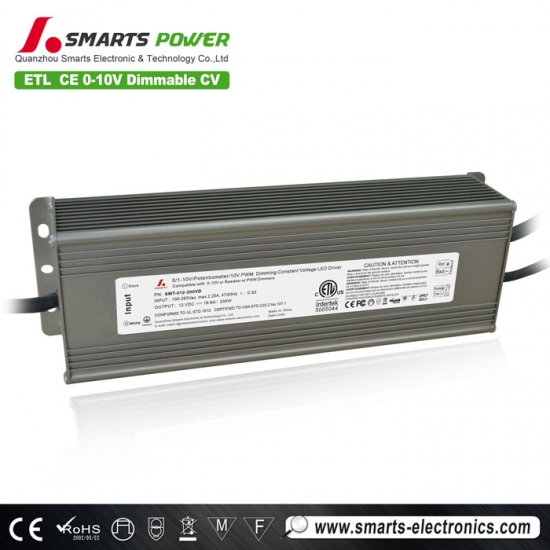

Waterproof IP67 cv 12vdc 200W 12V dc 0-10V dimmable constant voltage dimming LED driver
working mode : constant voltage type
Specifications
Ambient temp.:-20 degree~40 degree full load
Efficiency> 85%
PFC > 0.90
overload,over heat, over voltage, short circuit protection
CE,RoHS approval
We give 3 years warranty(We promise to replace new ones to you if there is any defective happen during the warranty period)
|
Model |
SMT-012-200VD |
SMT-024-200VD |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
|||
|
Rated current |
0～16.67A |
0～8.33A |
||
|
Rated power |
200W |
200W |
||
|
Input |
Voltage Range |
100-265VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor ( Typ.） |
PF≧0.90/120V / PF≧0.90/220V |
|||
|
Full Load Efficiency（Typ.） |
>88%(120V)/ >88%(220V) |
>88%(120V) / >88%(220V) |
||
|
AC Current（Typ.） |
2.104A@120V |
1.148A@220V |
||
|
Leakage current |
﹤0.9mA/120VAC / ﹤0.7mA/220VAC |
|||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||
|
Over voltage |
≦150VAC / ≦280VAC |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||
|
Environment |
Working TEMP. |
-40～+50℃ |
||
|
Working Humidity |
20～95%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
|||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||
|
Others |
Weight |
1.8Kg |
||
|
Size |
255*80*53mm（L*W*H） |
|||
|
packing |
440*295*145mm/8pcs/CTN 265*98*55 mm for inner box |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||
| label |
|
|||
 |
 |
 |
 |
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
