high power 200w 0-10v dimmable constant voltage 12v/24v led driver with 3years warranty
Features |
|
|
High efficiency,save energy ,protected environment Constant voltage design with high accuracy.International wide input voltage. output voltage 12v/24vselectable. Wattage: 20w-200w. High efficiency, save energy, protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation. Meet to safety standard and EMC. Assure LED stability long lift and light efficiency by constant voltage. Cooling by free air convection. 100% full load burn-in test. Brand electrotronic components. ROHS material. Suitable for LED lighting |
Product Description
Model
SMT-012-200VD
SMT-024-200VD
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
0～16.67A
0～8.33A
Rated power
200W
200W
Input
Voltage Range
100-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.90/120V / PF≧0.90/220V
Full Load Efficiency（Typ.）
>88%(120V)/ >88%(220V)
>88%(120V) / >88%(220V)
AC Current（Typ.）
2.104A@120V
1.148A@220V
Leakage current
﹤0.9mA/120VAC / ﹤0.7mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage
≦150VAC / ≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others
Weight
1.8Kg
Size
255*80*53mm（L*W*H）
packing
440*295*145mm/8pcs/CTN 265*98*55 mm for inner box
Notes
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

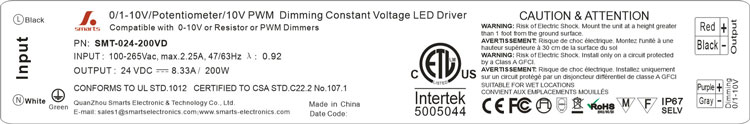

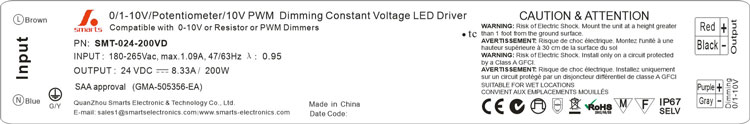

label
