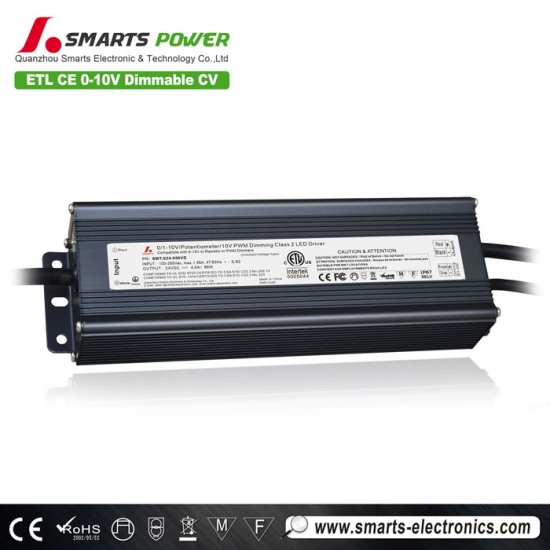

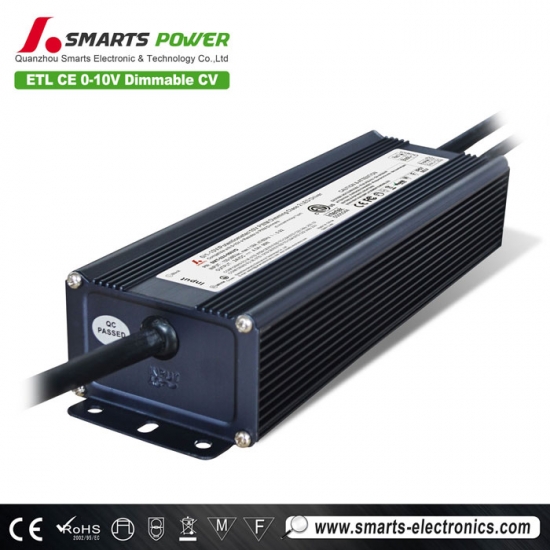

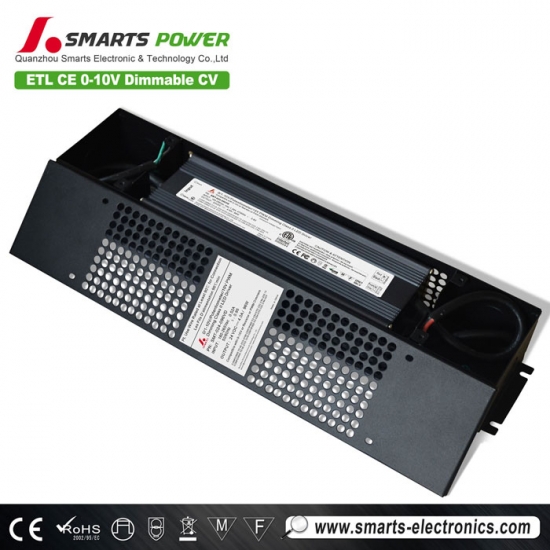

ETL FCC class 2 24v 96w 0-10v dimmable led driver

ETL FCC class 2 24v 96w 0-10v dimmable led driver

·Output constant voltage

·range :100-135/170-265VAC
·Built-in PFC function

·Efficiency >88% /  PF>0.9

·Protections:short circuit/over current/over voltage/over temperature

·Cooling by free air convection

·IP67 design for indoor or outdoor installations .

·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·Suitable for dry/damp/wet locations

·3 years warranty

 96w dimmable led driver Mechanical Specification

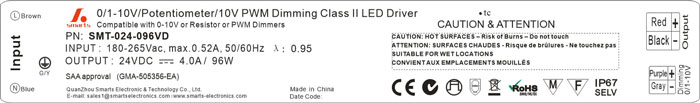

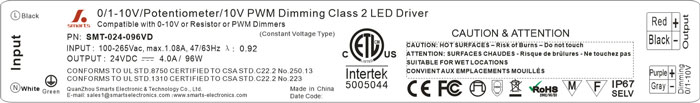

**Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

**Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)

**Output 18AWG*2C,Blown is output(V+),Blue is output(V-)

**Note: Any other requests we can customized.

 Dimming Operation

**Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

**Reference resistance value for output current adjustment (Typical)

 Derating Curve

**Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
