12v 30w constant voltage 0-10v led dimmable driver
Product Description
Product parameters
| Model | SMT-012-030VD | SMT-024-030VD | ||||||||||
| Single Output features | Constant voltage | 12vDC | 24vDC | |||||||||
| output current | 2.5Amp | 1.25Amp | ||||||||||
| output power | 30watt | 30watt | ||||||||||
| Ripple & Noise | 250mV | |||||||||||
| Current Regulation | ±3% | |||||||||||
| Starting time | 1000mS/230Vac, 3000mS/110Vac | |||||||||||
| Input | Voltage range | 100Vac-265Vac | ||||||||||
| Frequency range | 47Hz-63Hz | |||||||||||
| Power factor | PF>0.93/230Vac,PF>0.92/110Vac | |||||||||||
| Efficiency | 87%/110Vac , 86%/230Vac | |||||||||||
| Inrush Current | 20A/110Vac, 40A/230Vac | |||||||||||
| Leakage Current | <1mA/120Vac,240Vac | |||||||||||
| Protection | short circuit | |||||||||||
| Single Protection,Hiccup ,recovery after the fault removed. | ||||||||||||
| Over voltage | Protection mode:Limit highest voltage, recovery after the fault removed. | |||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | |||||||||||
| over load | Protection mode:Closed Output voltage,recovery after temperature automatic recovery. | |||||||||||

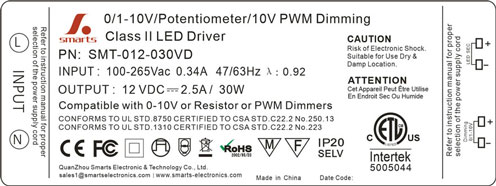

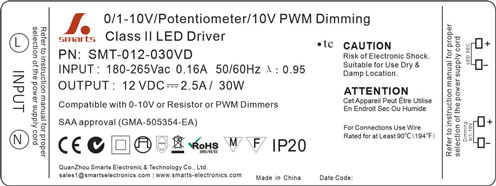

| Label |
|
|||||||||||
 |
 |
 |
 |
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
