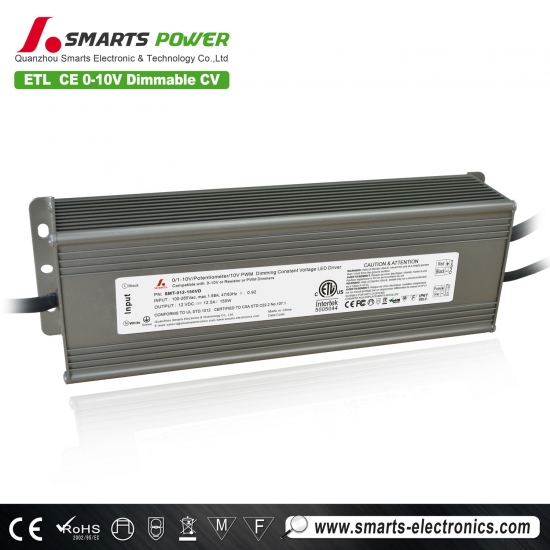

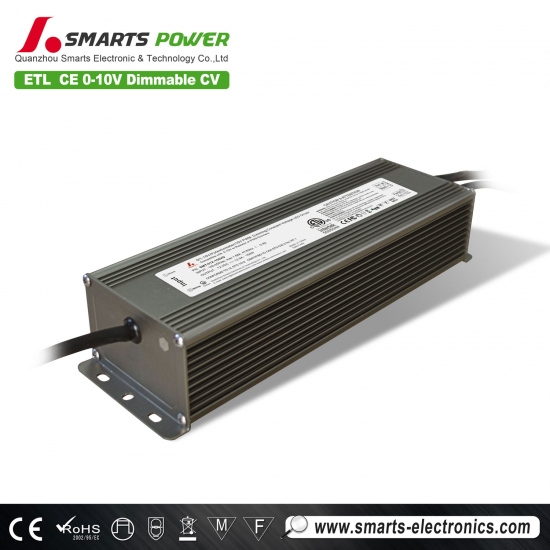

dimmable power 12v supply 180w led driver
|
Features |
|
|
High efficiency,save energy ,protected environment Constant voltage design with high accuracy.International wide input voltage. output voltage 12v/24vselectable. Wattage: 20w-200w. High efficiency, save energy, protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation. Meet to safety standard and EMC. Assure LED stability long lift and light efficiency by constant voltage. Cooling by free air convection. 100% full load burn-in test. Brand electrotronic components. ROHS material. Suitable for LED lighting |
Product parameters
| Model | SMT-012-180VD | SMT-024-180VD | ||||||||||
| Single Output features | Constant voltage | 12vDC | 24vDC | |||||||||
| output current | 15Amp | 7.5Amp | ||||||||||
| output power | 180watt | 180watt | ||||||||||
| Ripple & Noise | 250mV | |||||||||||
| Current Regulation | ±3% | |||||||||||
| Starting time | 1000mS/230Vac, 3000mS/110Vac | |||||||||||
| Input | Voltage range | 100Vac-265Vac | ||||||||||
| Frequency range | 47Hz-63Hz | |||||||||||
| Power factor | PF>0.93/230Vac,PF>0.92/110Vac | |||||||||||
| Efficiency | 87%/110Vac , 86%/230Vac | |||||||||||
| Inrush Current | 20A/110Vac, 40A/230Vac | |||||||||||
| Leakage Current | <1mA/120Vac,240Vac | |||||||||||
| Protection | short circuit | |||||||||||
| Single Protection,Hiccup ,recovery after the fault removed. | ||||||||||||
| Over voltage | Protection mode:Limit highest voltage, recovery after the fault removed. | |||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | |||||||||||
| over load | Protection mode:Closed Output voltage,recovery after temperature automatic recovery. | |||||||||||
 |
 |
 |
 |
