Product parameters
|
Model |
SMT-012-030VD |
SMT-024-030VD |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
voltage Accuracy |
±3% |
||
|
Current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Input |
Voltage Range |
100～265VAC |
|
|
Frequency Range |
47～63HZ |
||
|
PF(Typ.） |
PF>0.90 |
||
|
Full Load Efficiency（Typ） |
>88% |
>88% |
|
|
AC Current (Typ.） |
0.34A |
0.17A |
|
|
Leakage current |
﹤0.7mA/110-220VAC |
||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over voltage |
≦280VAC |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environme |
Working TEMP. |
-40～+50℃ |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP40 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||
|
Others |
Weight |
0.4Kg |
|
|
Size |
180*60*35mm（L*W*H） |
||
|
packing |
355*215*215mm/20pcs /CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

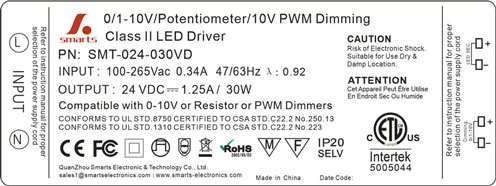

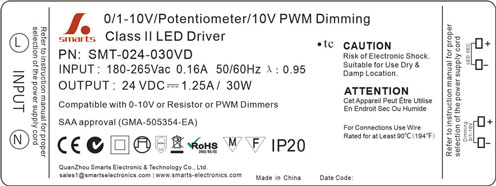

| label |
|
||
 |
 |
 |
 |
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
