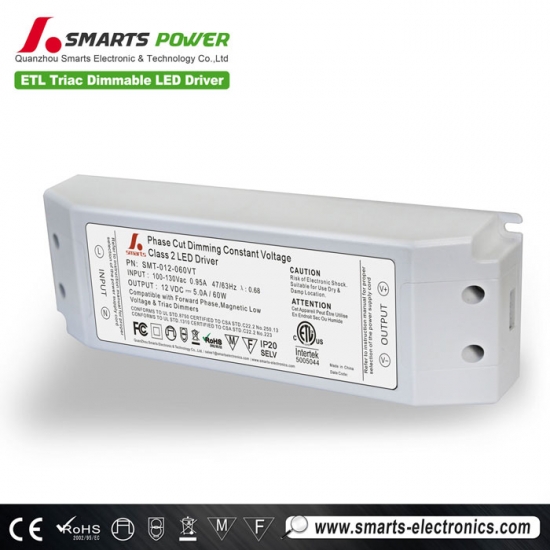

ETL listed Triac Dimmable 12 Volt 60 Watt Indoor Led Strip Driver
Not limitation Triac Dimmable LED Driver.Compatible with Forward phase, Triac,MLV Dimmers or Reverse phase,Triac,dimmer.
LUTRON,CLIPSALI,DYNALITE,LEVITON,VARILIGHT,BTICINO.PHILIPS,CRESTRON,RAKO,JUNG,V-PRO,BUSCH-JAEGER,BERKER,GIRA,ELKO,EPV,etc. brand of dimmer are all sitable for the type triac dimmable led driver.
|
model |
SMT-012-060VT |
SMT-024-060VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
5.00A |
2.50A |
|
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
90~135V AC/170~265V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.95/110V,PF>0.96/170V,PF>0.95/220V,PF>0.93/265V |
||
|
Full Load Efficiency(Typ.) |
>85% |
>85% |
|
|
AC Current(Typ.) |
0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC |
||
|
Leakage current |
<0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
About 1.0Kg |
|
|
Size |
210*68.5*43mm(L*W*H) |
||
|
packing |
324*298*176mm (L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
|
||
 |
 |
 |
 |
output
DC Voltage 12V/24V
Voltage Tolerance ±0.5V
Rated power 60W
Voltage Range 100～130V/170-265VAC
Frequency Range 50～60HZ
Working TEMP. -40～+60℃
Working Humidity 20～90%RH,non-condensing
Storage TEM.,Humidity -40～+80℃，10～95%RH
TEMP.coefficient ±0.03%/℃（0～50℃）
Vibration 10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety standards EN-60950-1, EN61347-1/-2/-13
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Weight About 1.0Kg
Size 210*68.5*43mm（L*W*H）
packing 324*298*176mm （L*W*H）

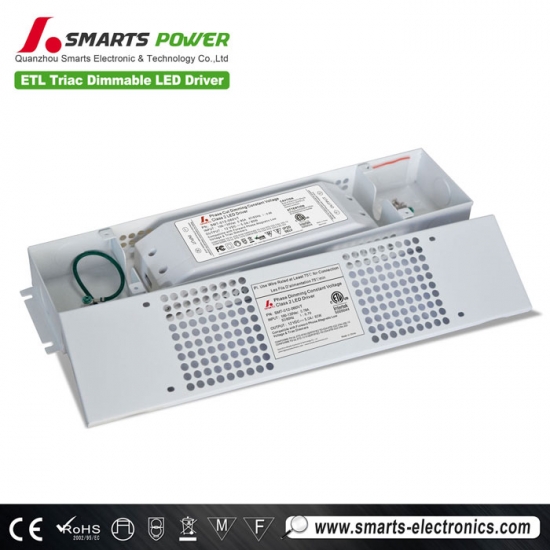

60W triac dimmable led driver Mechanical Specification
※Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
※Output Red is（DIM+）,Black is（DIM-）
※Note: Any other requests we can customized.
Dimming Operation of 60w dimmable led strip driver
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or tailing edge triac dimmers.
※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
