Product parameters
|
Item No. |
Input voltage(vAC) |
Working Frequency |
Output voltage |
Output Current |
power(Watt) |
Working Temp. |
IP rate |
|
SMT-012-036VT |
90-135vAC 170-265vAC |
47~63Hz |
12V |
3A |
36W |
-25~50°C |
IP40 |
|
SMT-024-036VT |
90-135vAC 170-265vAC |
47~63Hz |
24V |
1.5A |
36W |
-25~50°C |
IP40 |

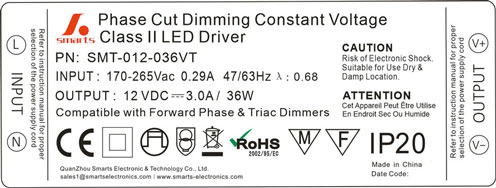

| Label |
 |
||||||
 |
 |
 |
 |
Specifications
- working mode: constant voltage
- dimming mode: traic dimmable
- Case material: plastic housing
- Waterproof rate: IP40
- produt cord:connecting terminal(IP20) / 18AWG*20CM
- 3 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
