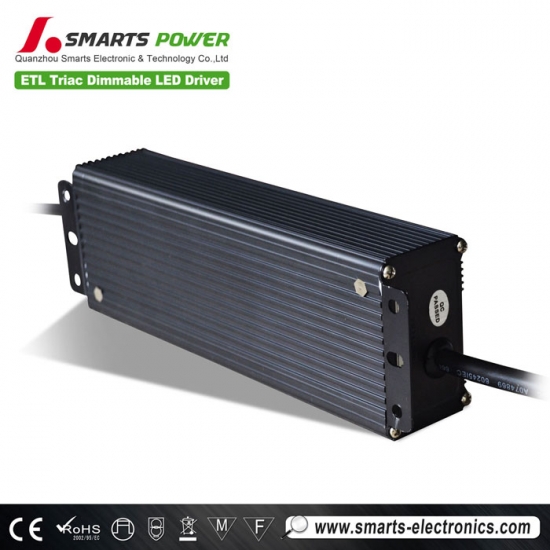

12v 24v constant voltage led strip/mr16 led triac dimmable driver power supply
|
Features |
|
|
High efficiency,save energy ,protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation.Meet to safety standard and EMC Assure LED stability long lift and light efficiency by constant voltage. Protections:Short circuit/Overload/Over temperature Cooling by free air convection 100% full load burn-in test. Suitable for LED lighting |
model
SMT-012-100VT
SMT-024-096VT(class 2)
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
8.33A
4.0A
Rated power
100W
96W
Input
Voltage Range
100~130V AC/170～265V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.93/110V,PF≧0.94/170V,PF≧0.95/220V,PF≧0.95/265V
Full Load Efficiency(Typ.)
>83%
>83%
AC Current（Typ.）
0.61A/110VAC 0.58A/170VAC 0.46A/220VAC 0.41A/265VAC
Leakage current
﹤0.25mA/110V/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage
≦140VAC(90~135V) , ≦270VAC(170~265V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
Others
Weight
1.3Kg
Size
230*70*46mm（L*W*H）
packing
329*279*176mm , 10PCS/ctn
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

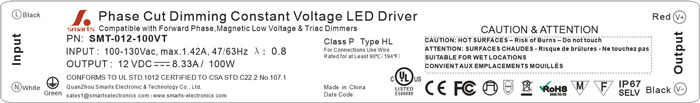

Label
Safety
|
model |
SMT-012-100VT |
SMT-024-096VT(class 2) |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
8.33A |
4.0A |
|
|
Rated power |
100W |
96W |
|
|
Input |
Voltage Range |
100~130V AC/170～265V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.93/110V,PF≧0.94/170V,PF≧0.95/220V,PF≧0.95/265V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>83% |
|
|
AC Current（Typ.） |
0.61A/110VAC 0.58A/170VAC 0.46A/220VAC 0.41A/265VAC |
||
|
Leakage current |
﹤0.25mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
230*70*46mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
|
||
|
|
|
|
|
Safety Standards : IEC 61347 –2–11 , EN55015,EN61000
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
