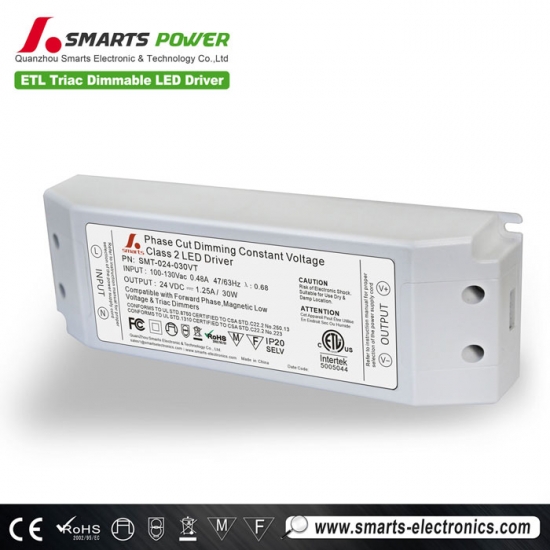

24vdc triac dimmable 30w mr16 24v dimmable led driver/power supply
|
Features |
|
|
Description
model
SMT-012-030VT
SMT-024-030VT
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
1.66Amp
0.83Amp
Rated power
30W (class 2)
30W(class 2)
Input
Voltage Range
90-135VAC, 180～250V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.92/110V ; PF≧0.93/220V ; PF≧0.935/250V
Full Load Efficiency（Typ.）
>83%
>84%
AC Current（Typ.）
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
Leakage current
<0.27mA/110VAC; ﹤0.25mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Current
1.4 Times output current
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-2-13, EN62493,
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
Others
Weight
0.40Kg
Size
180*60*35mm（L*W*H）
packing
355*215*215mm 20pcs/ctn
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .

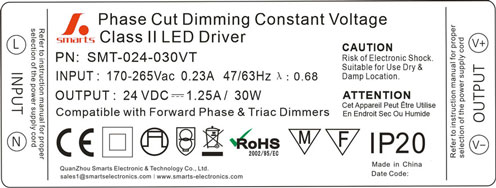

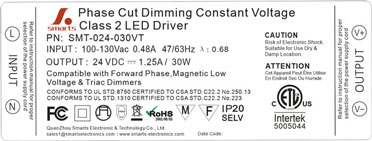

Label
Environment parameter
- Working temperature:-40 -80°C
- Store temperature:-40 -85°C
- Working humidity:10-90%
- Lifespan:(MTBF)50,000 hours
- Case machine specifications
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
