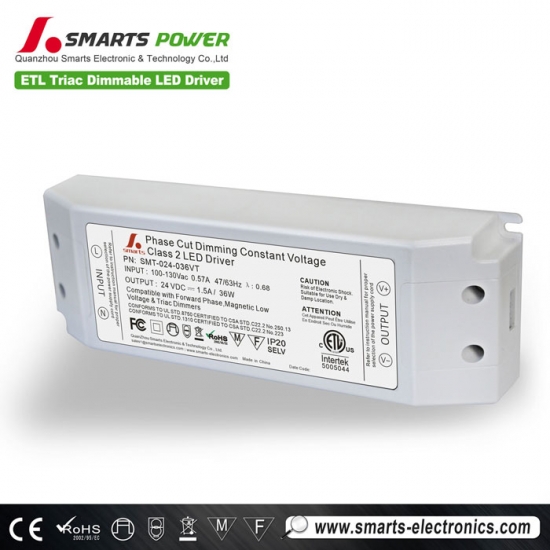

constant voltage transformer 24v 36w triac dimmable led power supply
Features
| input Channel | leading edage and tailing eadge dimmers | |||||||||||
| SMT-012-036VT | SMT-024-036VT | |||||||||||
| Single Output features | Constantvoltage | 12vDC | 24vDC | |||||||||
| output current | 3.0Amp | 1.5Amp | ||||||||||
| output power | 36watt | 36watt | ||||||||||
| Ripple & Noise | 250mV | |||||||||||
| Current Regulation | ±3% | |||||||||||
| Starting time | 1000mS/230Vac, 3000mS/110Vac | |||||||||||
| Input | Voltage range | 90Vac-135Vac, 170-265Vac | ||||||||||
| Frequency range | 47Hz-63Hz | |||||||||||
| Power factor | PF>0.90/220Vac,PF>0.91/110Vac | |||||||||||
| Efficiency | 87%/110Vac , 88%/230Vac | |||||||||||
| Inrush Current | 20A/110Vac, 40A/220Vac | |||||||||||
| Leakage Current | <1mA/240Vac | |||||||||||
| Protection | short circuit | |||||||||||
| protection | ||||||||||||
| Protection mode:Single Protection,Hiccup ,recovery after the fault removed. | ||||||||||||
| Protection mode:Limit highest voltage, recovery after the fault removed. | ||||||||||||
| physical size: |
180*60*34mm |
|||||||||||
| Over temperature | 105oC±5 oC ( Internal radiator's temperature) | |||||||||||
| Protection mode:Closed Output voltage,recovery after temperature automatic recovery | ||||||||||||

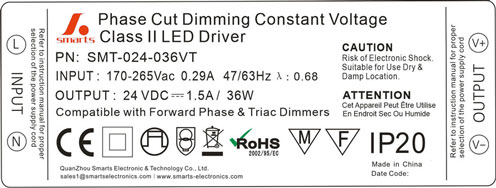

| Label |
 |
|||||||||||
 |
 |
 |
 |
Environment
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
