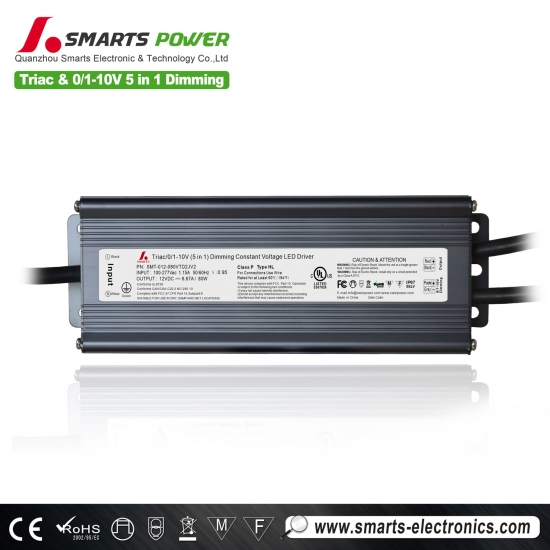

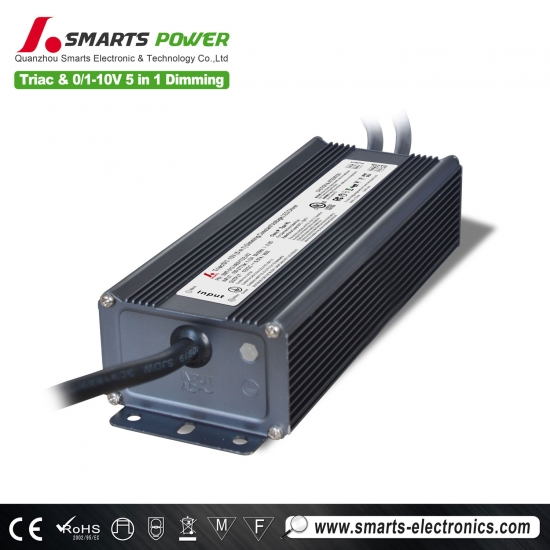

ELV MLV dimmable led power supply 12v 80w aluminum case low voltage
Dimmable led power supply 12v universal dimming LED lighting driver provides the utmost in reliability, performance and versatility. This electronic, solid-state power supply is also compatible with the Armacost low-voltage 12-volt DC dimmers.
Product parameters
model
SMT-012-080VTD2JV2
SMT-024-080VTD2JV2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
6.66A
3.33A (class 2)
Rated power
80W
Input
Voltage Range
100~130V AC/170~265V AC
Frequency Range
47~63HZ
Power Factor ( Typ.)
PF≧0.95/110V,PF≧0.96/170V,PF≧0.95/220V,PF≧0.93/265V
Full Load Efficiency(Typ.)
80%@120VAC 82%@277VAC
82%@120VAC 85%@277VAC
THD(Typ. ) @ full load
<20%@120VAC &277VAC
AC Current(Typ.)
1.15A
Inrush Current (Typ.)
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
Leakage current
﹤0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Load
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40~+60℃
Working Humidity
20~90%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 + UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
1.1Kg
Size
230*70*43mm(L*W*H)
packing
Carton size:340*275*170mm , 10pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

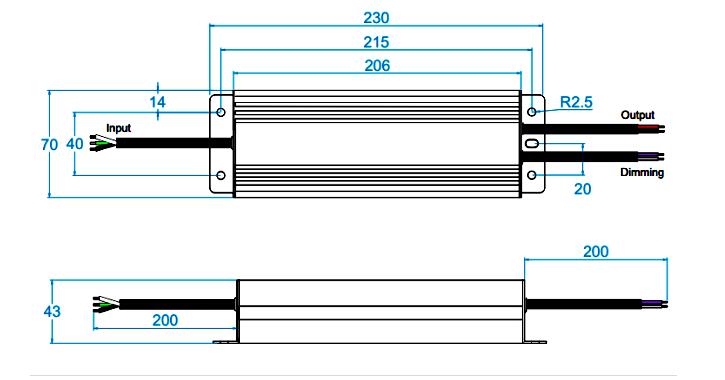

Mechanical Specification
Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Output cable 2*14AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-). (noted that 12V 300W is with 2 group of 2*14AWG output wires to separate the output current.)
Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

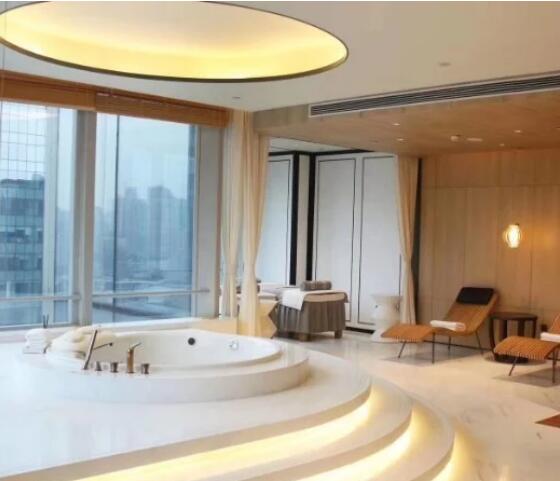

Compatible Strip Lighting Type
LED Canada Light's variable luminous color strip lighting are completely coated in flexible plastic, strong weather resistance, easy to make graphics, text and other modeling after installed with dimmable low voltage transformer.
Related Products
For direct wire installations dimmable led power supply 12v. use NM 18AWG 2C cable to tie in with 120-volt AC line voltage. Uses desirable soft start on and fade off technology

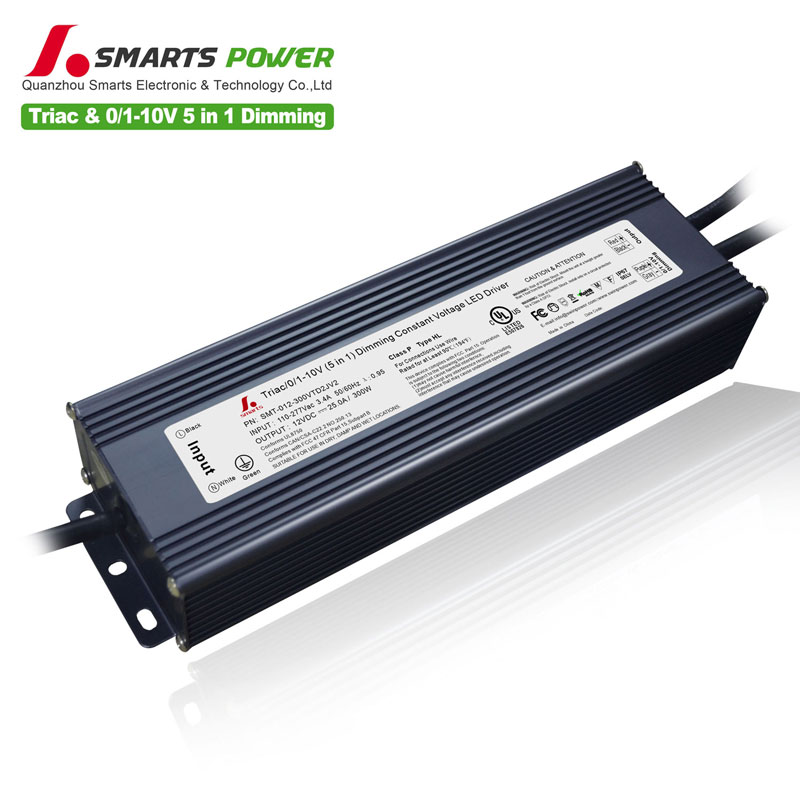

Mode:SMT-012-300VTD2JV2 |
