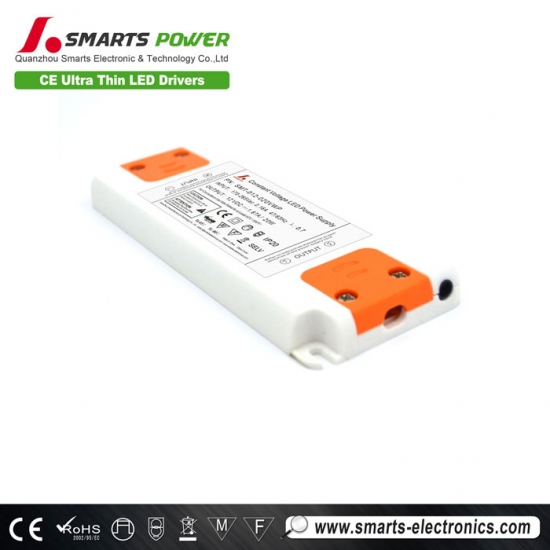

CE Certification Small LED Driver 220v 20w
This small led driver features an IP40 rated non-waterproof design, making it suitable for indoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
SCREW TERMINAL CONNECTIONS for easy installation to electrical code. LED Driver 20w have Super slim size / 127.5*50*12mm for your LED Light projects which limited with space.
This small led driver features an IP40 rated non-waterproof design, making it suitable for indoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
SCREW TERMINAL CONNECTIONS for easy installation to electrical code. LED Driver 20w have Super slim size / 127.5*50*12mm for your LED Light projects which limited with space.
|
Features for led driver 220v:
|

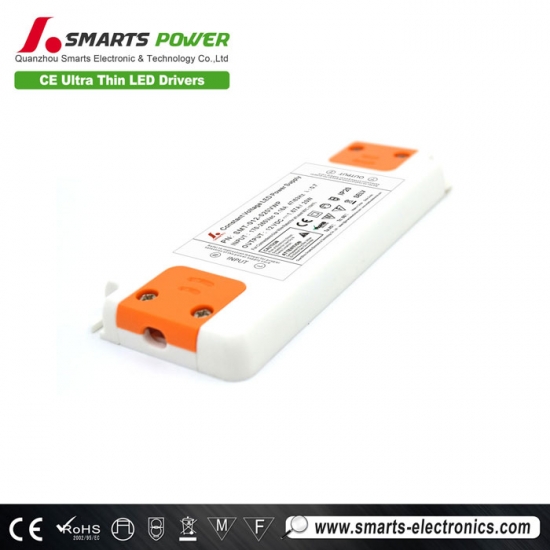

Details for small led driver:
|
|
● IP44 design for indoor installations ● Protections:Short circuit/Overload/Over temperature ● Cooling by free air convection ● 100% full load burn-in test ● Suitable for LED lighting ● Products through CE,RoHS Certification ● 2 years warranty |
 |
|

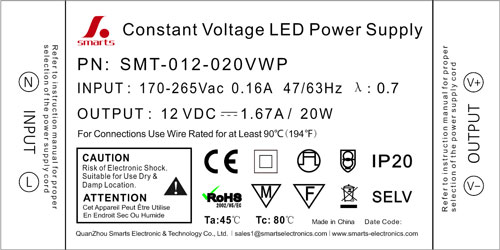

Label
|
|
Specifications for led driver 20w :
| MODEL | SMT-012-020VWP | SMT-024-020VWP | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1.66Amp | 0.83Amp | |||
| VOLTAGE RANGE |
|
|
|
|
|
| RATED POWER | 20Watt | ||||
| RIPPLE&NOISE(max) | 300mV | ||||
| VOLTAGE TOLERANCE | ±5% | ||||
| LINE REGULATION | ±1% | ||||
| LOAD REGULATION | ±2% | ||||
| INPUT | VOLTAGE RANGE | 200-240VAC | |||
| FREQUENCY RANGE | 47-63Hz | ||||
| POWER FACTOR(Typ.) |
|
|
|
|
|
| EFFICIENCY(Typ.) | ﹥83% | ||||
| AC CURRENT(Typ.) | 0.18A/220VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 2.8A | 1.2A | |||
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
 |
|
NOTE for led driver 220v:
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

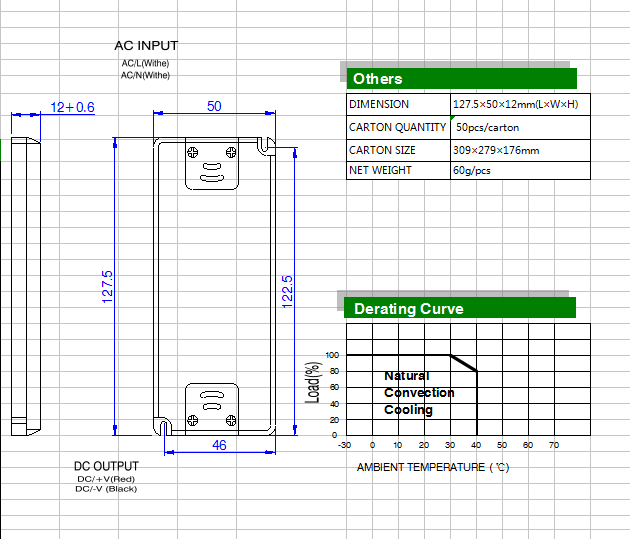

Mechanical Specification for small led driver
