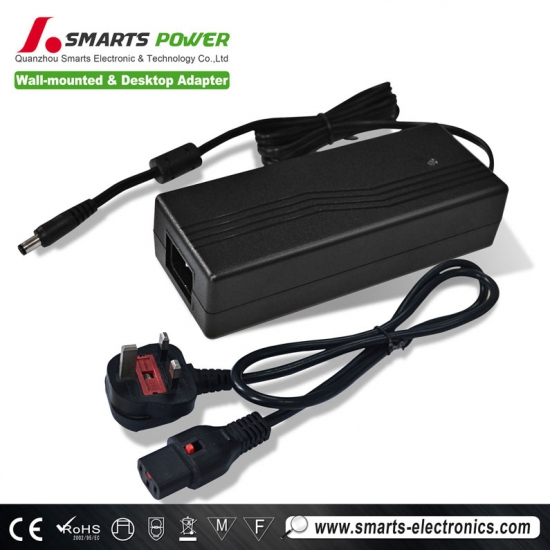

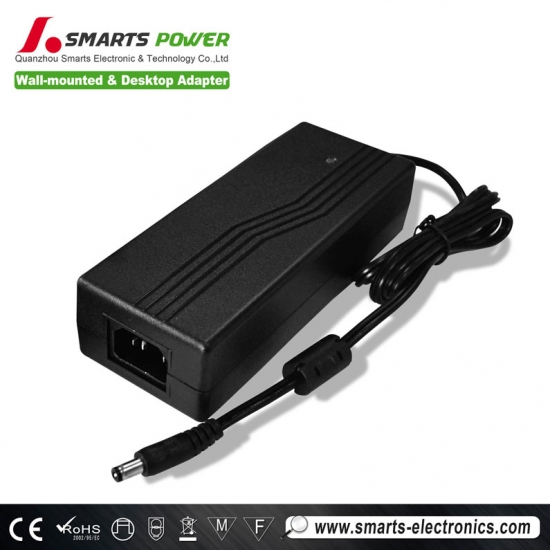

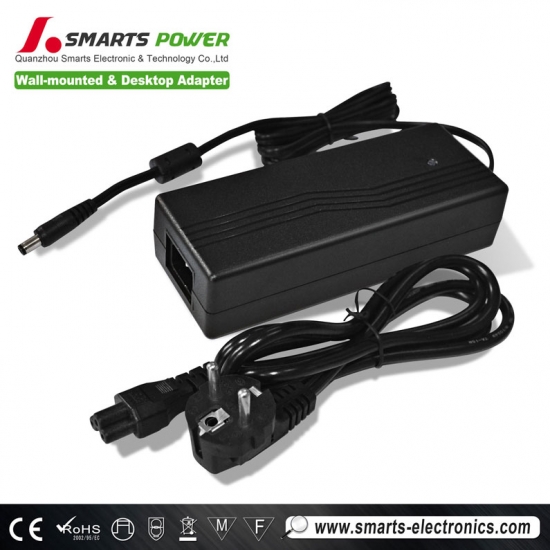

90W power adapter for desktop DC 24V constant voltage
Feature:
AC-DC power adapter
output: ,24v ; Universal AC input:100-240v;47-63Hz
Low ripple&noise regulation
Ac cord;EU standard ac plug,
DC cord:1.2m EU standard cord with male plug
Protections: Short circuit / Overload
No load power consumption < 0.5W /Over voltage
2 or 3 pole US / European type plug
Fully enclosed plastic case IP20
Class II power (without earth pin)
CE approval
1.5 years warranty
desktop type LED strip power adapter:
• 2 or 3 pole AC inlet • Fully enclosed plastic case
• Class I power (with earth pin) • Pass LPS for 16~48V
• Full output 5V~48V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals: CE
Over voltage • 18 months warranty
General Specification:
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ........... Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time............................... 16ms at full load
Withstand voltage...................... I/P-O/P: 42VDC, 1minute
Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
Item No.
output voltage
current
power
Tol.
R&N
Effi.
IP Rate
SMT-012-90VP
12V
7.5A
90W
±3%
80mV
>81%
IP20
SMT-024-90VP
24V
3.75A
90W
±2%
180mV
>81%
IP20
