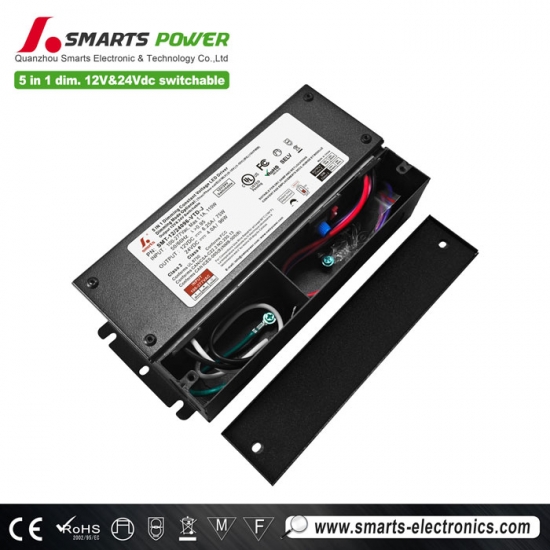

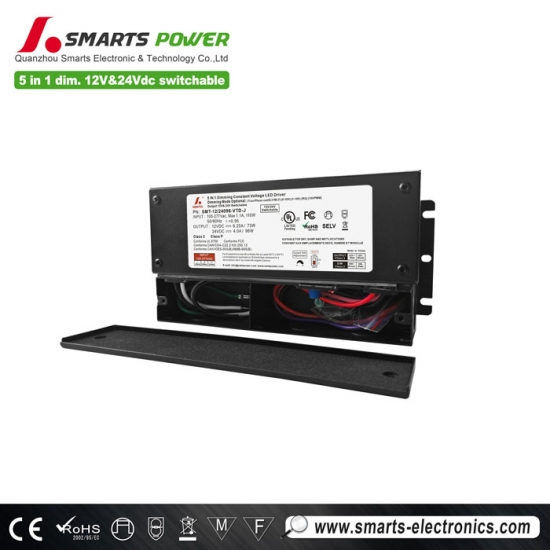

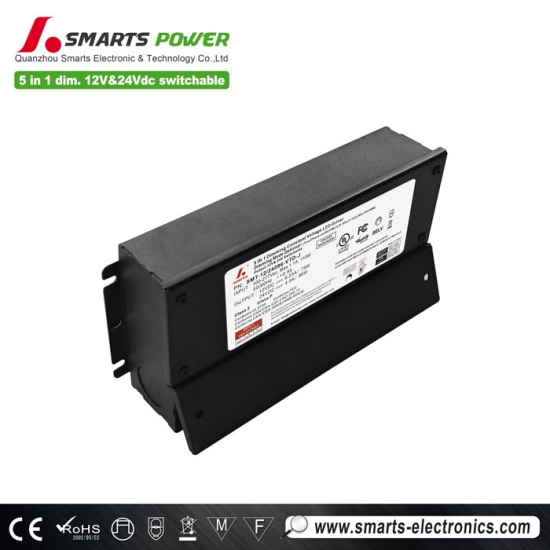

12/24v/48v triac & 0 10v dimmable led strip light driver power supply with Junction Box
Smartspower's new upgraded Triac & 0-10V (5 in 1) Dimming Output Voltage Switchable Constant Voltage LED Driver 96W. Built-in active PFC function. Working efficiency up to 91%. Full iron shell protection, natural air cooling. Comply with global safety lighting regulations. 7-year warranty
Specification
| Model | SMT-12&24096-VTD-J | SMT-24&48096-VTD-J | |
| Certificate | UL / cUL / FCC / Class P / Class 2/RoHS/SELV | ||
| Output | DC Voltage | 12V/24V | 24V/48V |
| Voltage Tolerance | ±2% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤0.5% | ≤0.5% | |
| Rated current | ≤2% | ≤2% | |
| Rated power | 12V-75W ; 24V-96W; | 24V-75W ; 48V-96W; | |
| Voltage Ripple | 550mv | 960mv | |
| Overshoot voltage | <3%(full load) | <3%(full load) | |
| Output volt Adjustment | 12-13V 24-26V | 24-26V 48-50V | |

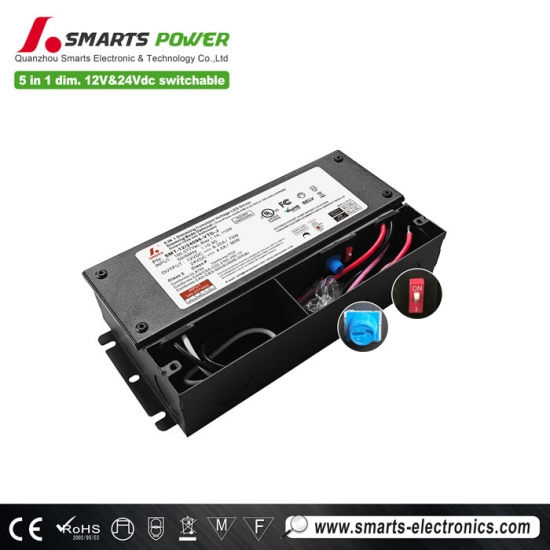

| Output mode selection |
in the "ON" position is 12v, in the "1" position is 24v, |
in the "ON" position is 24v, in the "1" position is 48v, |
|
|
Switching the output volt requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. |
|||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.97@277VAC |
>0.98@120VAC >0.97@277VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | ||
| Efficiency(Typ.) @ full load |
12v,≥87%@277VAC 24v,≥91%@277VAC |
24v,≥86%@277VAC 48v,≥92%@277VAC |
|
| AC Current (Max.) | ≤1.0A @120VAC ≤0.43A@277VAC | ||
| Standby power | ≤0.5W | ||
| Inrush Current (Typ.) | 51A,208us@50%Ipeak 120VAC 118A,452us@50%Ipeak 277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | |
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | ||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | ||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||
| EMC Immunity | FCC/ICES do not request this test | ||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | ||
| Others | Net Weight | 1.06Kg | |
| Dimension | 188*95.4*42.7mm(L*W*H) | ||
| Packing | 415*265*270mm 20 pcs / CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
|
4. Default states: The output mode is PWM output by default. The dimming curve is a gamma2.2 curve. |
|||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | |||
 |
 |
 |
 |

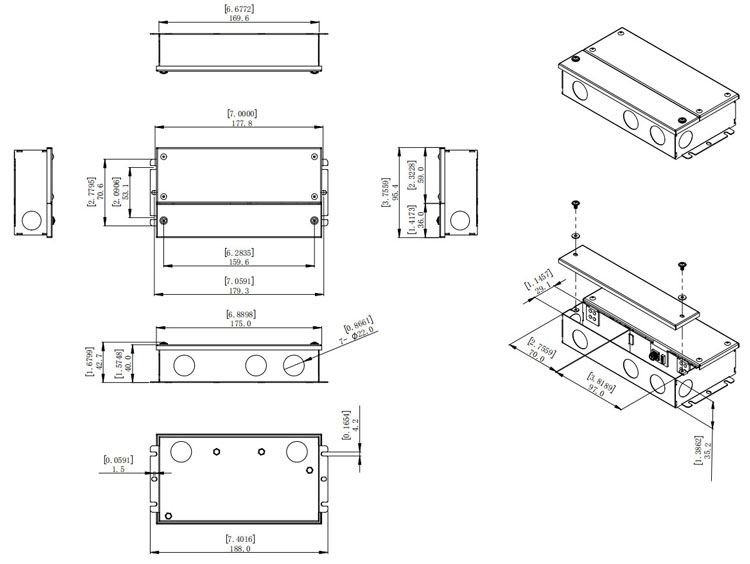

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 7 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 15 | |
| 25A | 19 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 36 | |
| 25A | 45 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

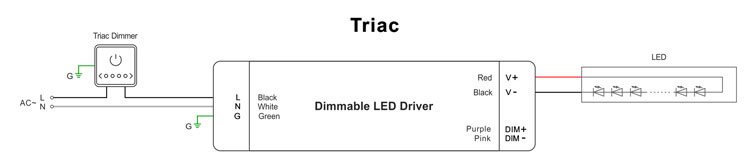

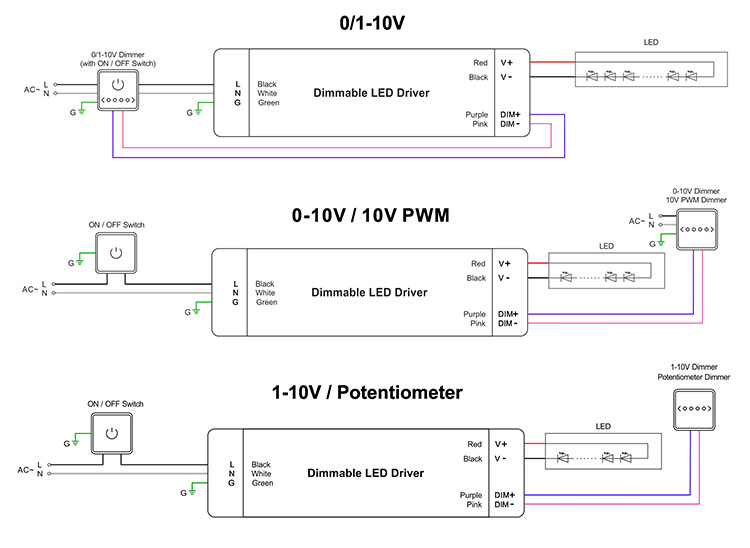

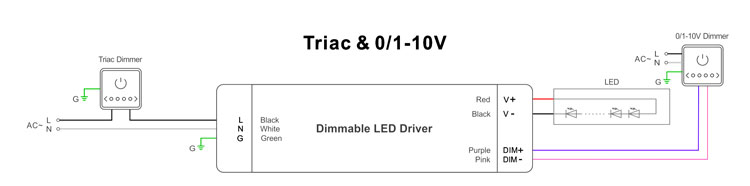

Dimming Operation
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
