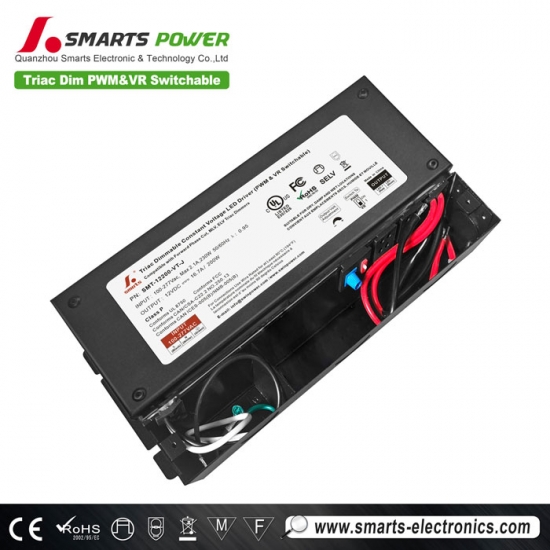

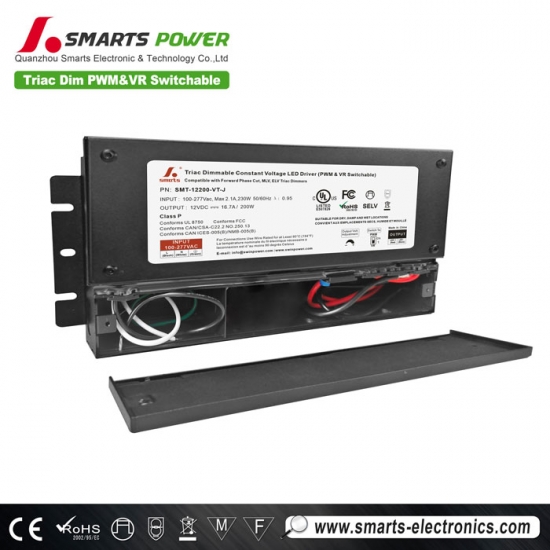

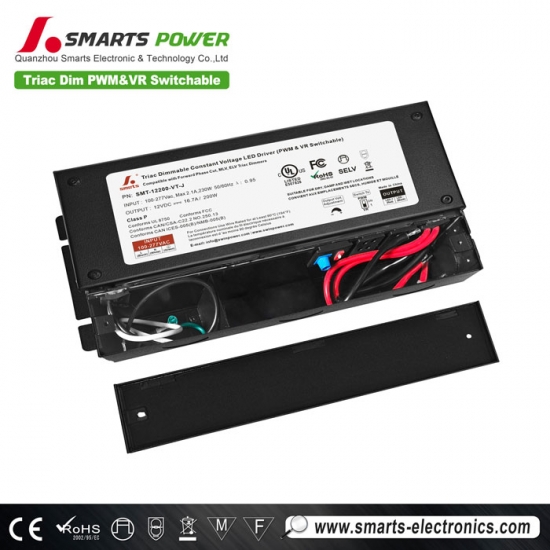

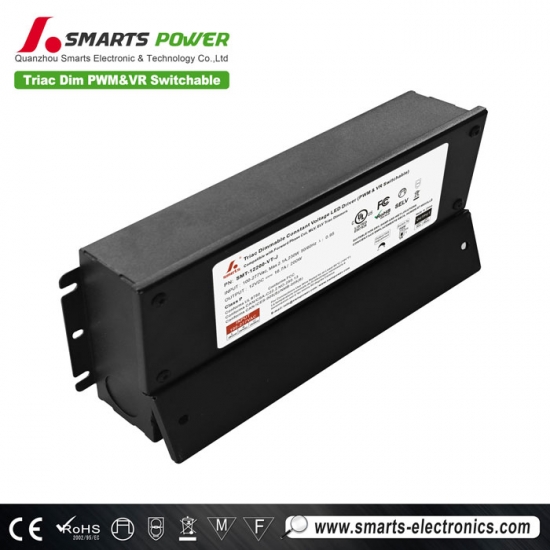

UL certification 200w 12v/24v triac dimmable led strip driver power supply price
New upgraded 120-277vac triac dimmable 200W led power supply integrated with junction box, minimum load is 20%. Suitable for led lighting and moving sign applications. With 7 years warranty
Specification
| Model | SMT-12200-VT-J | SMT-24200-VT-J | SMT-48200-VT-J | |
| Certificate | UL / cUL / FCC / Class P | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2.5% | ±1.25% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Voltage Ripple | 250mVp-p | 250mVp-p | 250mVp-p | |
| Overshoot voltage | <5%(full load) | <20%(full load) | <10%(full load) | |
| Output volt Adjustment | 12-13V | 24-26V | 48-50V | |
| Output mode selection | The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" position represents the VR (Modulation of DC Voltage) mode. | |||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | ||||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
>0.98@120VAC >0.96@277VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load |
≥86.5%@120VAC ≥90%@277VAC |
≥89%@120VAC ≥92%@277VAC |
≥90%@120VAC ≥92%@277VAC |
|
| AC Current (Max.) | ≤2.2A @120VAC ≤0.91A@277VAC | |||
| Standby power | ≤0.5W | |||
| Inrush Current (Typ.) | 40.8A, 50%, 480us @120VAC; 96.7A, 50% 192us @277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 1.35KG | ||
| Dimension | 205.4*118*42.7mm(L*W*H) | |||
| Packing | 293*260*265cm 10 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||
|
4. Default states: The output mode is PWM output by default. The dimming curve is a gamma2.2 curve. |
||||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
 |
 |
 |
 |

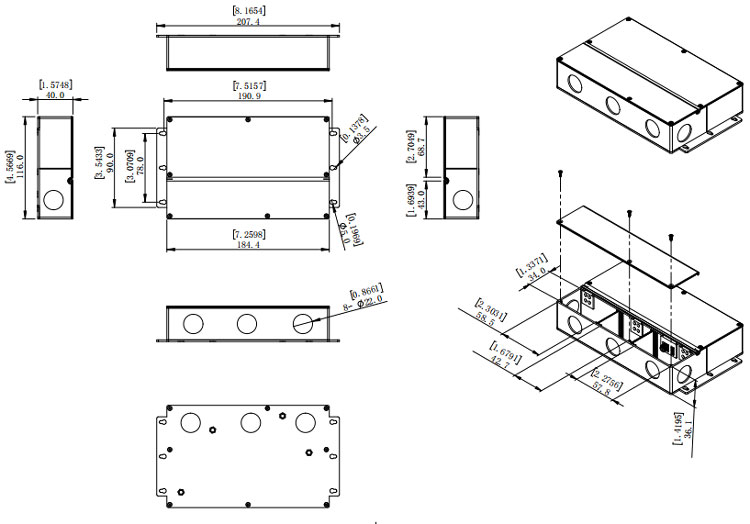

Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 3 |
| 13A | 5 | |
| 16A | 6 | |
| 20A | 7 | |
| 25A | 9 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
| 25A | 22 | |
Dimming Operation

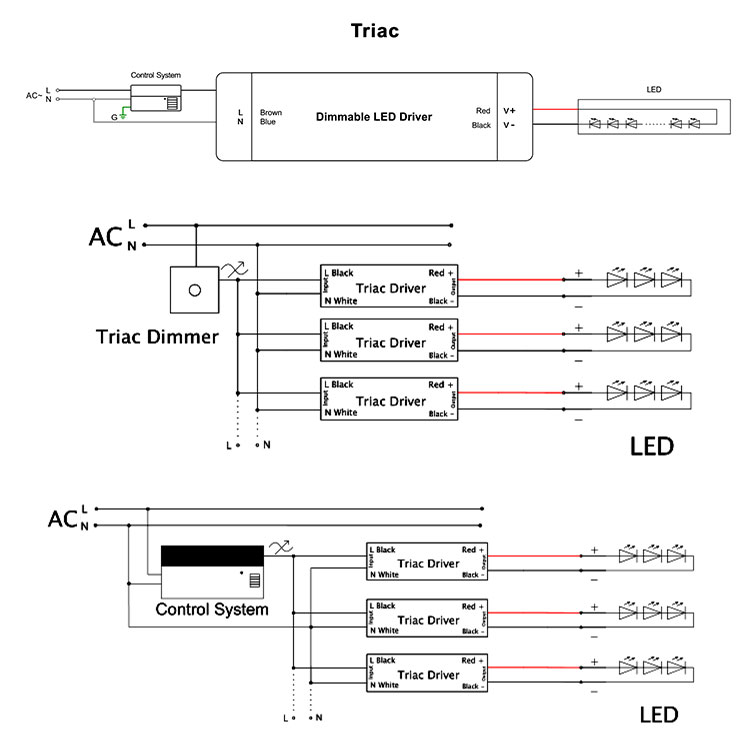

TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2. phase /Triac dimmer or lighting system.
3. Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4. Min. loading is about 10%.
5. Please try to use dimmers with power at least 1.5 times as the output power of the driver.

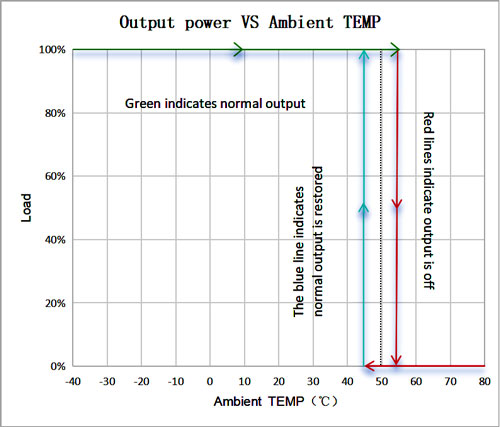

Derating Curve

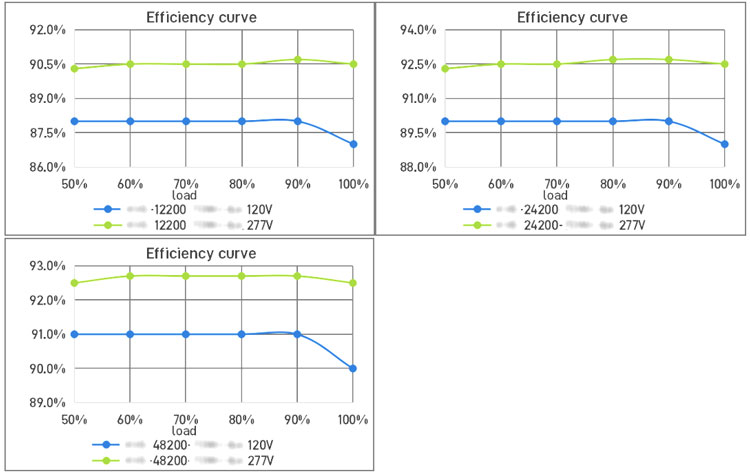

Efficiency Curve (efficiency vs output load)

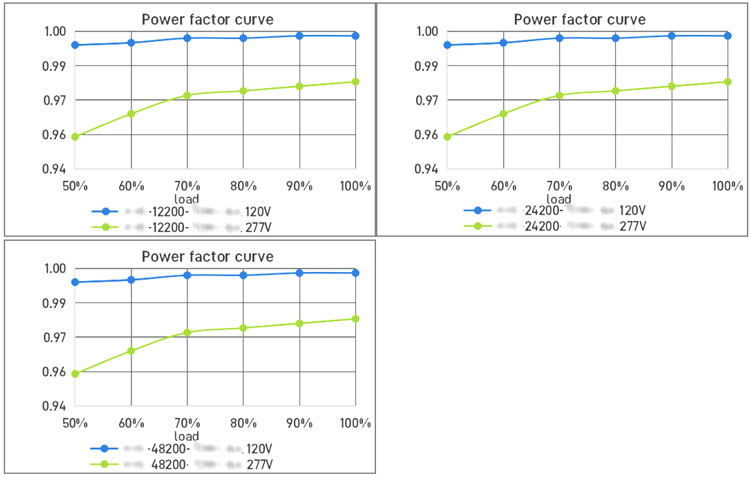

Power Factor Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life.
Related Products
triac dimmable led driver 200W integrated with junction box, universal input range 100-277vac. Suitable for indoor and outdoor dimming led lighting project installation. With 7 years warranty
Mode：SMT-012-300VTH intput voltage：100-277vac
Size : 278*108*46MM |
