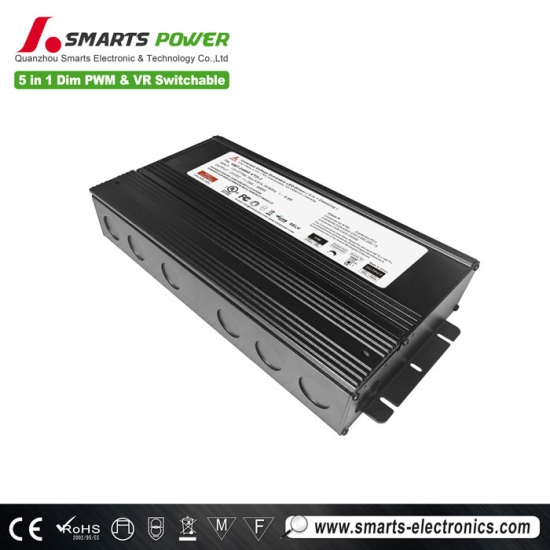

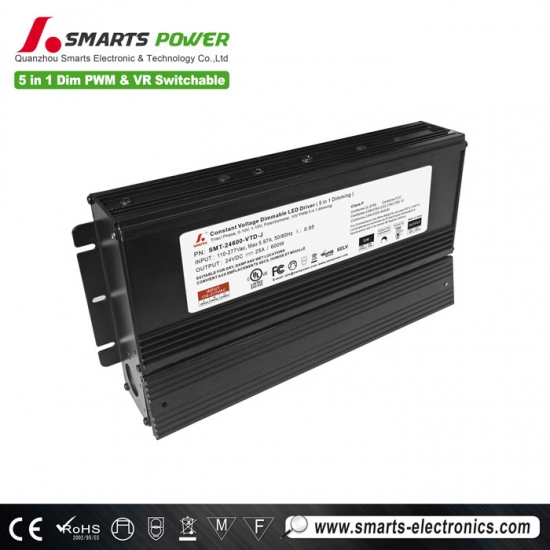

24v dc 600w triac & 0 10V dimmable constant voltage led driver with Junction Box
Smartspower new 5 in 1 dimmable led driver 600W universal input voltage range 100-277vac constant voltage output mode. Working efficiency up to 93.5%, built-in fine-tuning voltage function knob. With ultra-low load function, it can work perfectly under 10-100% load.
Specification
| Model | SMT-24600-VTD-J | SMT-36600-VTD-J | SMT-48600-VTD-J | |
| Certificate | CE / ROHS / Reach | |||
| Output | DC Voltage | 24V | 36V | 48V |
| (24V-25.5V adjust by knob) | (36V-38V adjust by knob) | (48V-50V adjust by knob) | ||
| Rated current | 25A | 16.67A | 12.5A | |
| Rated power | 600W | |||
| Voltage Tolerance | ±0.5% | |||
| Voltage Regulation | ≤0.5% | |||
| Load Regulation | ≤1% | |||
| Input | Voltage Range | 110-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor@ full load | ≥0.95 | |||
| THD(Typ.) @ full load | ≤10%@120VAC | |||
| Efficiency @ full load |
90.5%@120VAC 93.45%@277VAC |
90.5%@120VAC 93.45%@277VAC |
90.5%@120VAC 93.45%@277VAC |
|
| AC Current (Max.) | 6.0A | |||
| Inrush Current (Typ.) | 52A, 810us@50%Ipeak110VAC 76A, 148us@50%Ipeak277VAC | |||
| No-load power | <8W | |||
| Standby power | <0.5W | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13(US) | ||
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| EMC Emission | FCC 47 CFR Part 15, Subpart B; ANSI C63.4a-2017 (US) | |||
| Others | Net Weight | Kg | ||
| Dimension | 280*140.2*50.2mm(L*W*H) | |||
| Packing | /pcs /CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
 |
 |
 |
 |

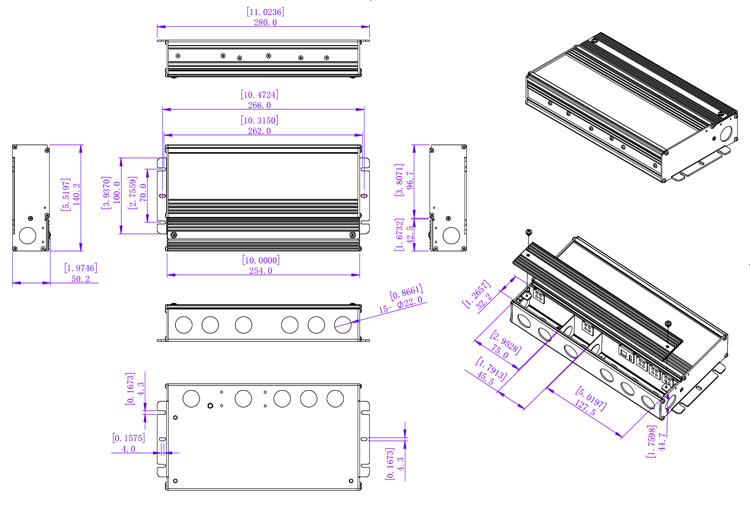

Mechanical Specification

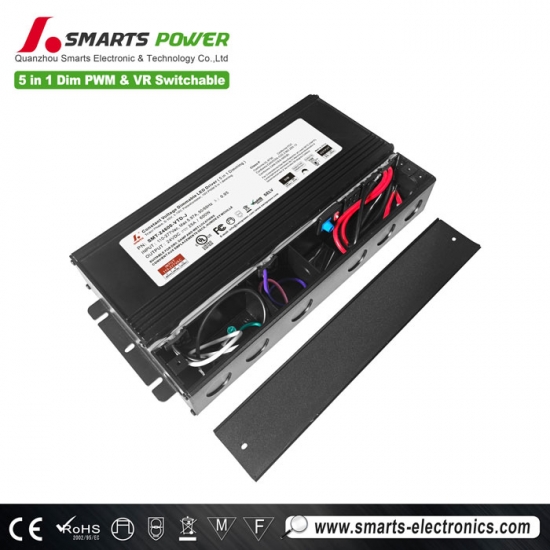

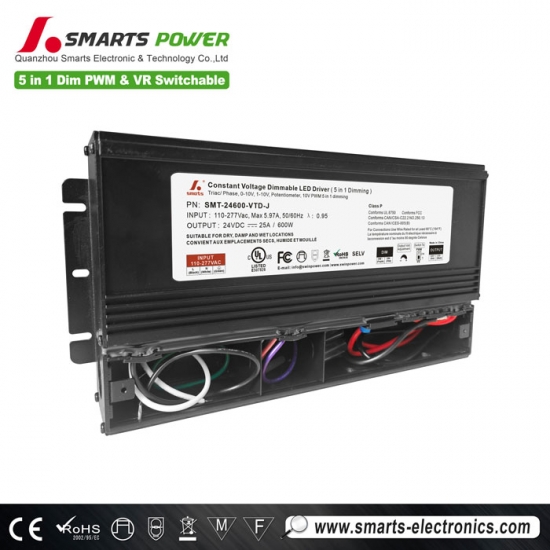

1. Input 3*18AWG: Black cable (L), White cable (N), Green cable (G).
2. Output 2*14AWG: Red cable(V+) connect to positive(+), Black cable(V-) connect to negative(-).
Three groups of 12V.Two groups of 24V/36V/48V.
3. Dimming wire 2*18AWG: Purple cable DIM (+) to 0/1-10V dimmer signal(+ ), Pink cable DIM (-) to 0/1-10V dimmer signal (-).
4. Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+”, or other incorrect connection.
5. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2.Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3.Min. loading is about 10%
4.Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products

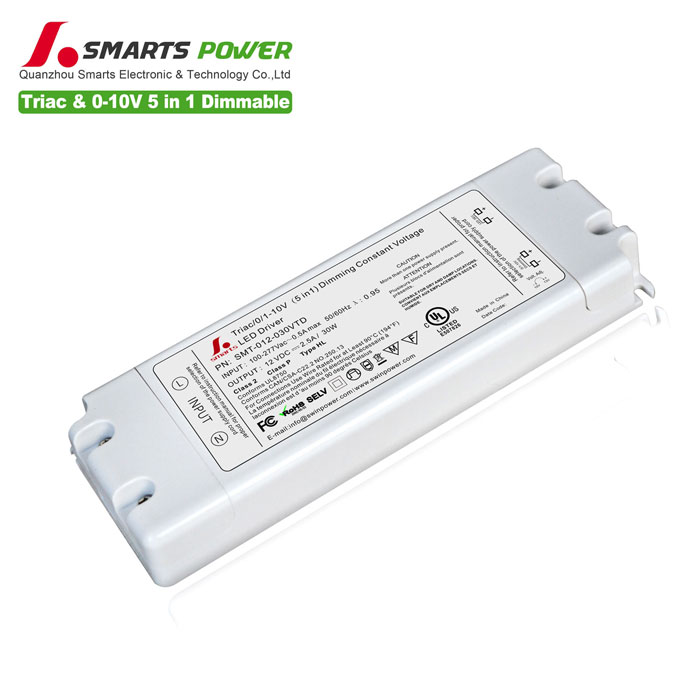

30w triac & 0 10v dimmable led driver, plastic shell design, waterproof level ip20. Constant voltage output, suitable for indoor small space led lighting project installation. With 7 years warranty
