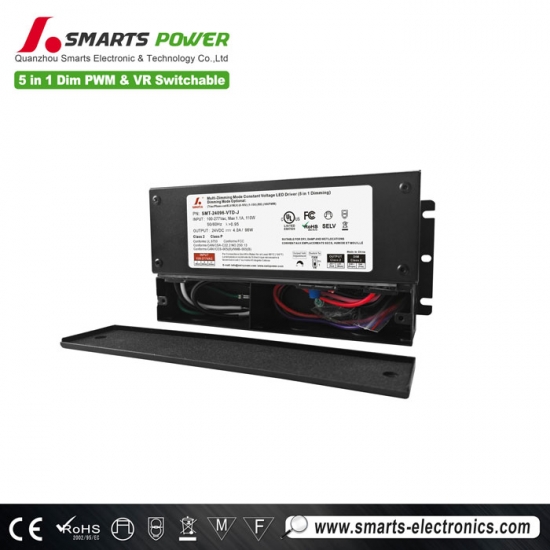

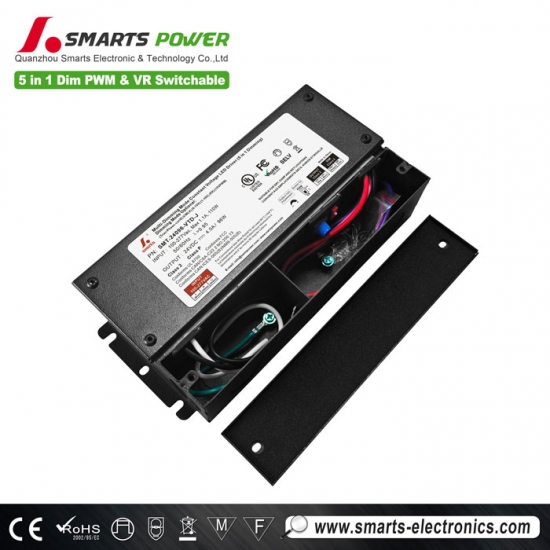

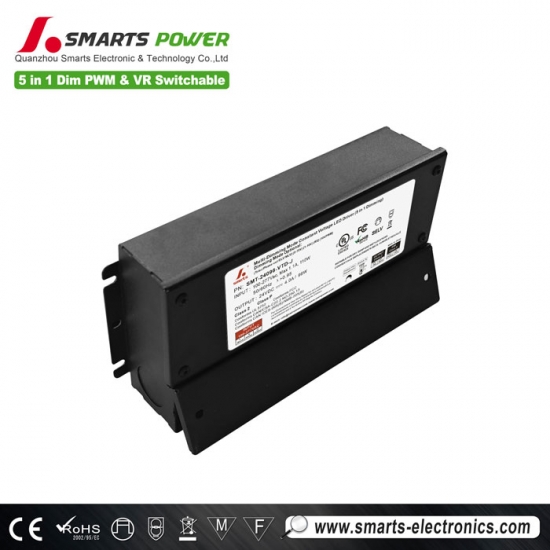

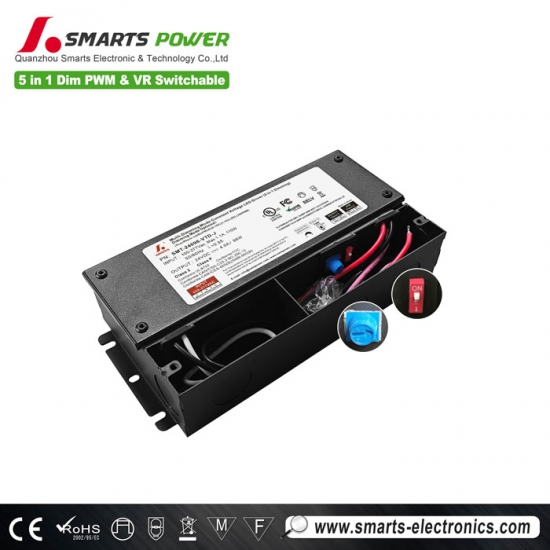

pwm output triac & 0 10v dimmable constant voltage 96W 24V led driver with junction box
This new triac & 0 10v dimmable led driver has a built-in fine-tuning voltage function knob. PWM output and buck output mode switching function. Compatible with most 100-722vac input voltage dimmers. With a 7-year warranty
Specification
| Model | SMT-24096-VTD-J | SMT-36096-VTD-J | SMT-48096-VTD-J | |
| Certificate | UL / FCC / Class 2 / Class P / SELV / CE / RoHs / REACH | |||
| Output | DC Voltage | 24V | 36V | 48V |
| Fine tune voltage range | 24-26V adjust by knob | 36-38V adjust by knob | 48-50V adjust by knob | |
| Voltage Tolerance | ±0.5V | |||
| Voltage Regulation | ≤0.5% | |||
| Rated current | 4A | 2.67A | 2A | |
| Rated power | 96W | |||
| Load Regulation | ≤3% | |||
| Dimming Mode | PWM & VR two modes for choice ON for PWM mode while 1 for VR mode | |||
| Power off till three seconds, then power-on for mode switch | ||||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor@ full load | ≥0.95 | |||
| THD(Typ.) @ full load | ≤20%@full load | |||

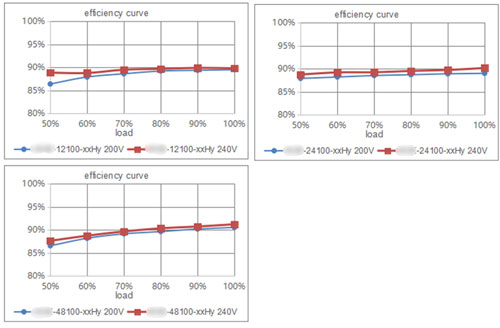

| Efficiency @ full load |
≥88%@120VAC ≥91.5%@277VAC |
≥86%@120VAC ≥89.5%@277VAC |
≥87%@120VAC ≥90.5%@277VAC |
|
| Standby power (Max.) | ≤0.5W | |||
| AC Current (Max.) | 1. 1A | |||
| Inrush Current (Typ.) | 51A, 208us@50%Ipeak @120VAC 118A, 452us@50%Ipeak @277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup or Locking mode, recovers automatically after fault condition is removed | ||
| Over Load | ≤120%,>120% Constant current (limited power) mode, recovers automatically after fault condition is removed | |||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | |||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃, 10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750 (US) | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:1.88KVAC (US) | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| EMC Emission | FCC Part 15, Subpart B (US) | |||
| lightning surge | L to L: 2KV L to G: 4KV | |||
| Stroboscopic | Strobe test standard | IEEE 1789 | ||
| Others | Net Weight | ** Kg | ||
| Dimension | 188*95.4*42.7mm (L*W*H) | |||
| Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃of ambient temperature 2. Tolerance: includes set up tolerance and load regulation . |
|||
 |
 |
 |
 |

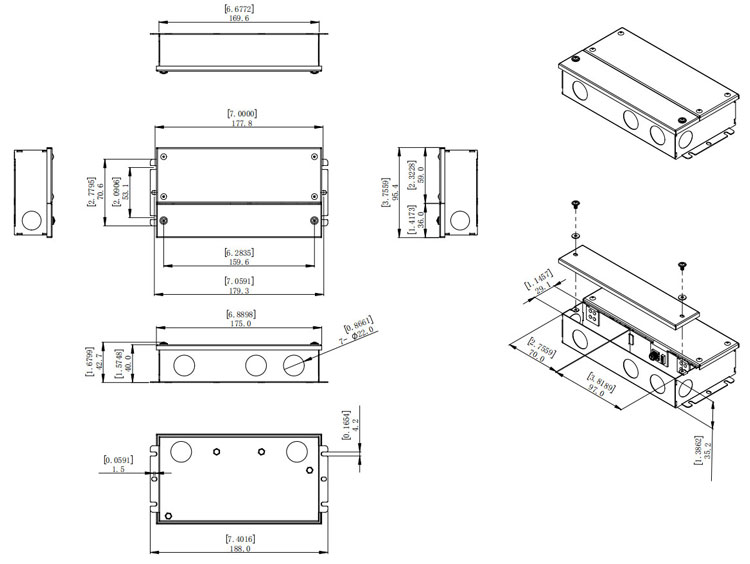

Mechanical Specification
1. Input UL1015 0.824mm²cable 3*18AWG, Black and White to be connected to AC (L) and (N), Green to be connected to (G).
2. Output UL1015 0.824mm² cable 2*18AWG, Red (+) to LED Positive side (+), Black (-) to LED Negative side (-).
3. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation

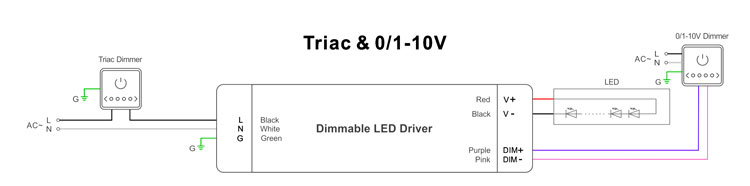

Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

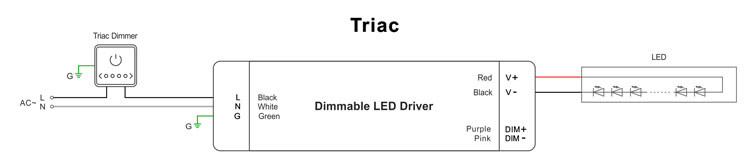

Using one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2.Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3.Min. loading is about 10%
4.Please try to use dimmers with power at least 2 times as the output power of the driver.

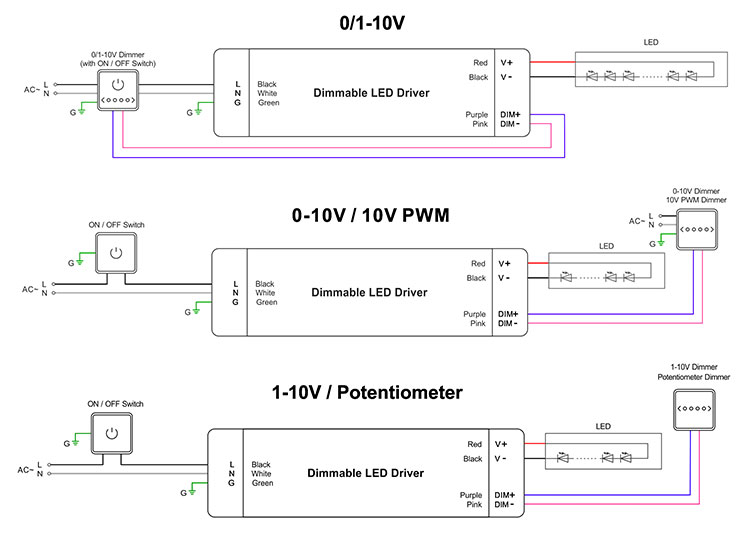

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming

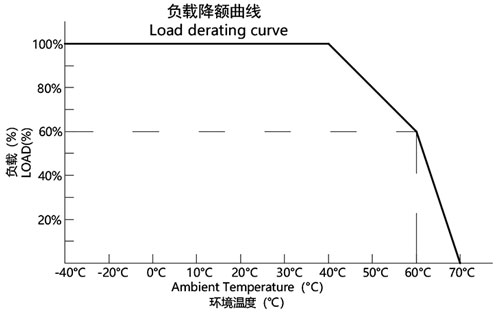

Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
