5 in 1 triac 0 10v constant voltage dimmable led driver 12v 120w

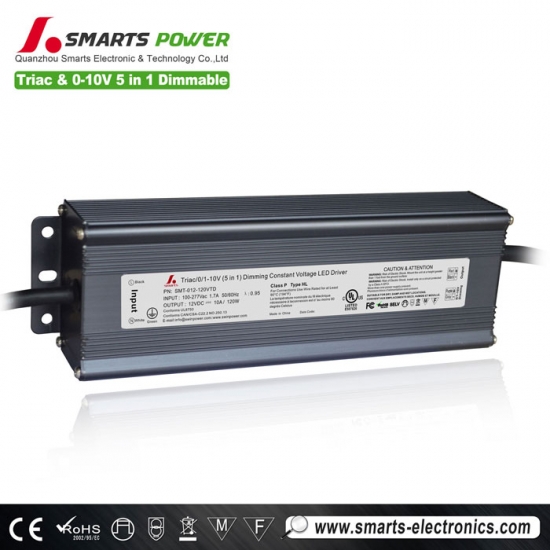

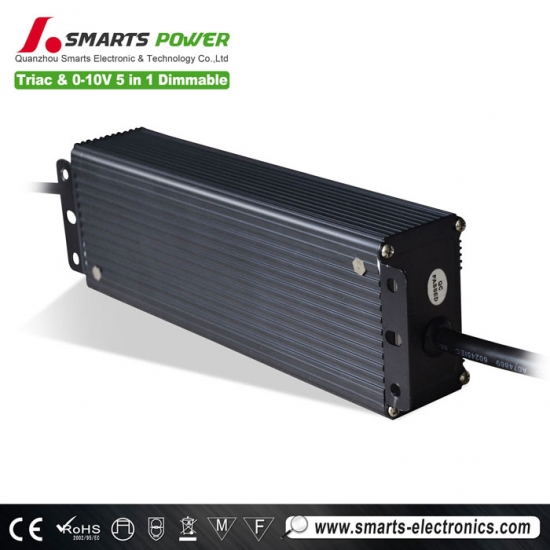

SMT-012-120VTD is triac dimmable led driver combine with 0-10v dimming. It has widely input voltage range 110-277Vac, which is suitable to be used in North America and European markets. It is working well with signify's lighting.
Product parameters
|
model |
SMT-012-120VTD |
SMT-024-120VTD |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Voltage Regulation |
±0.5% |
|
|
|
Rated current |
10.00A |
5.0A |
|
|
Rated power |
120W |
120W |
|
|
Load Regulation |
±2 % |
±1 % |
|
Input |
Voltage Range |
100~277VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
THD(Typ.) @full load |
<20%@120VAC &277VAC |
|
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.96@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency(Typ.) |
82%@120VAC 83%@277VAC |
82%@120VAC 84%@277VAC |
|
|
AC Current（Typ.） |
1.7A |
|
|
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC |
|
|
|
Leakage current |
<0.5mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 , CAN/CSA-C22.2 No.250.13 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|
|
Others |
Net Weight |
1.1Kg |
|
|
|
Size |
230*70*43mm（L*W*H） |
|
|
|
packing |
Carton size: 340*275*170mm , 10PCS/ctn |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

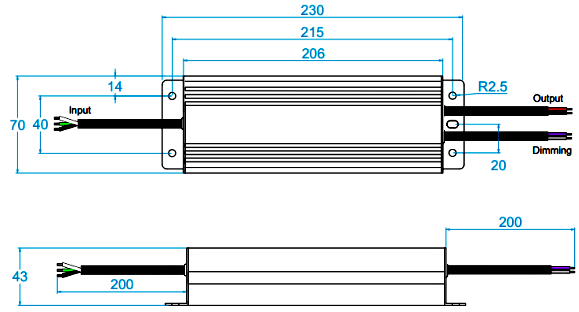

Mechanical Specification
Connecting solution:
Compatible Lighting Type
Our 5 in 1 dimming led driver is working well with American Lighting, Inc’s flexible LED strip, LED Cabinet Light...
Related Products

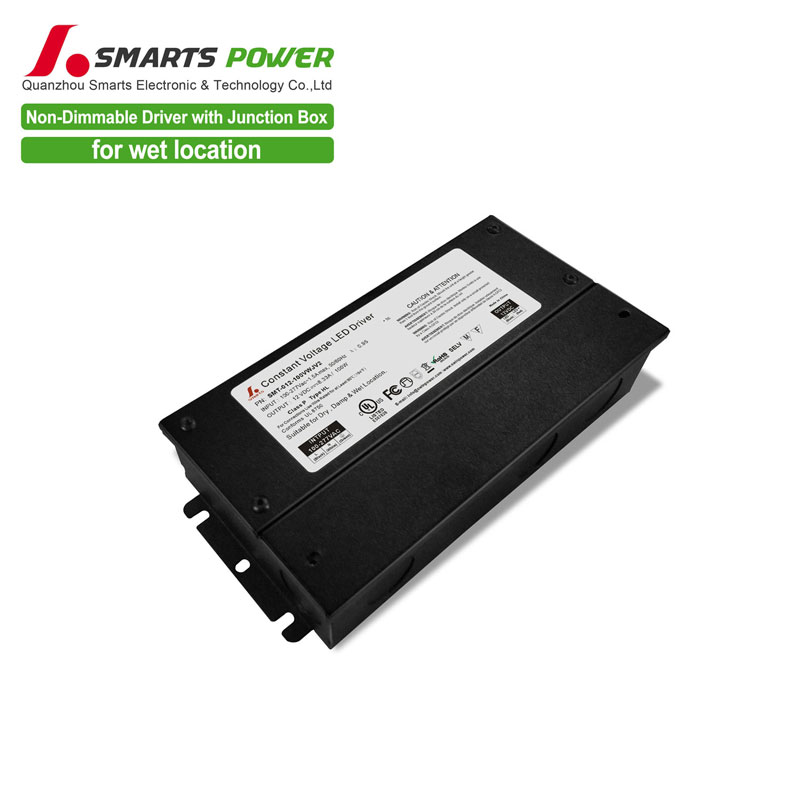

It is non-dimmable led driver 12v 100w with UL certificate. It is led driver with junction box integrated which is 4X Nema rate.
Mode：SMT-012-100VWJV2 |
