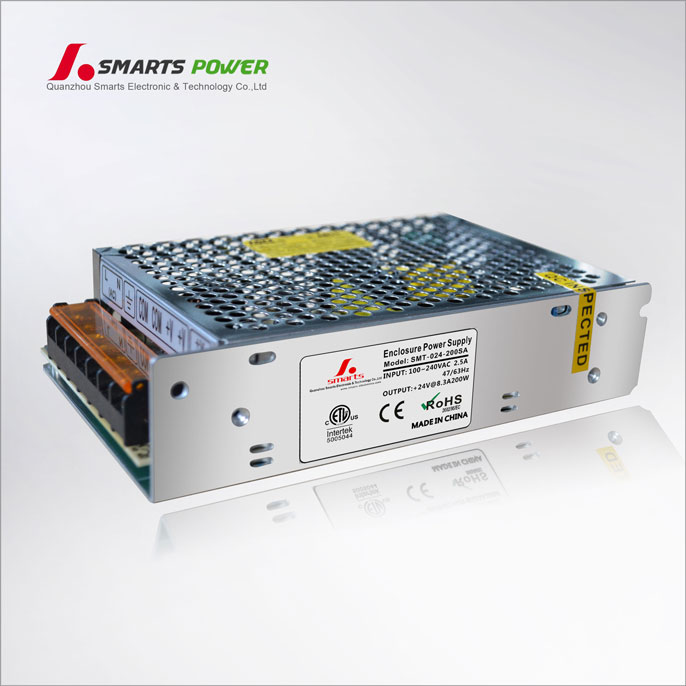

switching mode power supply 200w 24v power supply is Installed with EMI filter , minimum wave, With short circuit and overload protection, Competitived price and high reliability, 105 °C Output capacitor.
Features of 200w 24v power supply
- Competitived price and high reliability
- 105 °C Output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effect
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
- 2 years warranty
parameter of switching mode power supply
|
Model |
SMT-005-200SA |
SMT-012- 200SA |
SMT-024- 200SA |
SMT-036- 200SA |
SMT-048- 200SA |
|
|
output |
DC voltage |
5V |
12V |
24V |
36V |
48V |
|
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
|
|
Rated current |
40A |
16.67A |
8.33A |
5.55A |
4.17A |
|
|
Current range |
0~40A |
0~16.67A |
0~8.33A |
0~5.55A |
0~4.17A |
|
|
Rated power |
200W |
200W |
200W |
200W |
200W |
|
|
Ripple&noise |
100mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
|
|
DCvoltage ADJ.range |
± 10% |
±10% |
±10% |
±10% |
±10% |
|
|
input |
Voltage range |
100~240Vdc |
||||
|
frequency |
47~63HZ |
|||||
|
AC current |
3.2A/115VAC,1.6A/230VAC |
|||||
|
efficiency |
83% |
83% |
83% |
83% |
83% |
|
|
Inrush current |
Cold start current 18A/115VAC,36A/230VAC |
|||||
|
Leakage current |
< 1mA/240VAC |
|||||
|
protection |
overload |
Rated output power115%~150% start over load protection |
||||
|
protection type:cutoff output,recovery after restart power |
||||||
|
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
|
|
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||||
|
----- |
----- |
|||||
|
----- |
||||||
|
environment |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
||||
|
Storagetemp,humidity |
-20°C~+85°C,10%~95%RH non-condensing |
|||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
|||||
|
safety |
Withstand voltage |
I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|||||
FAQ;
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future.
