Non-dimmable LED Driver

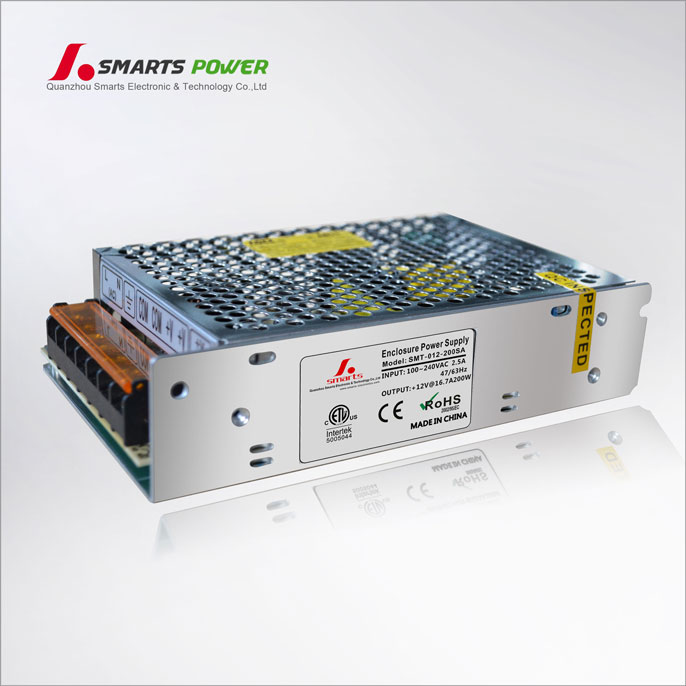

2 years warranty smps 12v 200w 15a led switching power supply

2 years warranty smps 12v 200w 15a led switching power supply is single output, 100-240Vac 12v dc 200w ip20 constant voltage working mode led switching power supply.
  • item no.:

    SMT-012-200SA
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $12
  • Input Voltage:

    100-240vac
  • Output Voltage:

    12V
  • Output Current:

    16.67A
  • Working Mode:

    constant voltage
  • Certification:

    CE ETL ROHS
  • Warranty:

    2 years
inquiry now download
product details

2 years warranty smps 12v 200w 15a led switching power supply


2 years warranty smps 12v 200w 15a led switching power supply is single output, 100-240Vac 12v dc 200w ip20 constant voltage working mode led switching power supply.


Features of 12v 15a switch power supply

  1. 105 °C Output capacitor
  2. AC input power suitable for the world
  3. High efficiency and low operation temperature
  4. Soft-start current can reduce the AC input impact effect
  5. With short-circuit and overload protection
  6. Compact size, light weight
  7. 100% full-load burn-in test
  8. Installed with EMI filter, minimum wave
  9. 2 years warranty



parameter of 12v 200w power supply

Model

SMT-005-200SA

SMT-012-   200SA

SMT-024-  200SA

SMT-036-  200SA

SMT-048- 200SA







output

DC voltage

5V

12V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated current

40A

16.67A

8.33A

5.55A

4.17A

Current range

0~40A

0~16.67A

0~8.33A

0~5.55A

0~4.17A

Rated power

200W

200W

200W

200W

200W

Ripple&noise

100mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

± 10%

±10%

±10%

±10%

±10%





input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

3.2A/115VAC,1.6A/230VAC

efficiency

83%

83%

83%

83%

83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC



protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

switching power supply


Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??



1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.



2).  Most of our products are approved with ETL/CE/Rohs approval.



3).  We give 3 years warranty



4).  We accept trial orders begining..



5). We  have an area of 2000 square meters factory,  about 300-500 production staff. ..
