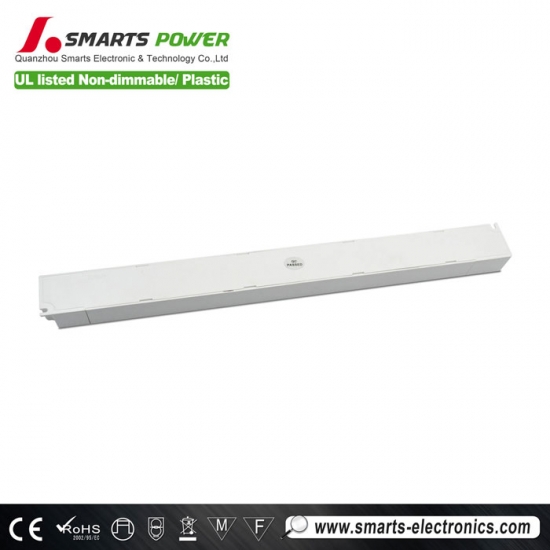

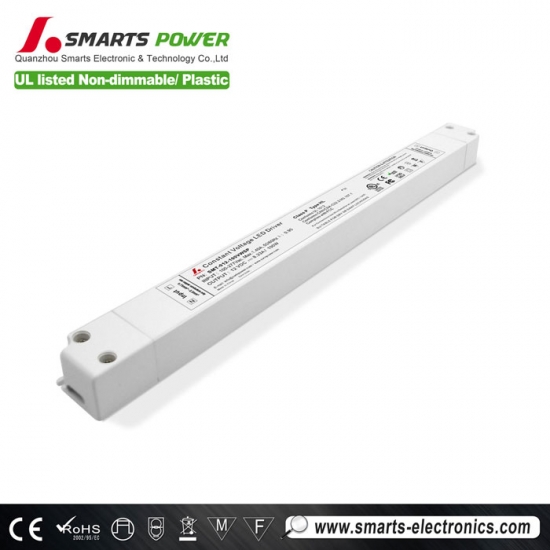

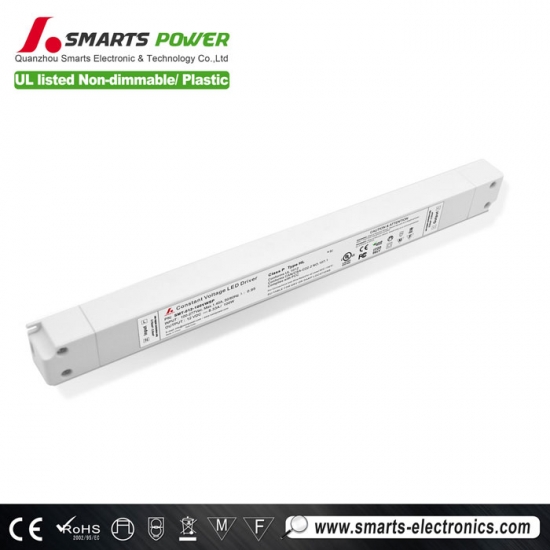

slim led driver 12 volt 100w high power led lamp driver
SMT-012-100VWSP is a 100w led driver for led lamp. The output power is 100 watt and the main thing is that it is a long strip type power supply.
Features
·Output constant voltage
·Input voltage range 100-277VAC
·UL/cUL listed, Class 2, Class P, CE, ROHS approval
·Built-in PFC function / Efficiency > 84% / PF> 0.99
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry environment installations
·Cooling by free air convection
·IP20 type for dry location
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model |
SMT-012-100VWSP |
SMT-024-096VWSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.99@120VAC; 0.98@230VAC; 0.95@277VAC |
||
|
THD(Typ.)@ full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
||
|
Full Load Efficiency（Typ.） |
83%@120VAC; 85%@230VAC; 85%@ 277VAC |
||
|
AC Current（Typ.） |
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC |
||
|
Inrush Current（Typ.） |
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100M Ohms/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥60%load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
|
Others |
Weight |
0.40Kg |
|
|
Size |
330*30*22mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
|
Label |
|
||
 |
 |
 |
 |
 |
|

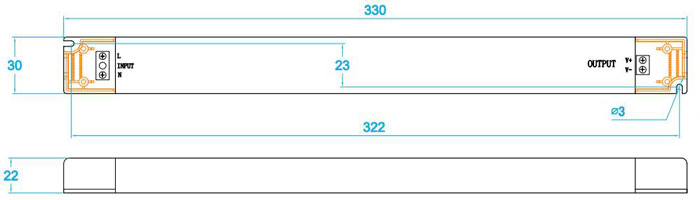

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive +）,Black is（Negative -）

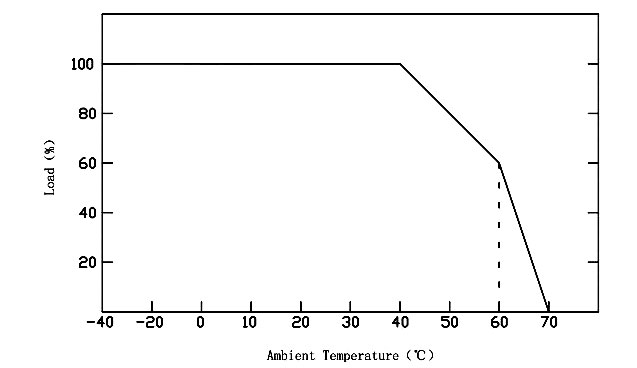

Derating Curve
