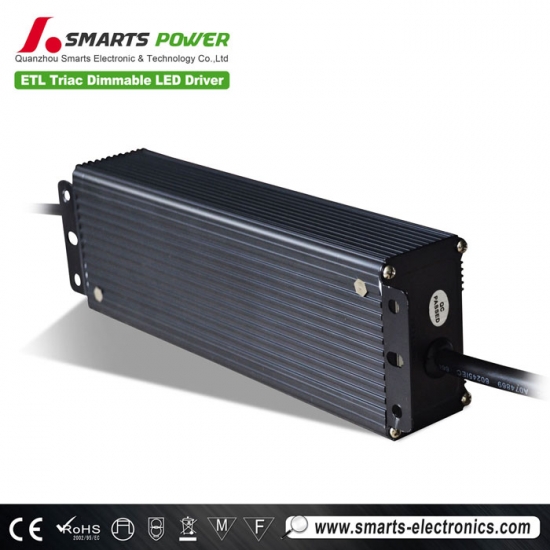

100w 200w triac dimmable led driver waterproof ip67 power supply 12v
|
Model |
SMT-012-200VT |
SMT-024-200VT |
SMT-036-200VT |
SMT-048-200VT |
|
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|
Voltage Tolerance |
±0.5V |
||||
|
Rated current |
16.67A |
8.33A |
5.56A |
4.16A |
|
|
Rated power |
200W |
||||
|
Input |
Voltage Range |
180~240VAC / 90~135VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor ( Typ.) |
> 0.73/110VAC, >0.76/220VAC |
||||
|
Full Load Efficiency(Typ.) |
>85% |
>86% |
>86% |
>87% |
|
|
AC Current(Typ.) |
1.78A |
1.76A |
1.76A .A |
1.74A |
|
|
Leakage current |
<0.70mA/110VAC, <0.65mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over load |
≤120% |
||||
|
Over Current |
≤1.4*I out |
||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||
|
Working Humidity |
20~90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X, Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥50%load) |
||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV) |
||||
|
Others |
Weight |
1.8Kg |
|||
|
Size |
226.5*77.5*47mm(L*W*H) |
||||
|
packaging |
440*295*145mm / 8 pieces in one carton |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 220VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
||||

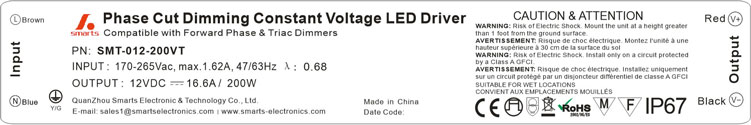

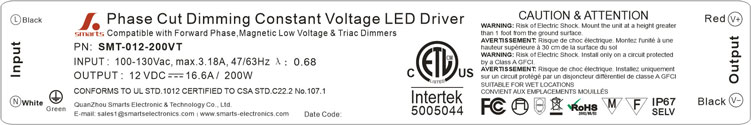

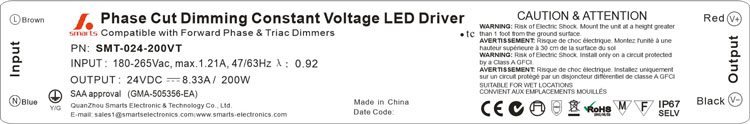

| Label |
|
||||
 |
 |
 |
 |
Feature
- Output constant voltage
- Universal AC input/ : 90~135VAC/ 170-265VAC
- High efficiency : >85%
- Power Factor > 0.7
- Protections:short circuit/over loading/over current
- Full protection aluminum housing/ IP67
- Easy installation
- Cooling by free air convection.
- Work with leading edge and trailing edge triac dim.
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for LEDs
Mechanical Specification
- Input Brown with AC (L),Blue with AC (N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero
Derating Curve
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Connecting Diagram
