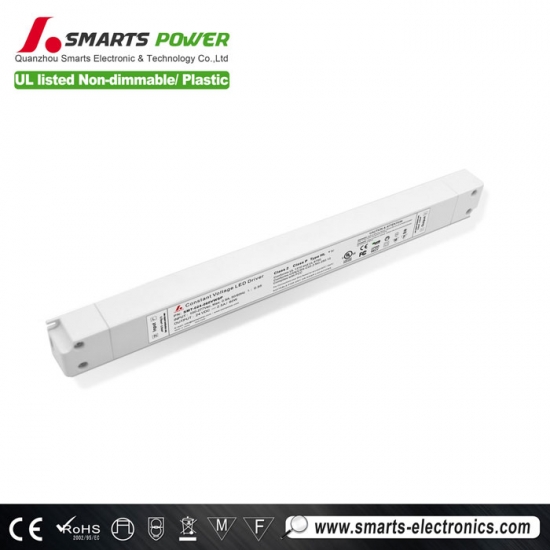

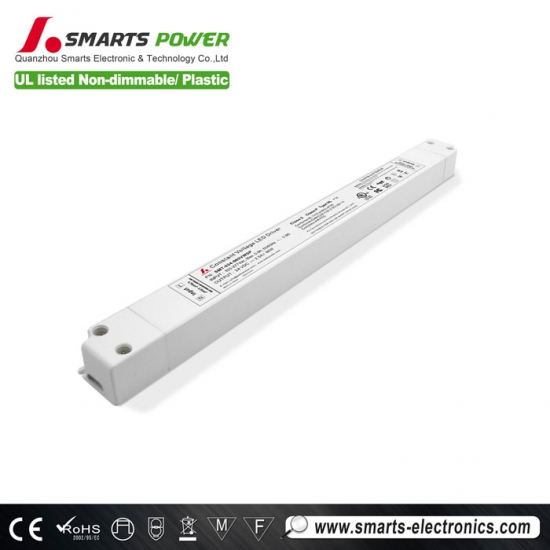

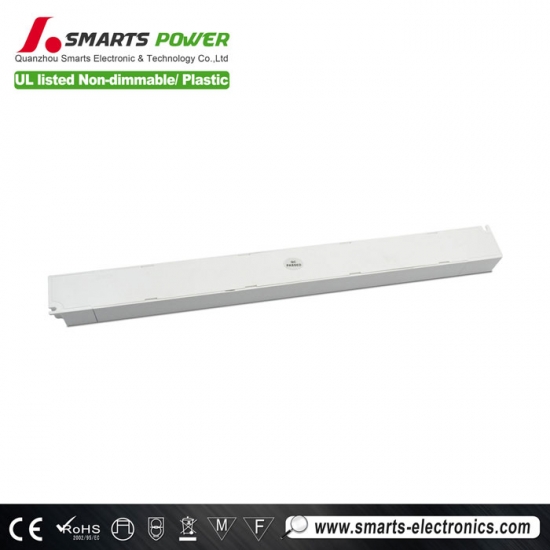

SMARTS SMT-024-060VWSP is 24vdc constant voltage led driver is class 2 rated. Encased in a low profile plastic enclosure to enable easy installation makes it the perfect choice for under cabinet lights, tape lights and various LED fixtures installations.
Features
- Output constant voltage
-
Input voltage range 100-277VAC
-
UL, cUL listed, Class 2, Class P, CE, ROHS approval
-
Built-in PFC function / Efficiency > 86% / PF> 0.99
-
Protections:short circuit/over voltage/over heat
-
IP20 design for indoor dry environment installations
-
Cooling by free air convection
-
Full protection aluminum housing, for dry, damp, wet location
-
Suitable for LED lighting and moving sign applications
-
Compliance to worldwide safety regulations for lighting
-
7 years warranty
Specification
model
SMT-012-060VWSP
SMT-024-060VWSP
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
5.0Amp
2.5Amp
Rated power
60W
60W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V
Full Load Efficiency（Typ.）
82%@120VAC ;84%@230VA ; 84%@ 277VAC
84%@120VAC;86%@230VAC; 86%@ 277VAC
AC Current（Typ.）
0.75A/100VAC / 0.2A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.5mA/110VAC; ﹤0.2mA/277VAC
label
 |
 |
 |
 |
 |
|
Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive side +）,Black is（Negitive side -）

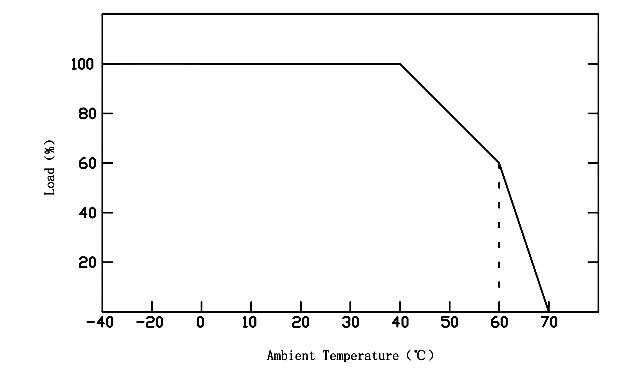

Derating Curve
