277v ac to 36v dc 96w led constant voltage mini power supply

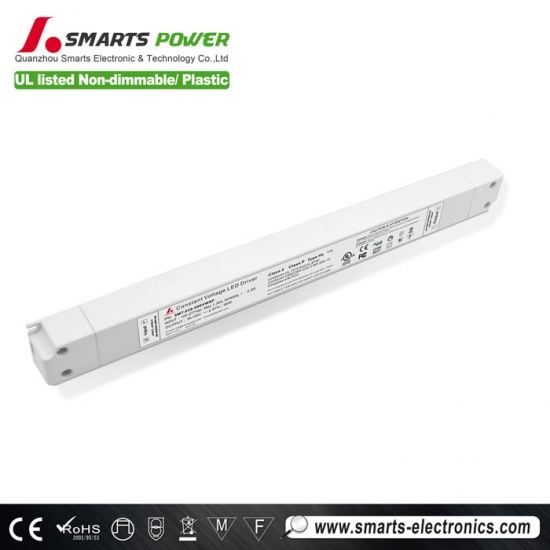

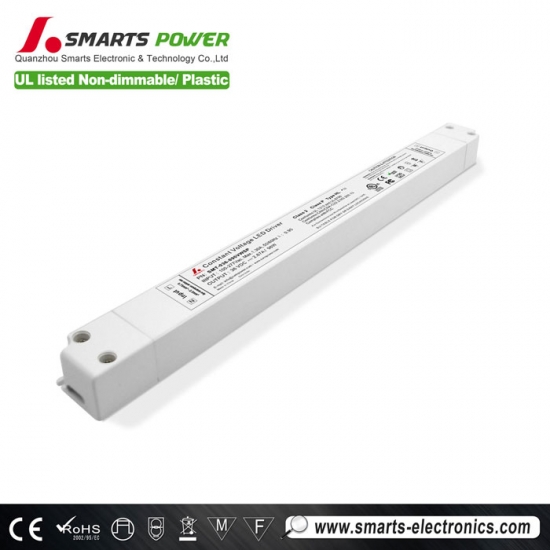

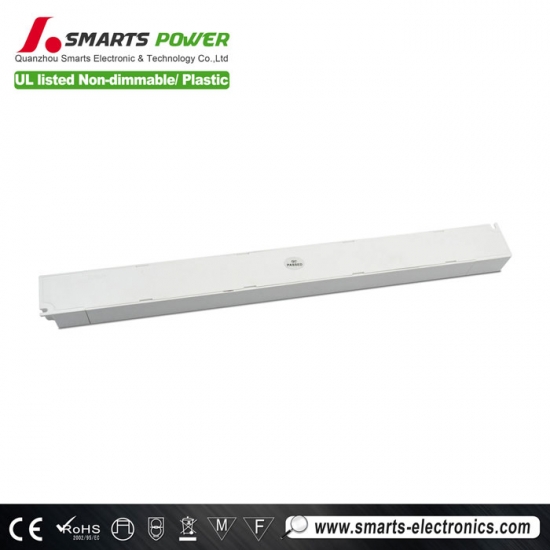

This 36v 96w plastic case led driver has got UL listed that is very popular in the US market. The size of this 96w led driver is 330*30*22mm (L*W*H) that you can see is ultra thin. IP20 type for dry location, suitable for LED lighting and moving sign applications.
Features
- Output constant voltage
- Input voltage range 100-277VAC
- UL/cUL listed, Class 2, Class P, CE, ROHS approval
-
Built-in PFC function / Efficiency > 84% / PF> 0.99
-
Protections:short circuit/over voltage/over heat
-
7 years warranty
|
model |
SMT-012-100VWSP |
SMT-024-096VWSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.99@120VAC; 0.98@230VAC; 0.95@277VAC |
||
|
THD(Typ.)@ full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
||
|
Full Load Efficiency（Typ.） |
83%@120VAC; 85%@230VAC; 85%@ 277VAC |
||
|
AC Current（Typ.） |
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC |
||
|
Inrush Current（Typ.） |
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100M Ohms/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥60%load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
|
Others |
Weight |
0.40Kg |
|
|
Size |
330*30*22mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
|
Label |
 |
||
 |
 |
 |
 |
 |
|

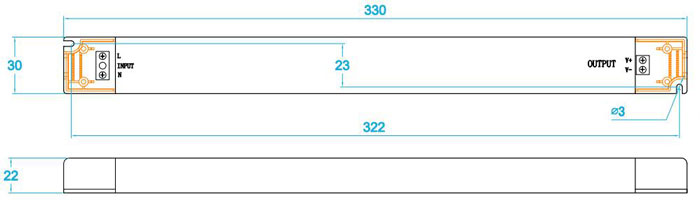

Mechanical Specification

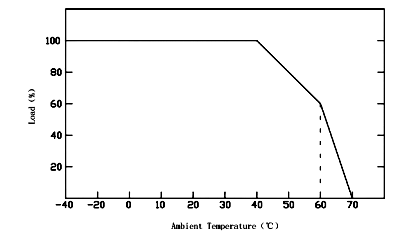

Derating Curve

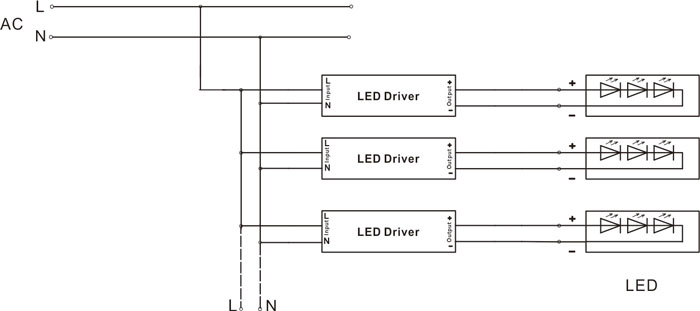

Connecting Diagram
