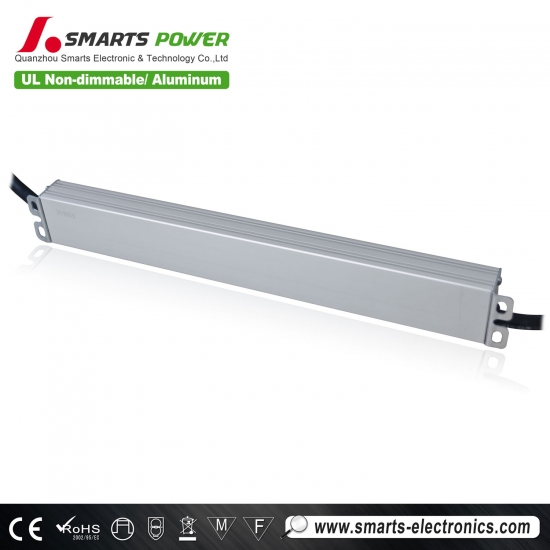

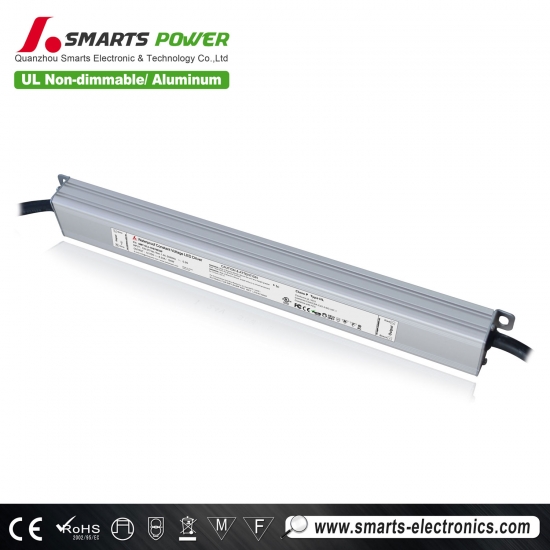

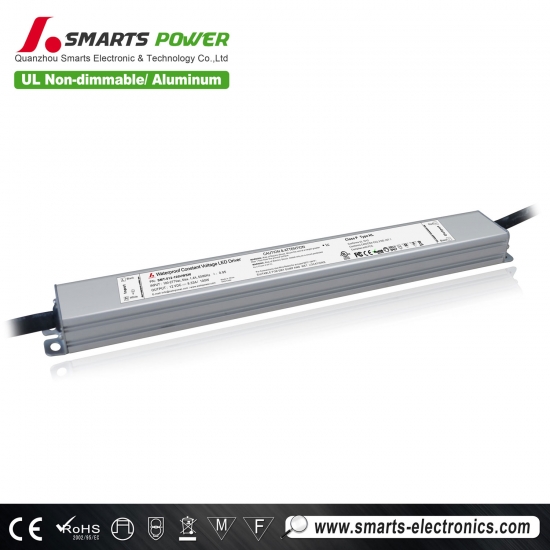

UL FCC 120 277 Volt ac dc 12V 100W CV waterproof slim led driver
SMT-012-100VWSW are 100W slim led driver for some LED strip project with narrow space for driver. UL, cUL listed high PF>0.9, high efficiency>88% with 7 years warranty.
Detailed specification:
model
SMT-012-100VWSW
SMT-024-096VWSW
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
8.33Amp
4Amp
Rated power
100W
96W (class 2)
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
THD(Typ.)@ full load
<15%@120VAC <20%@230VAC <20%@277VAC
Full Load Efficiency（Typ.）
83%@120VAC; 85%@230VAC; 85%@ 277VAC
AC Current（Typ.）
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P: 3.75KVAC
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.55Kg
Size

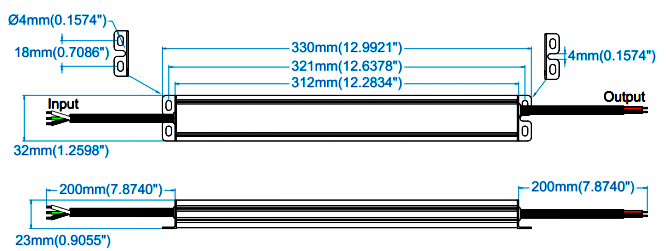

330*32*23mm (L*W*H)
packing
50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Mechanical Specification for dimmable LED transformer:
There are 30w, 36w, 60w 100w in both 12vdc and 24v are avaliable in this series. all with ultra slim size desin.
