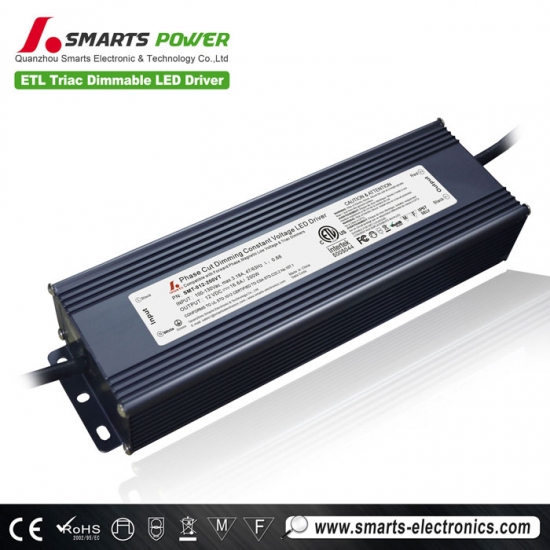

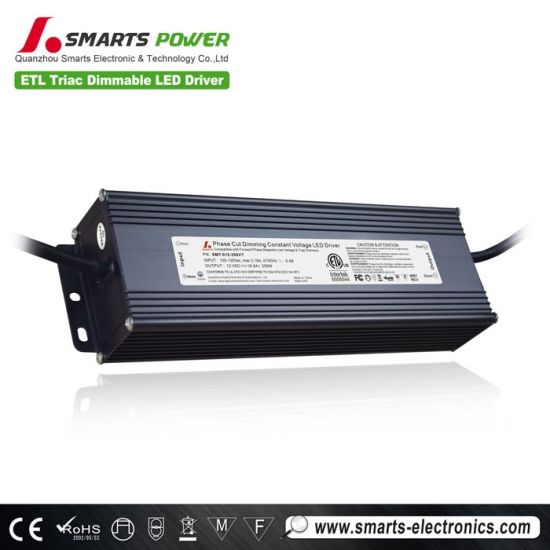

PF 0.9 ETL dimmable 12v 200w LED strip light Driver Constant Voltage Transformer
Feature
|
Model |
SMT-012-200VT |
SMT-024-200VT |
SMT-036-200VT |
SMT-048-200VT |
|
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|
Voltage Tolerance |
±0.5V |
||||
|
Rated current |
16.67A |
8.33A |
5.56A |
4.16A |
|
|
Rated power |
200W |
||||
|
Input |
Voltage Range |
180~240VAC / 90~135VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor ( Typ.) |
> 0.73/110VAC, >0.76/220VAC |
||||
|
Full Load Efficiency(Typ.) |
>85% |
>86% |
>86% |
>87% |
|
|
AC Current(Typ.) |
1.78A |
1.76A |
1.76A .A |
1.74A |
|
|
Leakage current |
<0.70mA/110VAC, <0.65mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over load |
≤120% |
||||
|
Over Current |
≤1.4*I out |
||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||
|
Working Humidity |
20~90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥50%load) |
||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV) |
||||
|
Others |
Weight |
1.8Kg |
|||
|
Size |
226.5*77.5*47mm(L*W*H) |
||||
|
packaging |
440*295*145mm / 8 pieces in one carton |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 220VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
||||
| label |
|
||||
 |
 |
 |
 |
- Input Brown with AC (L),Blue with AC (N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero
Derating Curve
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Connecting Diagram
