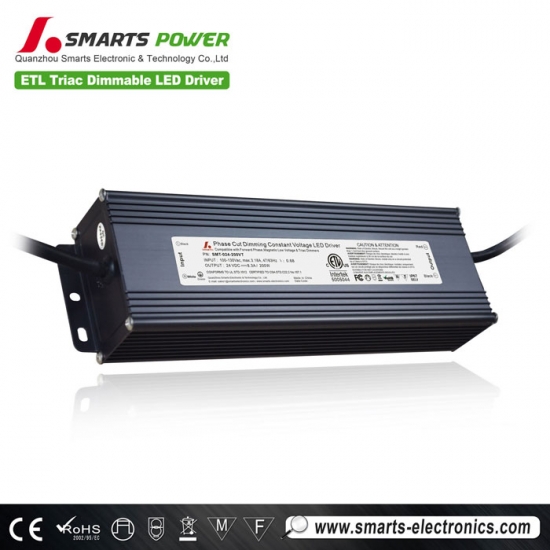

CE ETL FCC listed 24vdc 200w dimmable led power supply
Specification
Wattage: 200 Watt
Voltage / Frequency: 100~130VAC / ~50/60Hz
Input Current Full Load: 3.20A
Output Full Load: 24VDC
Power / Max Load: 200W / 8.30A
Short circuit and over current protection.
Certifications: ETL Listed 5005044.
Dimmable: Yes (forward phase and reverse phase dimming)
Fanless design, cooling by free air convection
Minimum Load: Load at least 60% labeled load (dimmable installations only)
No minimum load
Built-in Junction Box
Dimming opeation for dimmable led power supply
- Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero
Mechanical Specification of dc power supply
- Input Brown with AC (L),Blue with AC (N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Derating Curve of dc power supply
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Model
SMT-012-200VT
SMT-024-200VT
SMT-036-200VT
SMT-048-200VT
Output
DC Voltage
12V
24V
36V
48V
Voltage Tolerance
±0.5V
Rated current
16.67A
8.33A
5.56A
4.16A
Rated power
200W
Input
Voltage Range
170～265VAC / 100~130VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
> 0.77/110VAC, >0.8/220VAC
Full Load
Efficiency（Typ.）
>85%
>85%
>85%
>85%
AC Current（Typ.）
1.78A
1.76A
1.76A
.A
1.74A
Leakage current
﹤0.70mA/110VAC, <0.65mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over load
≤120%
Over Current
≤1.4*I out
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥50%load)
EMC IMMUNITY
EN61000-4-2,3,4,5,6,11（Surge 4KV）
Others
Weight
1.8Kg
Size
256*78*47mm（L*W*H）
packaging
440*295*145mm / 8 pieces in one carton
Notes
1. All parameters NOT specially mentioned are measured at 110V & 220VAC input , rated load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.

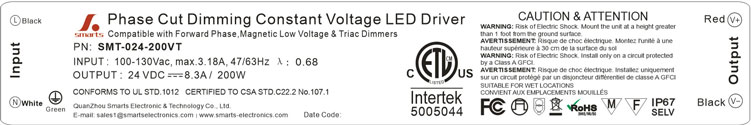

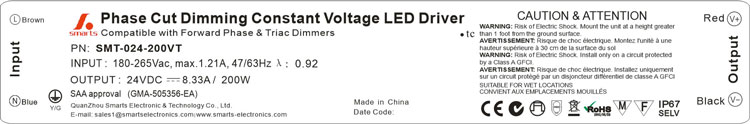

Label
