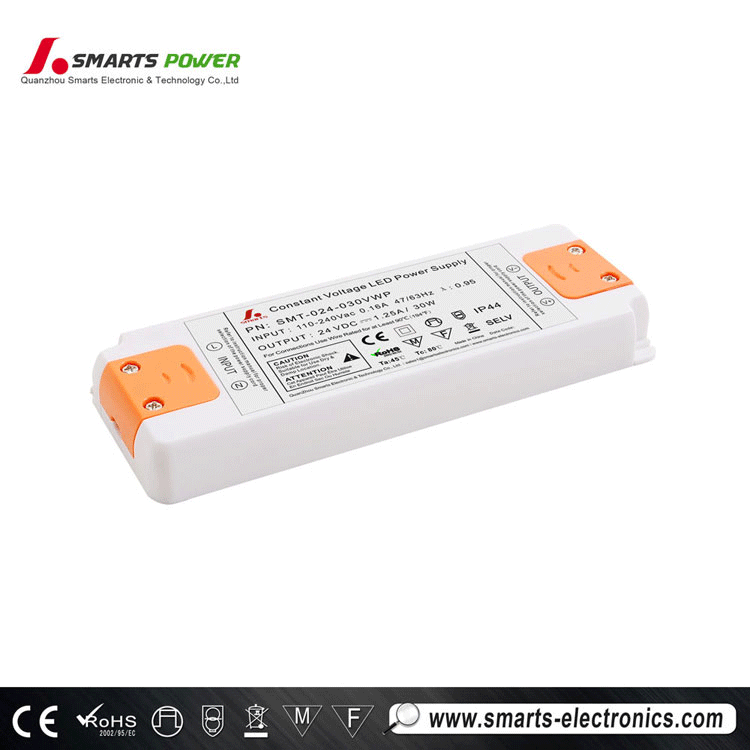

220vac 24v 30w led strip power supply
220 VAC to low voltage led power supply 24v, small size which makes these units lighter, more compact and easier to install in confined areas.
|
Feature for 30w led power supply:
|
Details for led power supply 24v:
|
|
● IP20 design for indoor installations ● Protections:Short circuit/Overload/Over temperature ● Cooling by free air convection ● 100% full load burn-in test ● Suitable for LED lighting ● Products through CE,RoHS Certification ● 2 years warranty / 3 years warranty with High PF>0.95 |
|
|
Product video
|

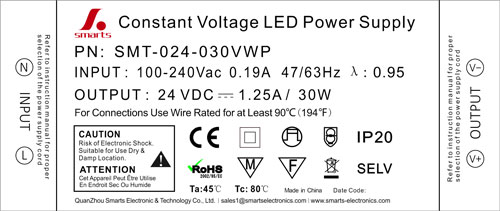

Label
|
 |
Specifications for led power supply 24v:
| MODEL | SMT-012-030VWP | SMT-024-030VWP |
|
|
|
| OUTPUT | DC VOLTAGE | 12V | 24V |
|
|
| RATED CURRENT | 1.5Amp | 1.25Amp |
|
|
|
| VOLTAGE RANGE |
|
|
|
|
|
| RATED POWER | 30Watt | 30Watt |
|
|
|
| RIPPLE&NOISE(max) | 300mV | 300mV |
|
|
|
| VOLTAGE TOLERANCE | ±5% | ±5% |
|
|
|
| LINE REGULATION | ±1% | ±1% |
|
|
|
| LOAD REGULATION | ±2% | ±2% |
|
|
|
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
|
|
| FREQUENCY RANGE | 47-63Hz | 47-63Hz |
|
|
|
| POWER FACTOR(Typ.) |
|
|
|
|
|
| EFFICIENCY(Typ.) | ﹥83% | ﹥84% |
|
|
|
| AC CURRENT(Typ.) | 0.31A/110VAC, 0.17A/220VAC |
|
|
||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
Noted forled power supply 24v
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Mechanical Specification for led power supply 24v:
