Non-dimmable LED Driver

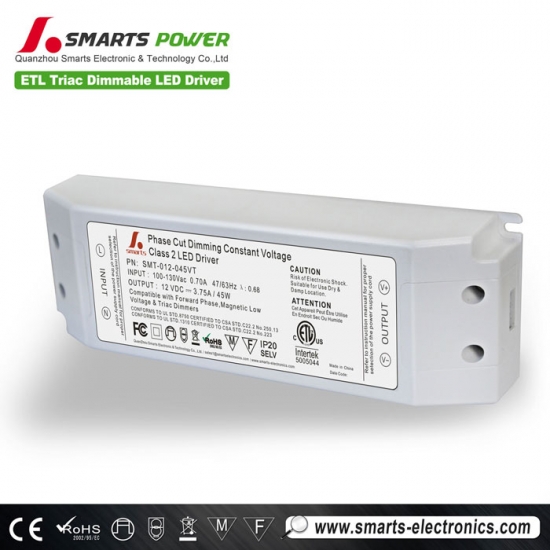

input 110v 12v 45w triac dimmable led panel light driver

input 110v triac dimmable led driver; high stability led power supply; constant voltage transformer
  • item no.:

    SMT-012-045VT
  • brand:

    SMARTS
  • Input Voltage:

    100-265V90-135VAC/170~265VAC
  • Output Voltage:

    12VDC
  • Output Current:

    3.75A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

input 110v 12v 45w triac dimmable led panel light driver


 Features

  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Protections:Short circuit/Overload/Over temperature
  6. Cooling by free air convection
  7. 100% full load burn-in test.
  8. Suitable for LED lighting


 Product parameters


model

SMT-012-045VT

SMT-024-045VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

3.75A

1.87A

Rated power

45W (class 2)

45W (class 2)

Input

Voltage Range

90-135VAC/170265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.94/120V,PF≧0.95/220V, PF≧0.93/265V

Full Load EfficiencyTyp.

>84%

>84%

AC CurrentTyp.

0.34A/120VAC  0.27A/220VAC  0.24A/265VAC

Leakage current

0.25mA/120V/230VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over voltage

140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1. EN-61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level surge4KV

Others

Weight

0.32Kg

Size

180*60*34mmL*W*H

packing

309*279*176mm

Notes

1. All parameters NOT specially mentioned are measured at 120VAC,220VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.Tolerance:includes set us tolerance,line regulation and load regulation .

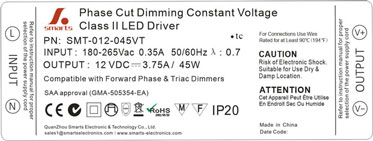

  Label   triac dimmable led panel light driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


 Specifications

  1. Efficiency > 85%
  2. PF>0.90
  3. working mode: constant voltage
  4. dimming mode: traic dimmable
  5. Case material: plastic housing
  6. produt cord:connecting terminal(IP20) / 18AWG*20CM
  7. 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Safety


  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Applicatio


  1. Indoor LED illuminating lights
  2. LED Neon, LED urban Decoration
  3. LED Lighting Advertising,LED Display
  4. Safety Protection Apparatus
  5. Telecommunications, Networks
  6. Vehicle Lights, Controller Panels
