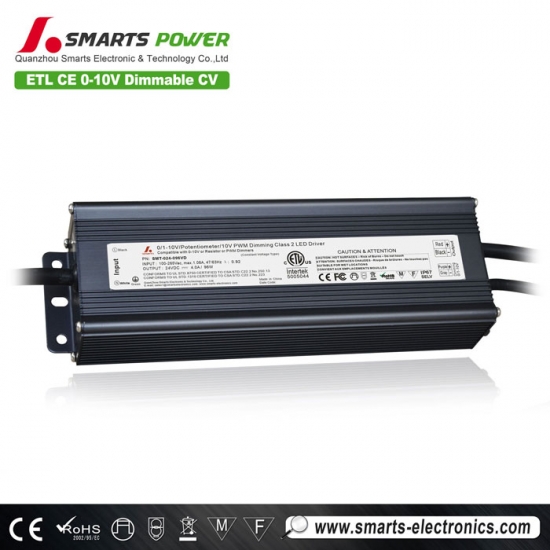

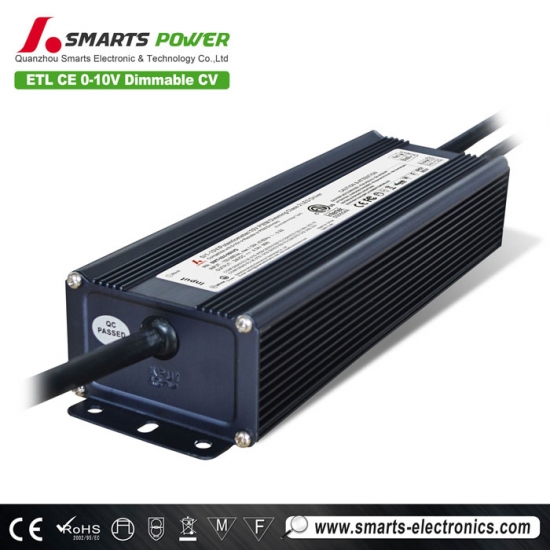

industrial 277v ac to 24v dc 0-10v dimmable led power supply 100w
Features
- High efficiency,save energy ,protected environment
- Constant voltage design with high accuracy.
- International wide input voltage.
- output voltage 12v/24vselectable.
- Wattage: 20w-200w.
- High efficiency, save energy, protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC.
- Assure LED stability long lift and light efficiency by constant voltage.
- Cooling by free air convection.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
- Suitable for LED lighting
Specification
|
Model |
SMT-012-096VD |
SMT-024-096VD |
|||
|
Output |
DC Voltage |
12V |
24V |
||
|
Voltage Accuracy |
±0.5V |
||||
|
Rated current |
0-8.0A |
0-4.0A |
|||
|
Rated power |
96W |
96W |
|||
|
Ripple&noise Max. |
200mVp-p 350mVp-p 350mVp-p |
250mVp-p 400mVp-p |
|||
|
Input |
Voltage Range |
100～130VAC, 170~265VAC |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor ( Typ.） |
>0.90 |
>0.90 |
|||
|
Full Load Efficiency（Typ.） |
>88% 86% 87% |
>88% 88% |
|||
|
AC Current（Typ.） |
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/265VAC |
||||
|
Leakage current |
﹤0.25mA/110V,220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over voltage |
≦280VAC |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40～+60℃ |
|||
|
Working Humidity |
20～95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-2-13.IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level （surge4KV） |
||||
|
Others |
Weight |
1.32Kg |
|||
|
Size |
230*70*47mm（L*W*H） |
||||
|
packing |
329*279*176mm/10pcs |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||

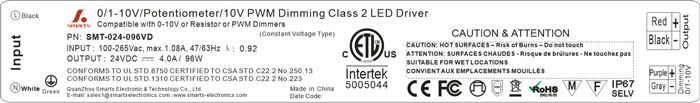

| Label |
 |
||||
 |
 |
 |
 |
Applications
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| ce listed dimming 220vac to 12/24vdc led transformer | |||||||
| 1.3Kg/pcs | 15kg/ctn | 10pcs | 329*279*176mm | ||||
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe
- Price is negotiable if you have large quantity demand
- 100% QC inspection Before Shipping
- Best Quality & Best Service with Competitive price
- Shipping will be the most economical for you and freight cost is informed in advance
- consideration.decision for the shipping terms will be made according to your requirements
- We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
- OEM design & OEM packing welcome
- Samples will be ready within 7 working days
Q1. What's type power supply do you have?
A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI
dimmable led drivers, enclosure power suppliers, power adapters.
Q2. What's shipping mode can we choose?
A2:1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q3. What's the MOQ?
A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during
the warranty period, but we need pictures or video to prove the defective comes
from our quality problem.
Q5. How about the protection of product?
A5: Most of our products have protection of short-circuit, overload, over voltage,
over current and reserve polarity. About the specific product, please consult
our sales stuff.
Q6. How about the transportation?
A6: For small order,express will be best.And for bulk order,sea ship way is best but
take much time. For urgent orders,we suggest via air to airport plus our ship partner
send to your door. We will cooperate with your choice.
Q7. What's the Payment do you have?
A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via
T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the
near future.
