Non-dimmable LED Driver

ce/ETL/rohs certificate 220v/110v ac to 24v/12v dc 120w electronic transformer

ETL dimmable led transformer; 0-10v constant voltage led transformer: 120w electronic transformer

  • item no.:

    SMT-024-120VD
  • lead time:

    about 7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-130VAC,170-265VAC
  • Output Voltage:

    24VDC
  • Output Current:

    5A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

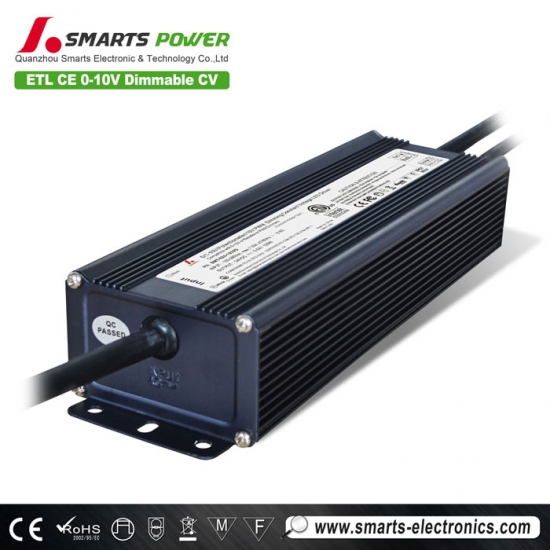

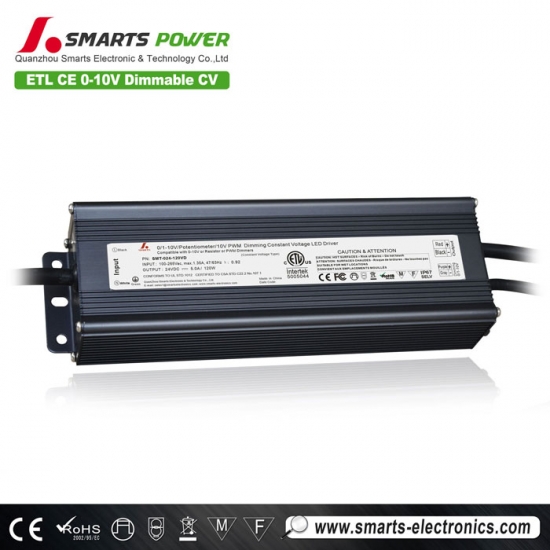

ce/ETL/rohs certificate 220v/110v ac to 24v/12v dc 120w electronic transformer

 Product parameters


Model

SMT-012-120VD

SMT-024-120VD

SMT-036-120VD

Output

DC Voltage

12V

24V

36V

Voltage Accuracy

±0.5V

Rated current

0-1.0A

0-5.0A

0-3.33A

Rated power

120W

120W

120W

Ripple&noise Max.

200mVp-p

350mVp-p

350mVp-p

250mVp-p

400mVp-p

290mVp-p



Input

Voltage Range

100-130VAC170-265VAC



Frequency Range

4763HZ



Power Factor ( Typ.

>0.90@110V ,220VAC

>0.90@110V,220V

Full Load EfficiencyTyp.

>88%

86%

87%

>88%

88%

AC CurrentTyp.

1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/265VAC

Leakage current

0.25mA/110V,220VAC



Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is

removed

Over voltage

315VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13. IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level surge4KV

Others

Weight

1.32Kg

Size

230*68.5*43mmL*W*H

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

    0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

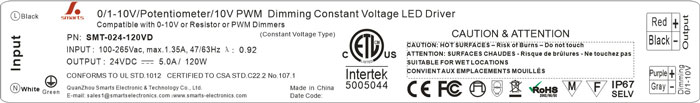

  Label   120w electronic transformer
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

 Specifications

  • RippleI & Noise (max.) : 150mVp-p
  • Voltage Tolerance : ±5%
  • Line Regulation : ±1%
  • Load Regulation : ±2%
  • Case material: Aluminum housing
  • Waterproof rate:  IP67
  • Produt cord:connecting terminal(IP20) / 18AWG*20CM
  • CE,ROHS approval
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting
  • Brand electrotronic components.
  • ROHS material.


 Environment


  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

 We have 7 kinds of led drivers or led power supply


Constant Voltage LED Driver;
Constant Current LED Driver;
Triac CC&CV Dimmable LED Driver
0-10v  CC&CV Dimmable LED Driver
DALI CC&CV Dimmable LED Driver
Power Adapter
Switching Power Supply


 Our led drivers are widely used for


Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks


Vehicle Lights, Controller Panels




 What Service we can supply??


  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applications, let us know freely.

 Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.


Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
